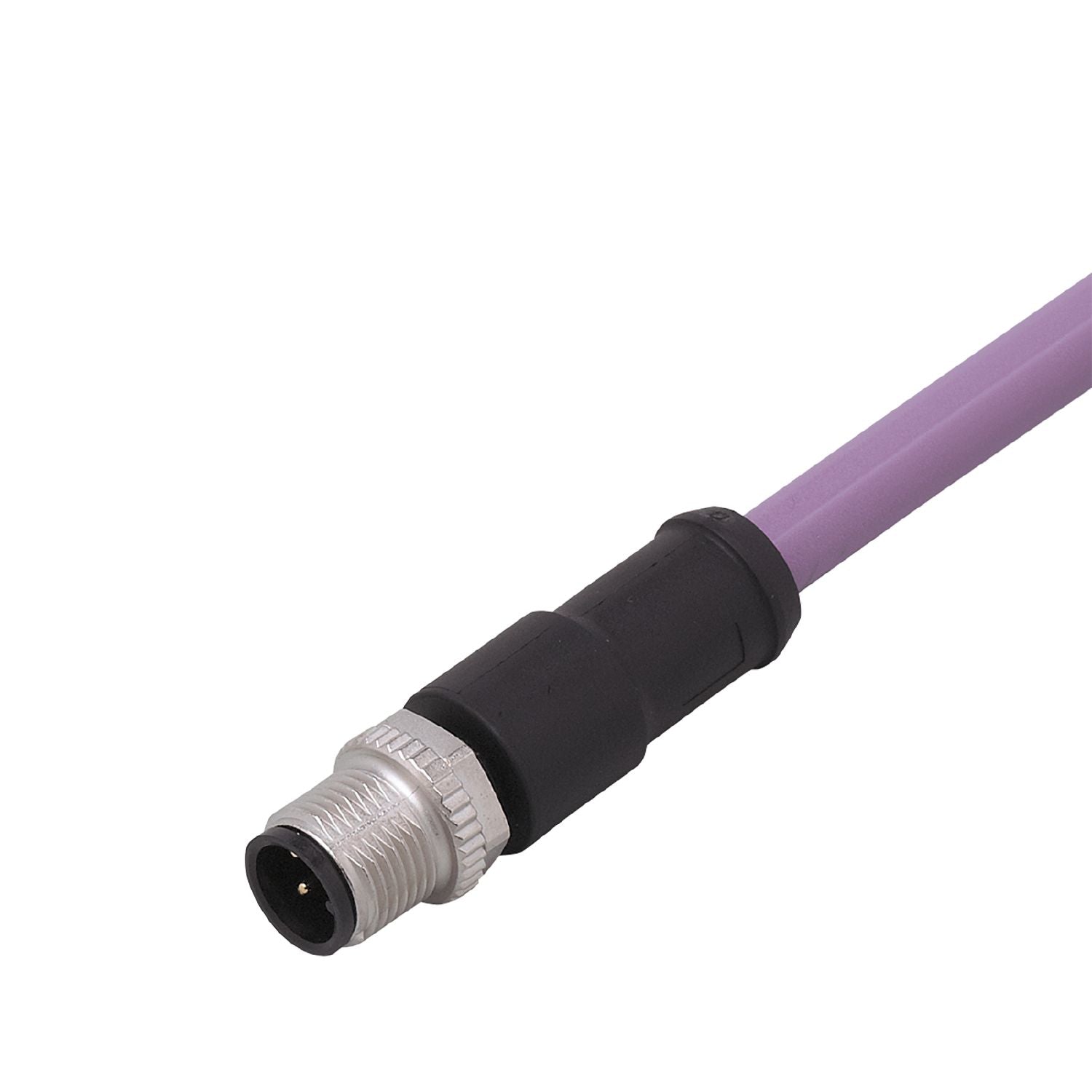

IFM E11598 - Connecting cable with plug ASTGH050MSA0002C02

Reliable connection technology for CAN bus participants.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Good electromagnetic compatibility thanks to shielded cable.
Suited for use in mobile machines

Special feature	Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
Application	CAN bus

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-20...80
Storage temperature [°C]	-40...80
Protection	IP 68

Weight [g]	167.8
Dimensions [mm]	14.5 x 14.5 x 48.5
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter bending radius for fixed installation min. 5 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 1 Mio.

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PUR, Halogen-free, lilac, Ø 6.8 mm, shielded; RD / BK: 2 x 0.25 mm² (19 x Ø 0.13 mm ) + WH / BU: 2 x 0.34 mm² (19 x Ø 0.16 mm ) + screen: 1 x 0.34 mm² (19 x Ø 0.16 mm )

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.5 Nm
