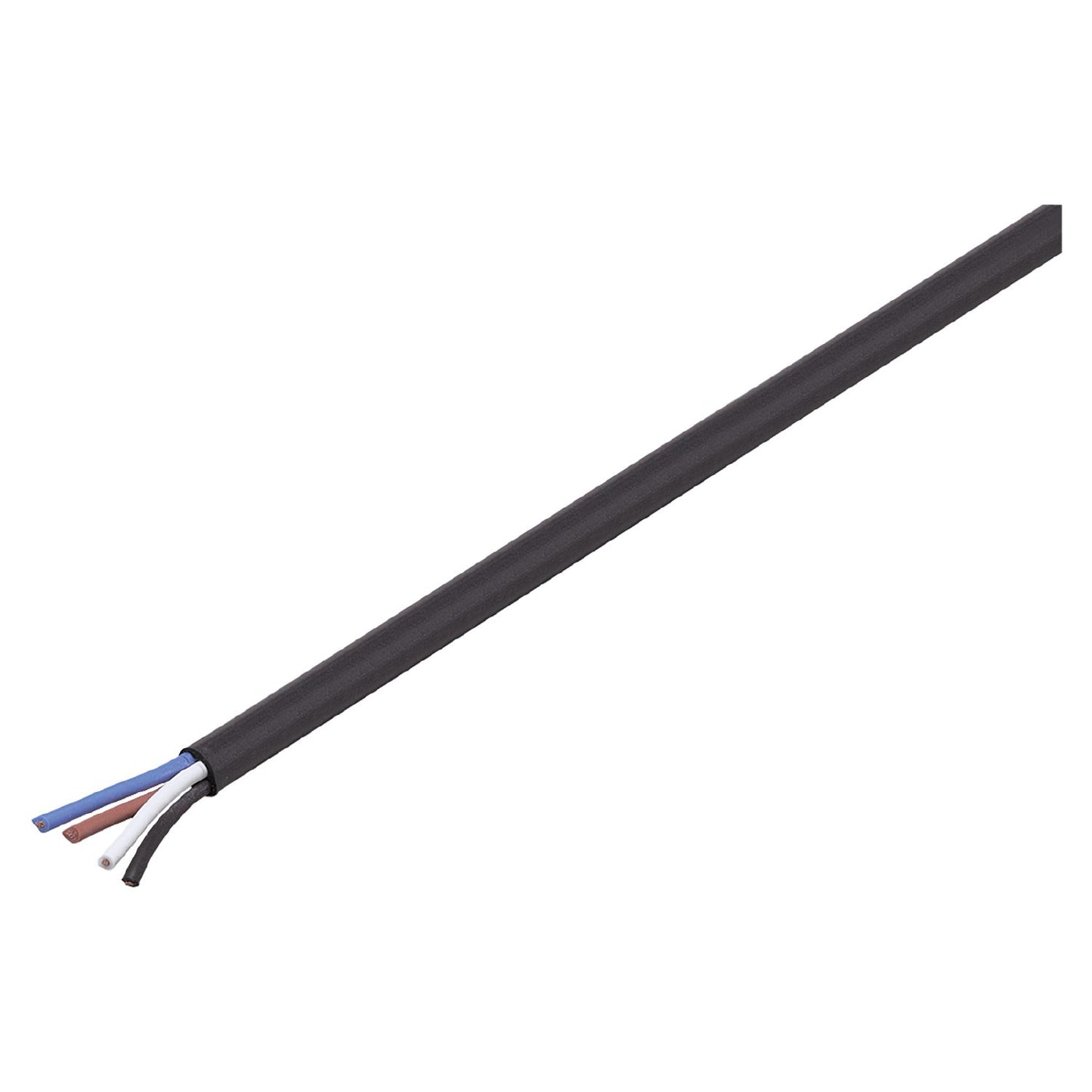

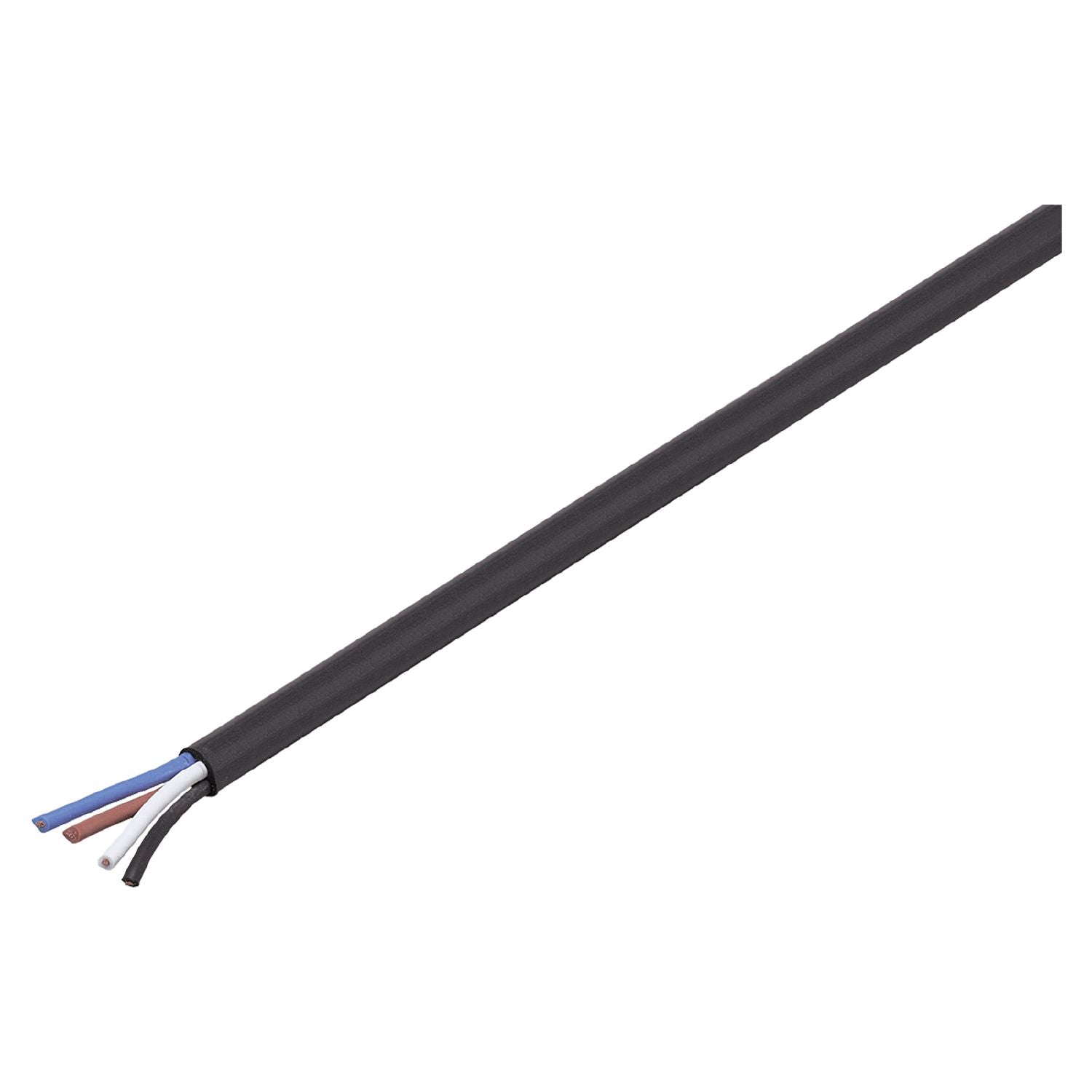

IFM E11686 - Bulk cable CABLE/100M/ PUR/4X0,34/BK

Drag chain suitability with more than 2 million bending cycles.
Weld-slag resistant PUR cable with drag chain suitability.
Wide operating temperature range

Special feature	Halogen-free; Drag chain suitability

Operating conditions

Ambient temperature [°C]	-40...90

Weight [g]	3127
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 5 Mio. torsional strain ± 180 °/m

Pack quantity	1 pcs.

Electrical connection

	Cable: 100 m, PUR, Halogen-free, black, Ø 4.9 mm; 4 x 0.34 mm², PP

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11686-00 — 30.05.2022 —
