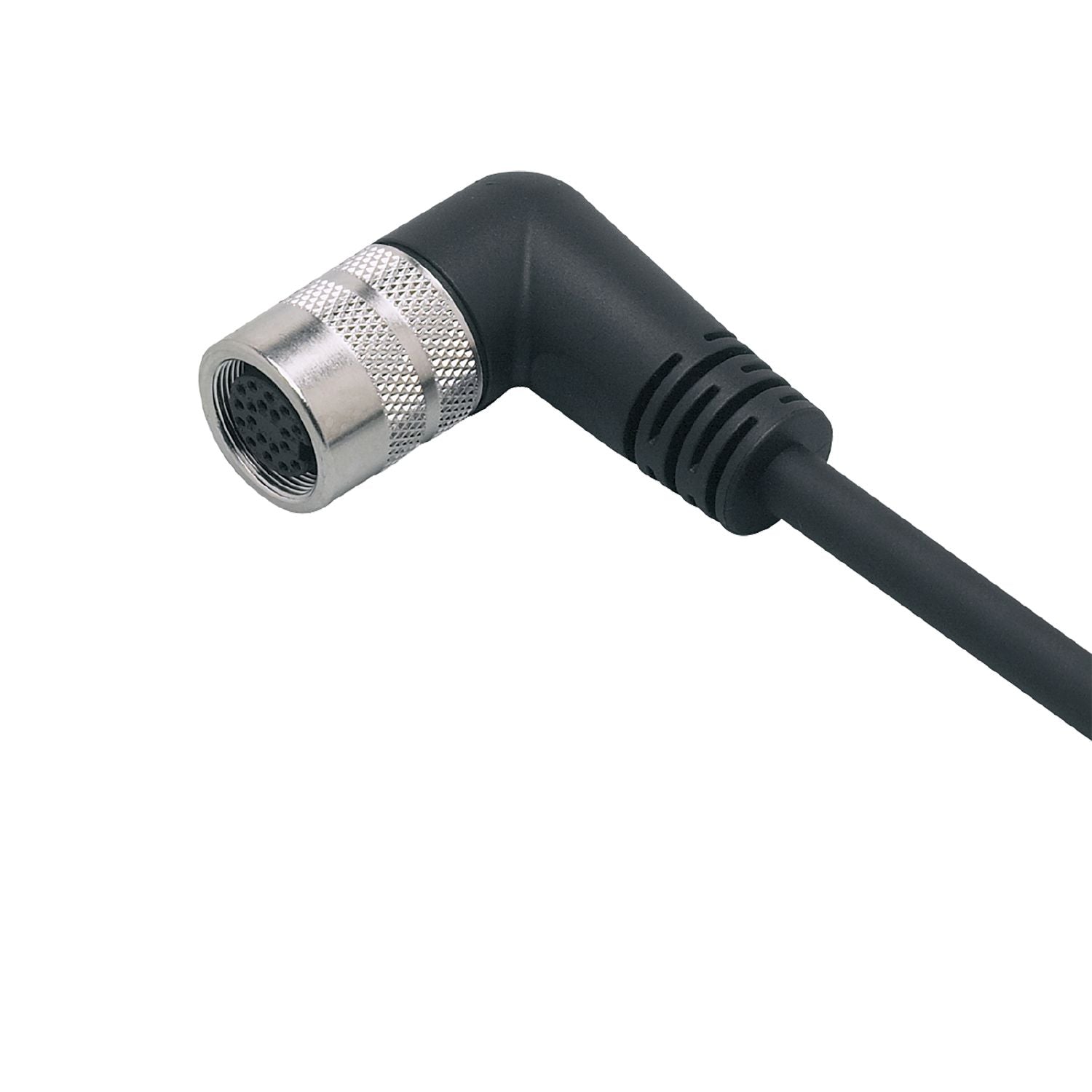

IFM E11697 - Connecting cable with socket ADOAO140MSS0005B11

High protection rating for the requirements of harsh industrial environments.
Reliable transmission of the sensor signals.
Wide operating temperature range.
Angled type for use where space is restricted

Operating voltage [V]	< 30 DC
Max. current load total [A]	3

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Weight [g]	421.5
Dimensions [mm]	45 x 20 x 49
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, black, Ø 7.5 mm; 2 x 0.34 mm² (14 x Ø 0.15 mm ) + 10 x 0.25 mm² (7 x Ø 0.2 mm )

Electrical connection - socket

Connection	Connector: 1 x M16, angled; Moulded body: PUR; Locking: brass, nickel-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11697-00 — 06.02.2023 —
