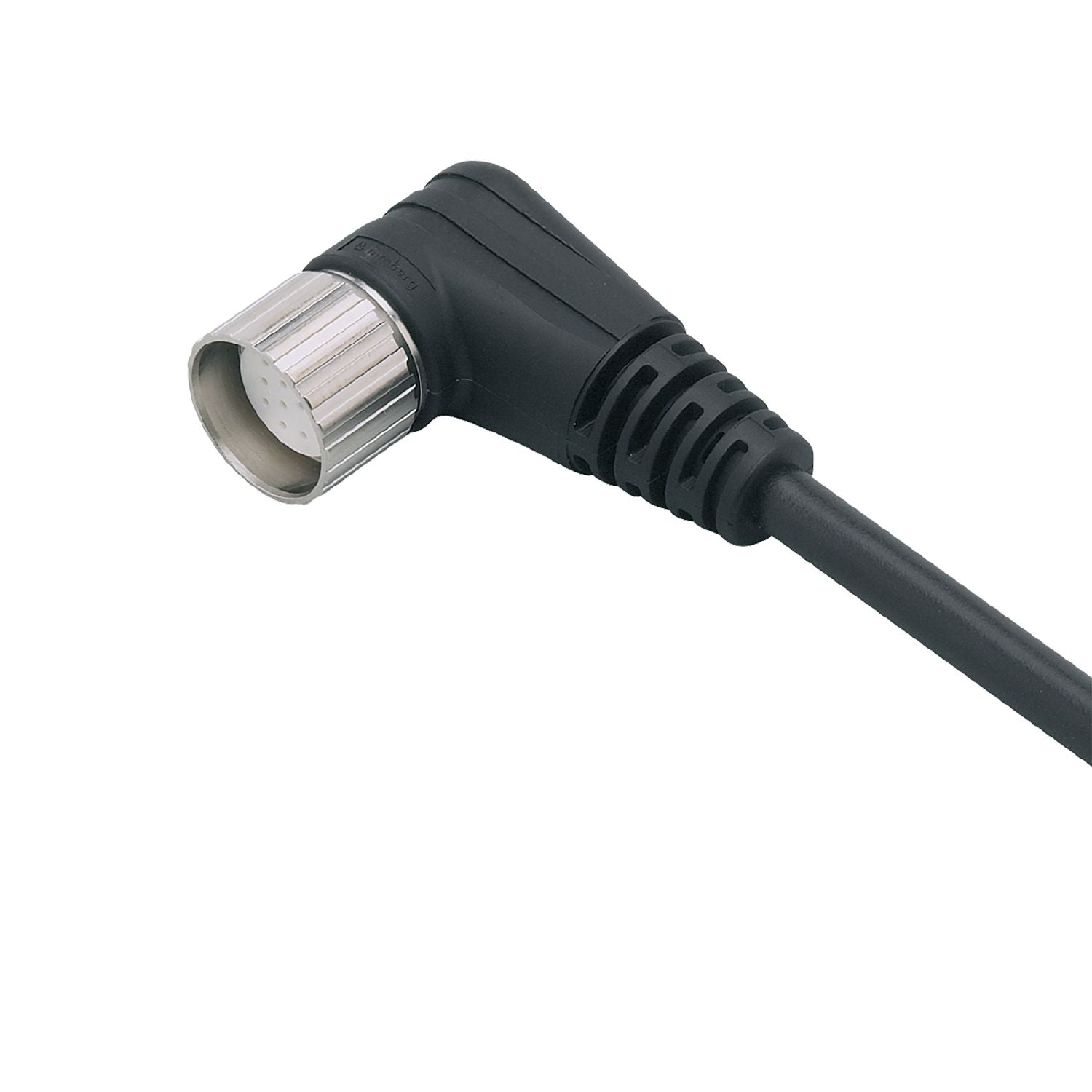

IFM E11741 - Connecting cable with socket ADOAK120MSS0015H12

Reliable connection of controllers and dialogue units.
Wide operating temperature range.
Suited for use in mobile machines.
High protection rating for the requirements of harsh industrial environments.
Angled type for use where space is restricted

Special feature	Halogen-free

Operating voltage [V]	< 63 AC/DC

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Weight [g]	2055
Dimensions [mm]	51 x 26 x 70
Materials	PUR black
Moulded-body material	PUR
Material nut	brass, nickel-plated
Tightening torque [Nm]	2

Pack quantity	1 pcs.

Electrical connection

	Cable: 15 m, PUR, Halogen-free, black, Ø 9.3 mm; 8 x 0.5 mm² (63 x Ø 0.1 mm ) + 3 x 1.0 mm² (127 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 1 x M23, angled; Moulded body: PUR; Locking: brass, nickel-plated
