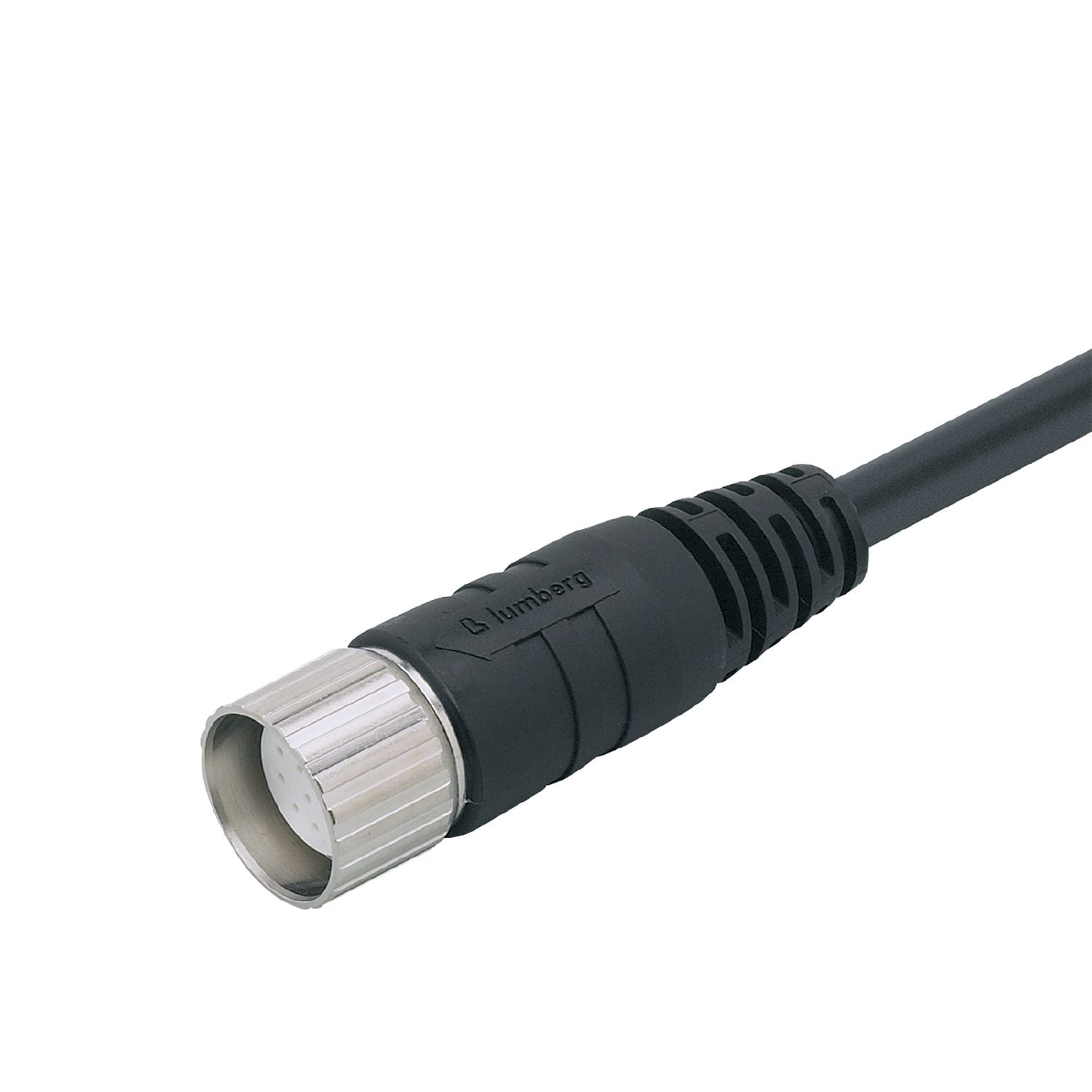

IFM E11742 - Connecting cable with socket ADOGK190MSS0005H19

Reliable connection of controllers and dialogue units.
Wide operating temperature range.
Suited for use in mobile machines.
High protection rating for the requirements of harsh industrial environments

Special feature	Halogen-free

Operating voltage [V]	< 63 AC/DC
Max. current load total [A]	8

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Weight [g]	1141
Dimensions [mm]	26 x 26 x 85
Materials	PUR black
Moulded-body material	PUR
Material nut	brass, nickel-plated
Tightening torque [Nm]	2

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, Halogen-free, black, Ø 11.6 mm; 16 x 0.5 mm² (63 x Ø 0.1 mm ) + 3 x 1.0 mm² (127 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 1 x M23, straight; Moulded body: PUR; Locking: brass, nickel-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11742-00 — 20.09.2010 —
