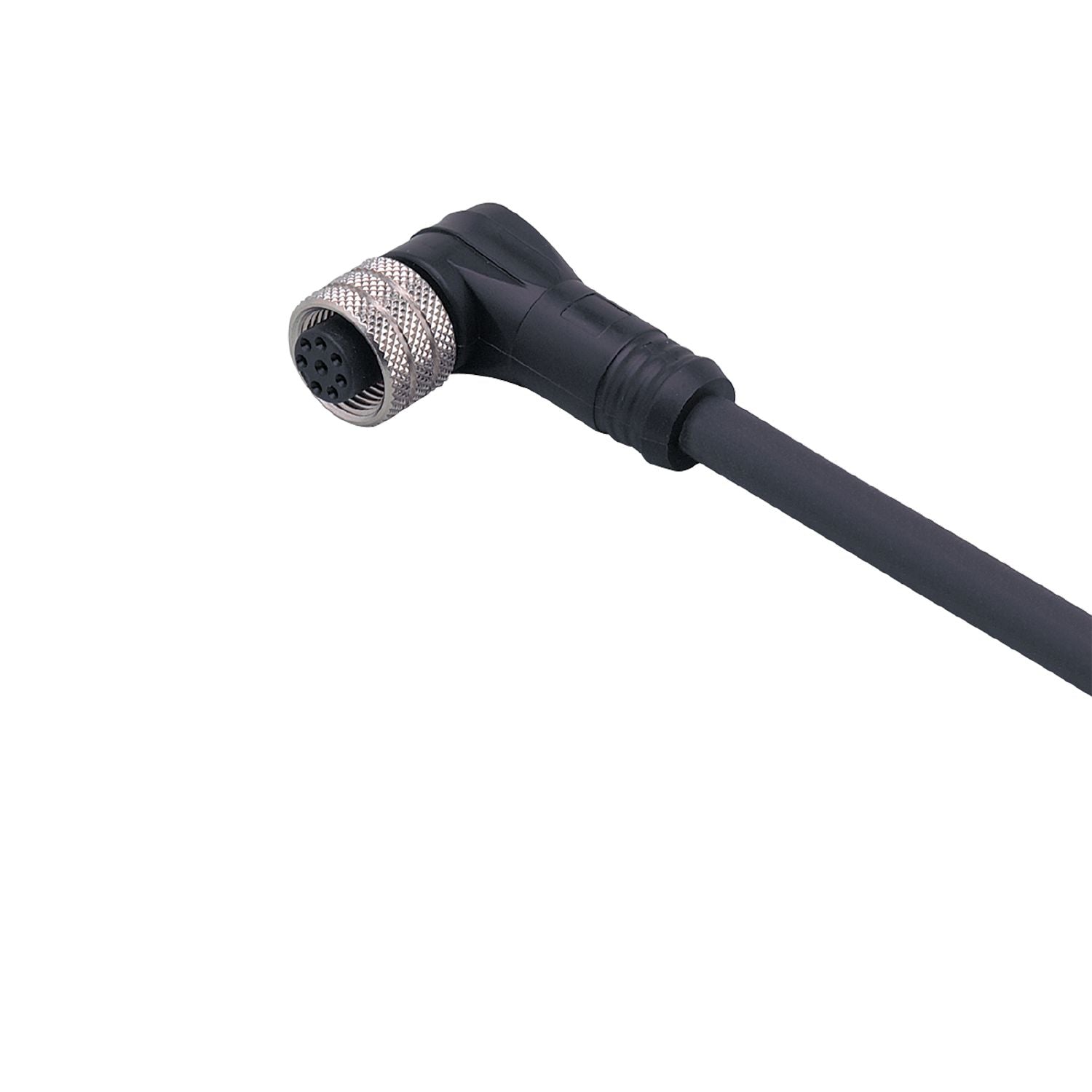

IFM E11806 - Connecting cable with socket ADOAH080MSS0010C08

High protection rating for the requirements of harsh industrial environments.
Permanent, reliable sealing even when mounted without tools.
Wide operating temperature range.
Good electromagnetic compatibility thanks to shielded cable.
Angled type for use where space is restricted

Special feature	Free from silicone; Gold-plated contacts; Screened cable
Free from silicone	yes

Operating voltage [V]	< 30 AC / < 36 DC
Protection class	III

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Weight [g]	682.5
Dimensions [mm]	28 x 15 x 38
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 10 m, PUR, black, Ø 6.2 mm, shielded; 8 x 0.25 mm²

Electrical connection - socket

Connection	Connector: 1 x M12, angled; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen connected

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11806-01 — 02.07.2014 —
