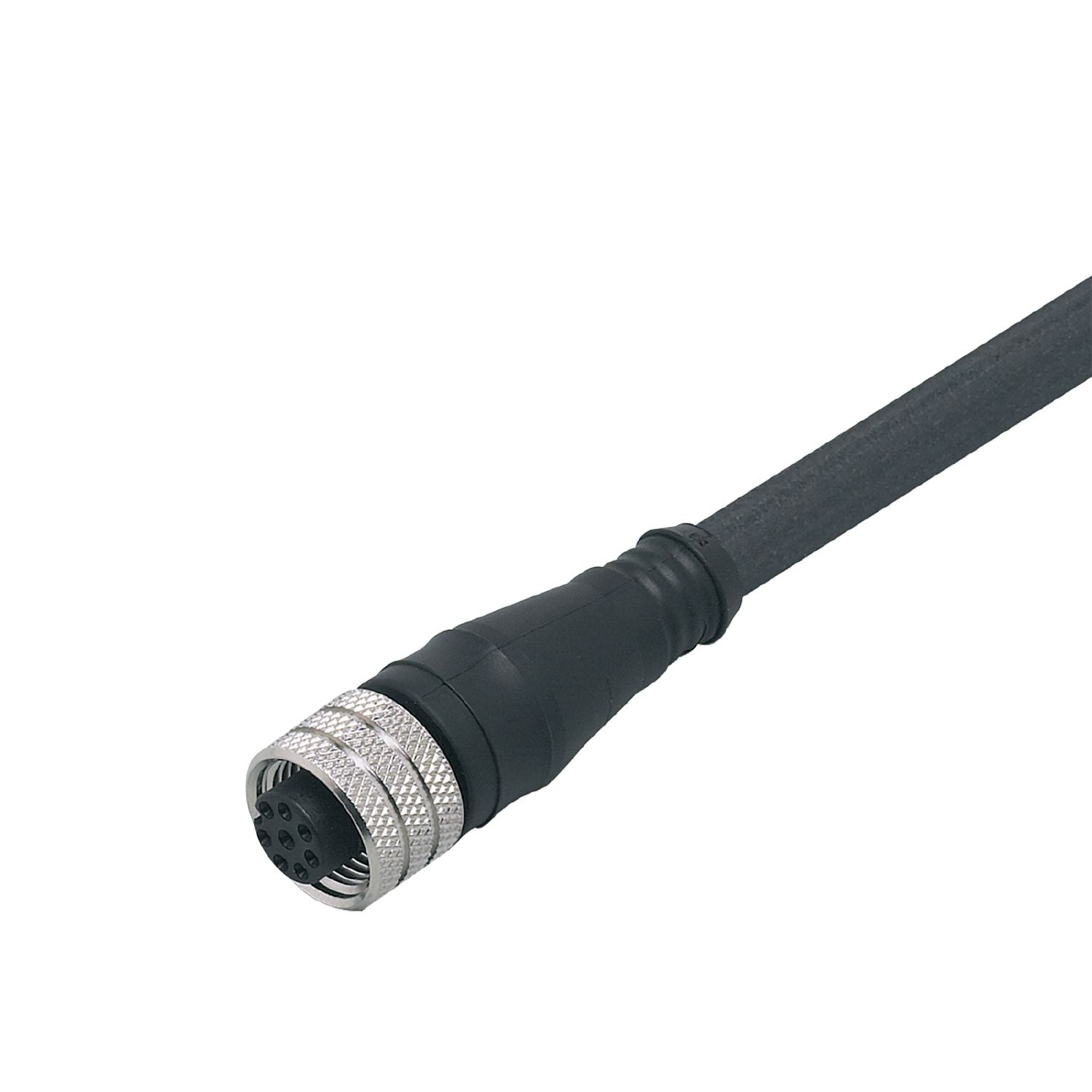

IFM E11855 - Connecting cable with socket ADOGH080MSS0010K08

8-pole connection.
High protection rating for the requirements of harsh industrial environments.
Reliable transmission of the sensor signals.
Good electromagnetic compatibility thanks to shielded cable

Special feature	Screened cable

Operating voltage [V]	< 30 AC / < 36 DC
Protection class	III

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Weight [g]	677
Dimensions [mm]	15 x 15 x 43
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 10 m, PUR, black, Ø 6.6 mm, shielded; 8 x 0.25 mm² (14 x Ø 0.15 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen connected
