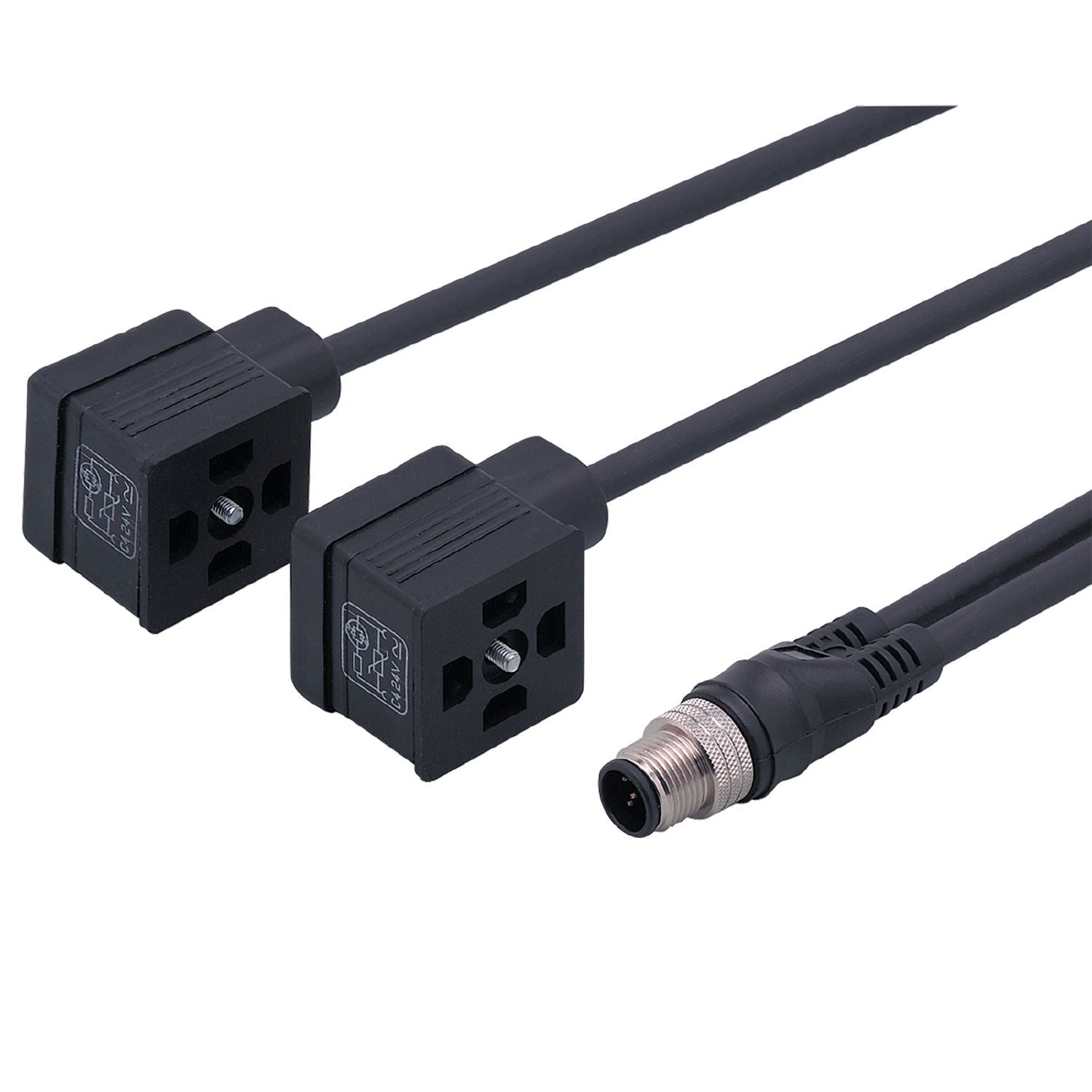

IFM E12068 - Y-jumper with valve plug YVDAA042--S0003A03STGH050MSS

Reliable connection of valves in the field.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Clearly visible LED.
Robust rectangular connector

Special feature	Halogen-free

Operating voltage [V]	10...30 DC
Overvoltage protection	yes;(VDR)

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 65

Weight [g]	350.2
Materials	TPU
Moulded-body material	TPU
Material nut	brass, nickel-plated

Displays / operating elements

Display	switching status 2 x LED, yellow

Accessories

Items supplied	screw panel for labelling

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated

Electrical connection

	Cable: 3 m, PUR, Halogen-free, black, Ø 4.8 mm; 3 x 0.5 mm² (16 x Ø 0.2 mm )

Electrical connection - socket

	Connector: 2 x valve type A DIN, angled; Moulded body: TPU; Locking: brass, nickel-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12068-00 — 07.05.2010 —
