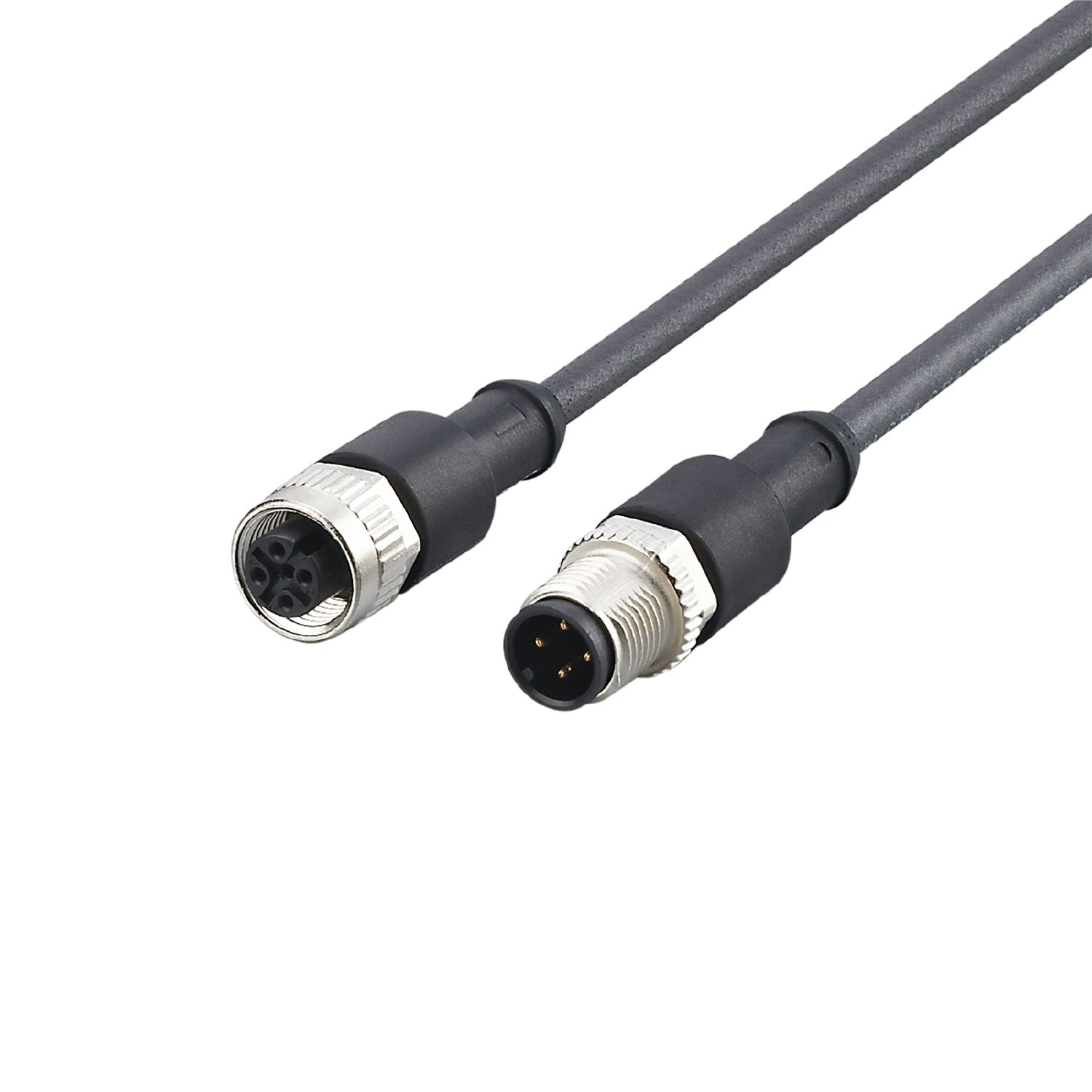

IFM E12332 - Connection cable VDOGH040MSS0015C04STGH040MSS

High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Good electromagnetic compatibility thanks to shielded cable.
Permanent, reliable sealing even when mounted without tools.
Gold-plated contacts for reliable electrical connections

Special feature	Free from silicone; Gold-plated contacts; Screened cable
Free from silicone	yes

Operating voltage [V]	< 50 AC / < 60 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 68

Weight [g]	612.5
Dimensions [mm]	14.5 x 14.5 x 48.5
Materials	PUR
Moulded-body material	PUR
Material nut	diecast zinc, nickel-plated

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm

Electrical connection

Connection	Cable: 15 m, PUR, black, Ø 5 mm, shielded; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12332-00 — 29.05.2012 —
