High protection rating for the requirements of harsh industrial environments. Wide operating temperature range. Good electromagnetic compatibility thanks to shielded cable. Permanent, reliable sealing even when mounted without tools. Gold-plated contacts for reliable electrical connections
Special feature
Free from silicone; Gold-plated contacts; Screened cable
Free from silicone
yes
Operating voltage [V]
< 30 AC / < 36 DC
Protection class
II
Max. current load total [A]
4
Operating conditions
Ambient temperature [°C]
-25...90
Protection
IP 68
Weight [g]
314
Dimensions [mm]
38 x 15 x 31
Materials
housing: TPU black
Material nut
brass, nickel-plated
Remarks
The CAN bus terminating resistor (120 Ω) is integrated in the M12 connector.
Pack quantity
1 pcs.
Electrical connection
Cable: 10 m, PVC, lilac, Ø 6.7 mm, shielded; 2 x 0.34 mm² / AWG 22 + 2 x 0.25 mm² / AWG 24
Electrical connection - plug
Connection

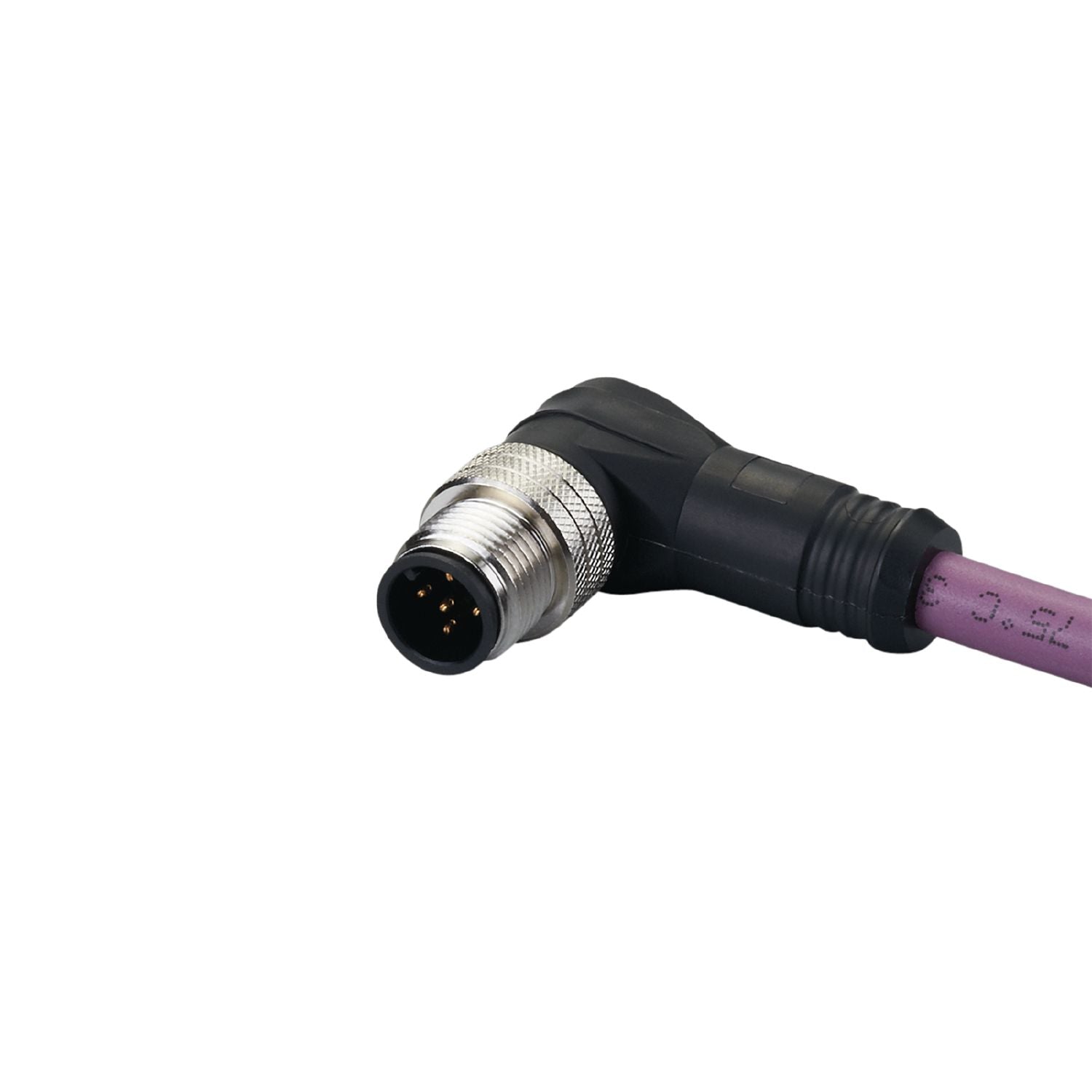

Connector: 1 x M12, angled; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Shielded connection cable: screen not connected
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12347-01 — 01.09.2016 —
