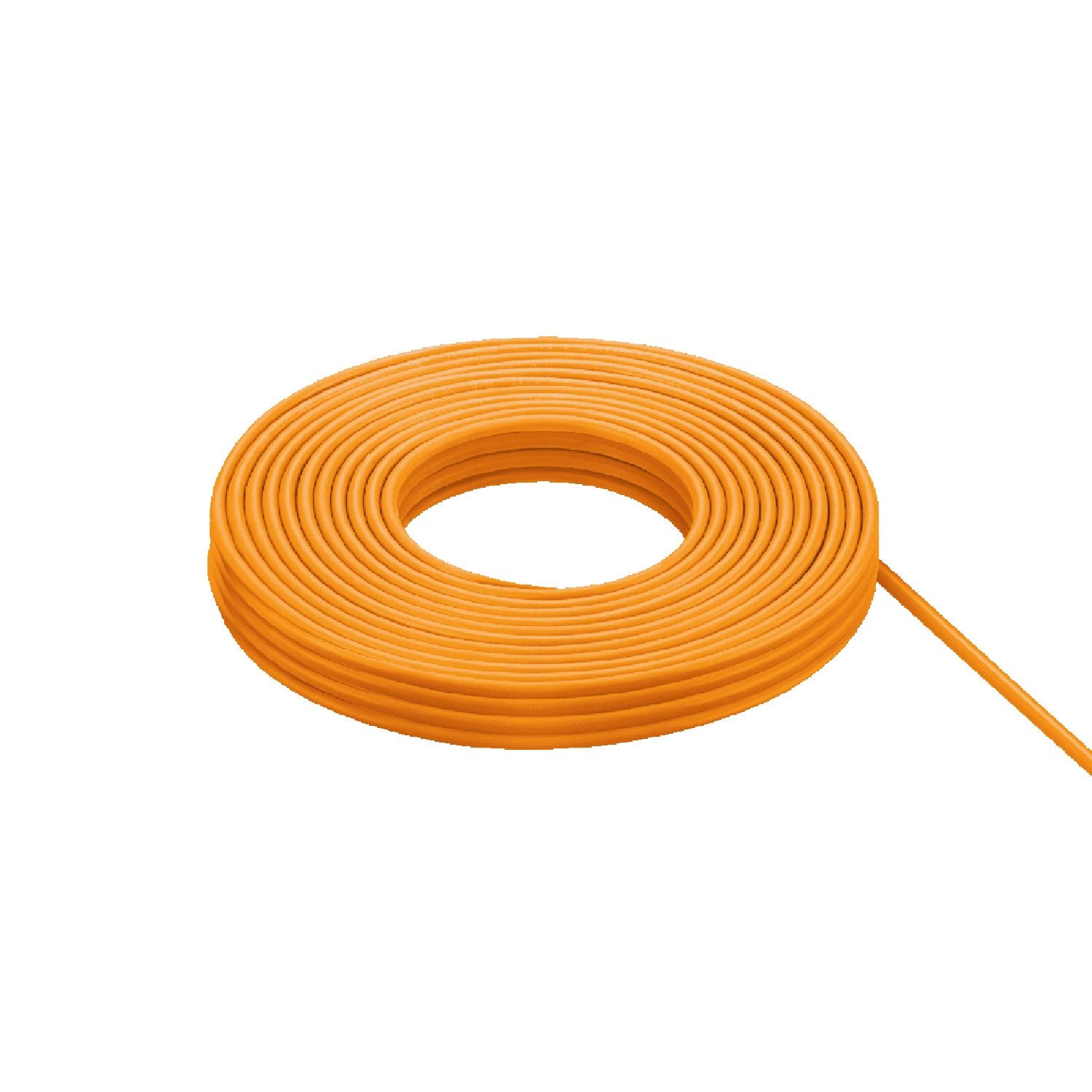

IFM E12359 - Bulk cable CABLE/100M/PUR/4X0,34/OR

Drag chain suitability with more than 2 million bending cycles.
Weld-slag resistant PUR cable with drag chain suitability.
Wide operating temperature range

Special feature	Halogen-free; Drag chain suitability

Operating conditions

Ambient temperature [°C]	-40...90
Ambient temperature (moving) [°C]	-25...90

Weight [g]	2990
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 2 Mio. torsional strain ± 180 °/m

Pack quantity	1 pcs.

Electrical connection

	Cable: 100 m, PUR, Halogen-free, orange, Ø 4.9 mm; not irradiated (can be recycled); resistant to welding sparks; 4 x 0.34 mm² (42 x Ø 0.1 mm )

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12359-00 — 13.04.2023 —
