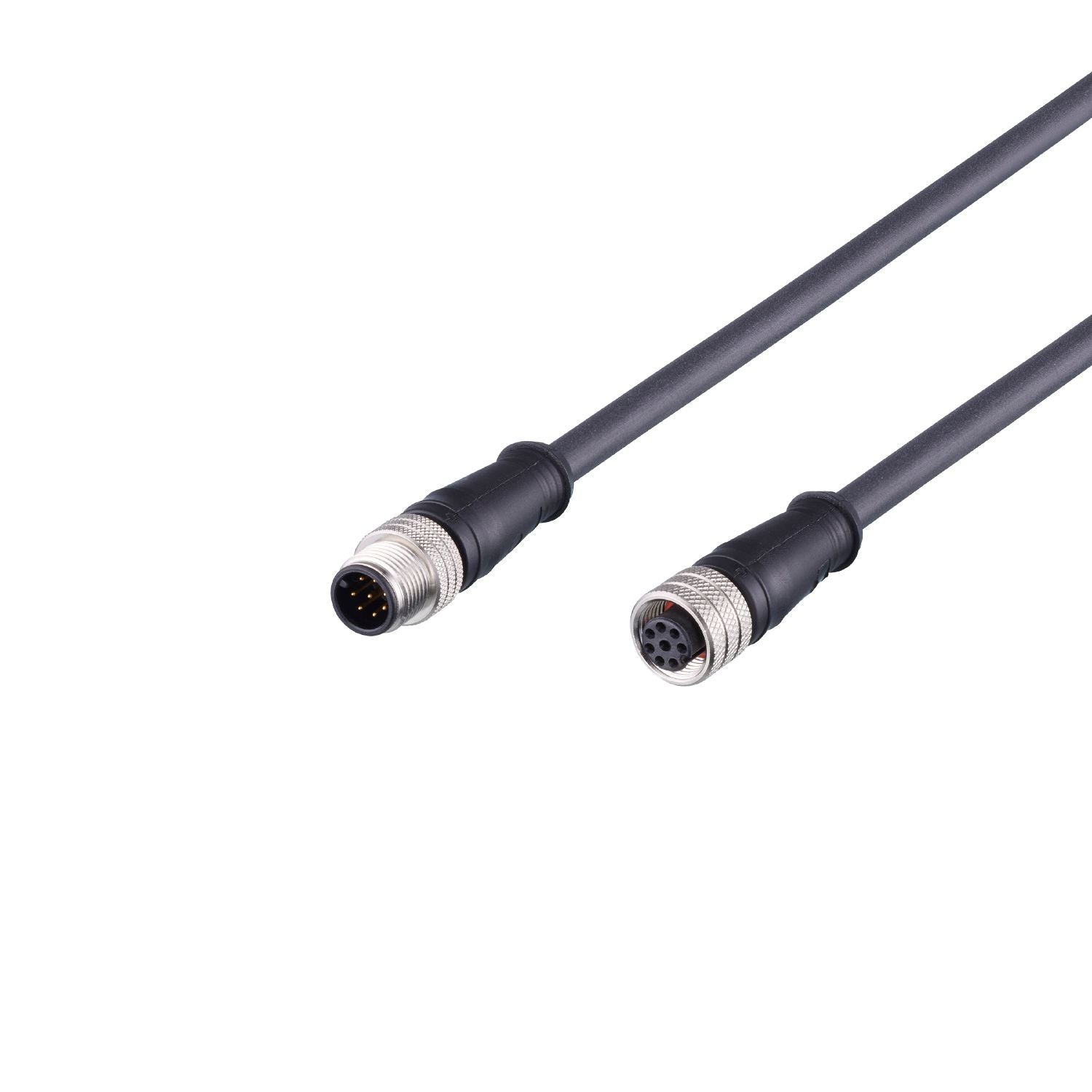

IFM E12383 - Connection cable VDOGH080MSS0010K08STGH080MSS

Special feature	Screened cable

Operating voltage [V]	< 30 AC / < 36 DC

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 68

Weight [g]	571
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen connected

Electrical connection

Connection	Cable: 10 m, PUR, black, Ø 6.8 mm, shielded; 8 x 0.25 mm²

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen connected
