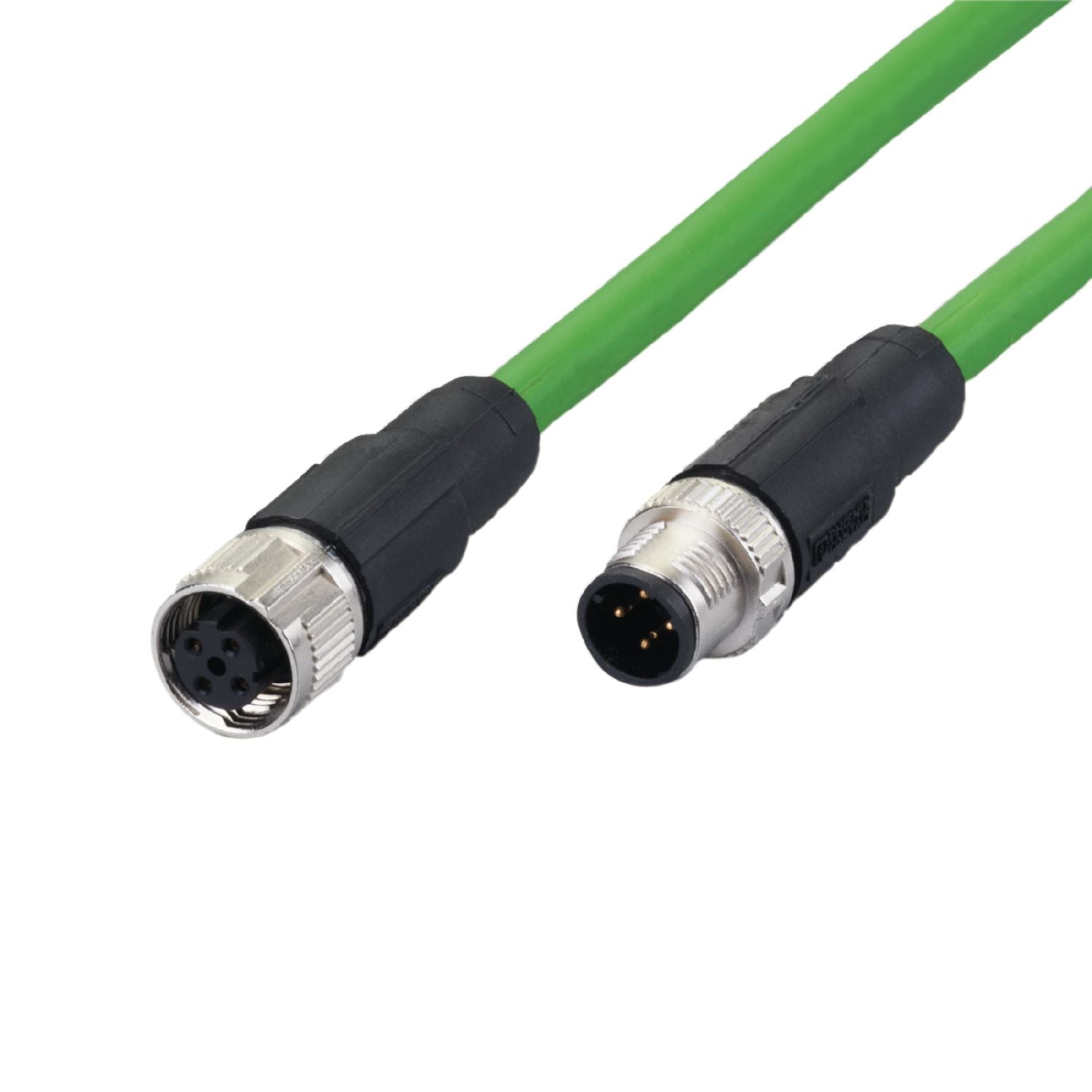

IFM E12424 - Ethernet connection cable VDOGN040ZDS0020L04STGN040ZDS

For connection to the parameter setting interface of the sensor.
Gold-plated contacts for reliable signal transmission.
High protection rating for the requirements of harsh industrial environments.
Good electromagnetic compatibility thanks to shielded cable

Special feature	Gold-plated contacts; Screened cable
Design	Ethernet cable, D-coded

Operating voltage [V]	< 50 AC / < 60 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-20...90
Protection	IP 67

Weight [g]	1342
Dimensions [mm]	15 x 15 x 47.3
Materials	TPU
Moulded-body material	TPU
Material nut	diecast zinc, nickel-plated

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: D; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Shielded connection cable: screen connected

Electrical connection

Connection	Cable: 20 m, PVC, green, shielded; 4 x 0.34 mm²

Electrical connection - socket

	Connector: 1 x M12, straight; coding: D; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Shielded connection cable: screen connected
