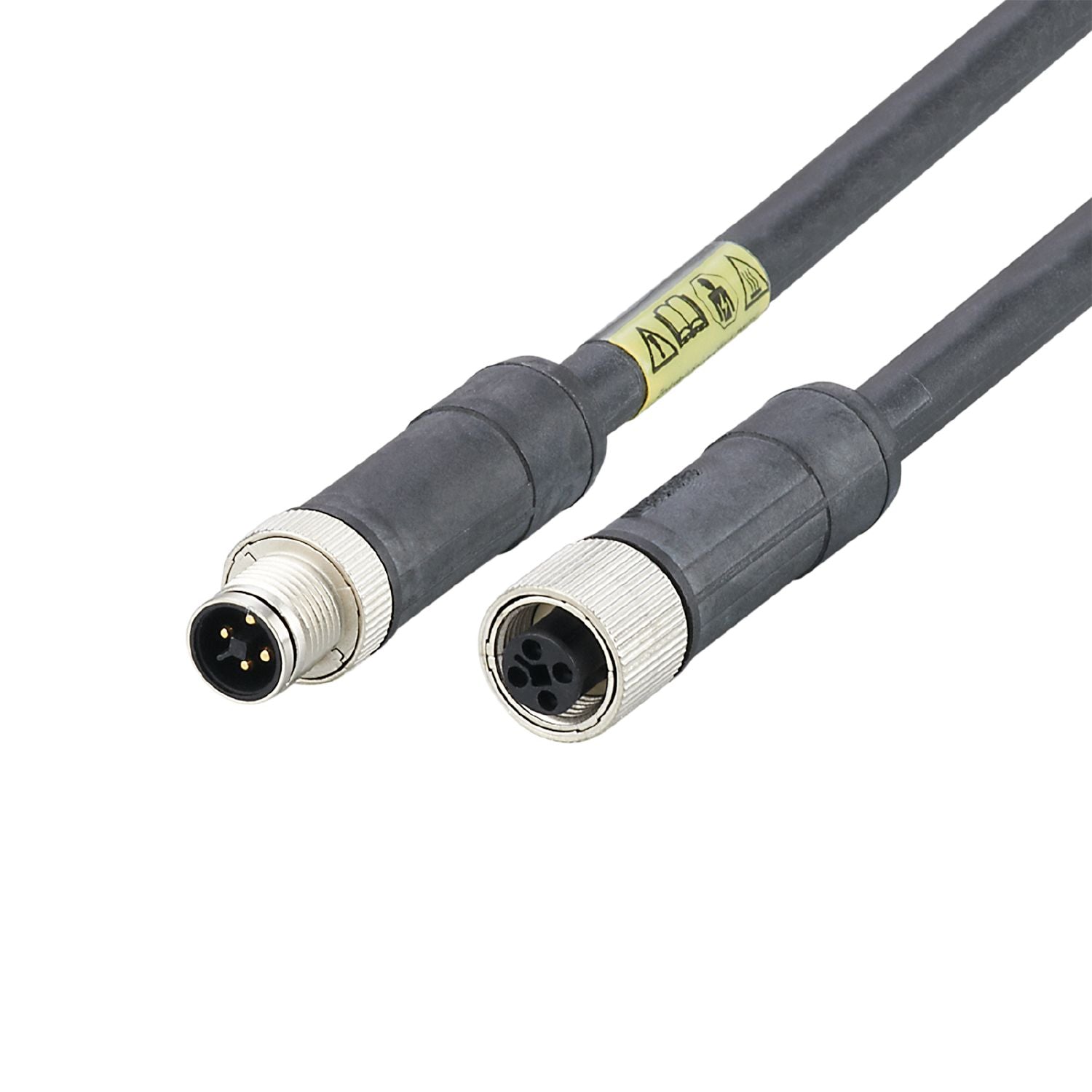

IFM E12427 - Connection cable VDOGD040ZDS0005H04STGD040ZDS

High power transmission thanks to high current rating.
Gold-plated contacts for reliable signal transmission.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Protection against wrong plug-in by means of special coding

Special feature	Gold-plated contacts; Drag chain suitability
Design	power cable, T-coded

Operating voltage [V]	< 60 DC
Max. current load total [A]	12

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Weight [g]	563.2
Dimensions [mm]	15.4 x 15.4 x 54.8
Materials	PUR
Moulded-body material	PUR
Material nut	diecast zinc, nickel-plated
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter bending radius for fixed installation min. 5 x cable diameter travel speed max. 3 m/s at 5 m horizontal travel length and max. acceleration of 5 m/s² bending cycles > 4 Mio.

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: T; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated

Electrical connection

Connection	Cable: 5 m, PUR, black; 4 x 1.5 mm²

Electrical connection - socket

	Connector: 1 x M12, straight; coding: T; Moulded body: PUR

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12427-01 — 15.02.2022 —
