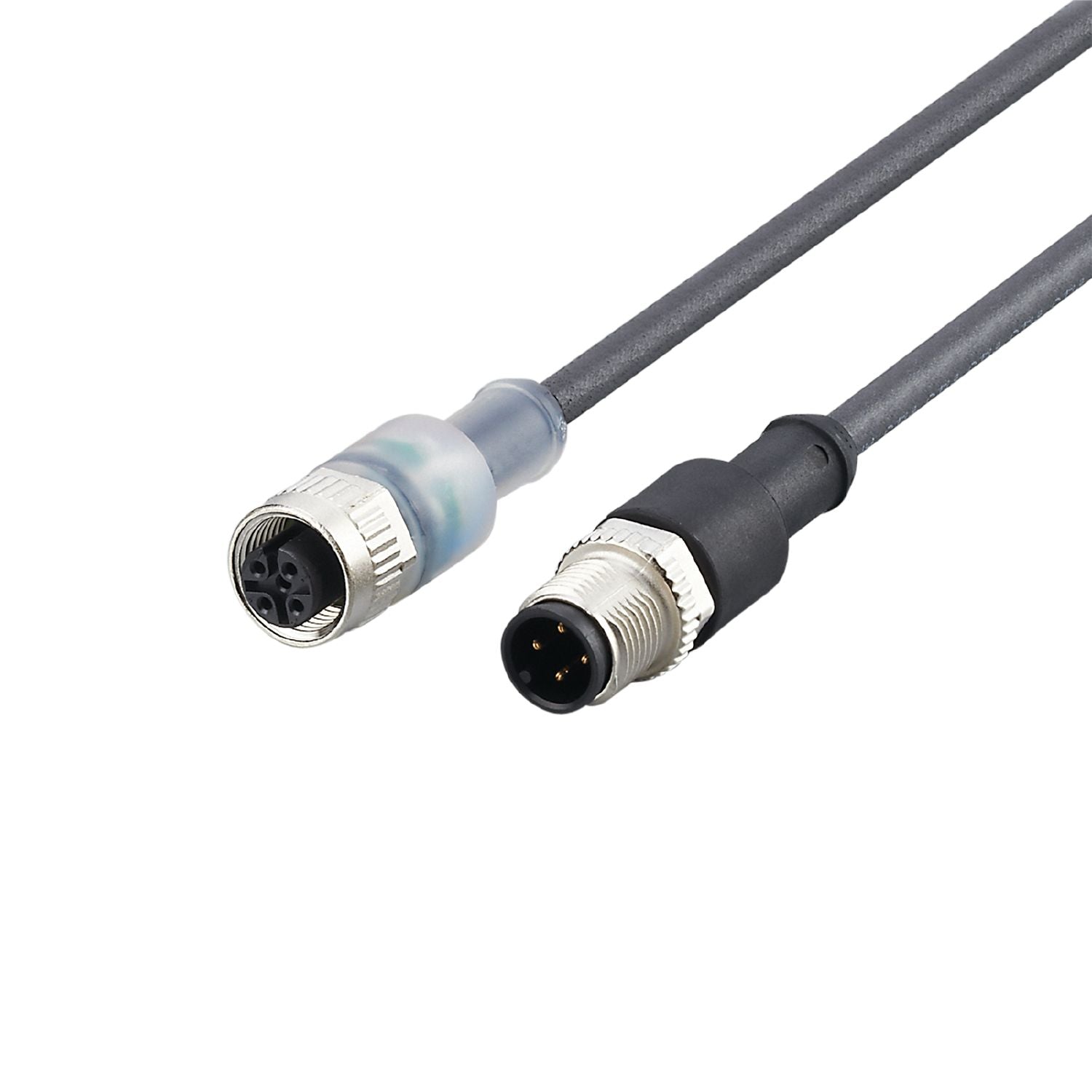

IFM E12435 - Connection cable VDOGH042SCS0030T04STGH040SCS

Special feature	Free from silicone; Gold-plated contacts
Application	welding applications
Free from silicone	yes

Operating voltage [V]	10...36 DC
Protection class	II
Max. current load total [A]	4

Outputs

Electrical design	PNP

Operating conditions

Ambient temperature [°C]	-25...85
Ambient temperature (moving) [°C]	-25...85
Protection	IP 68

Weight [g]	816.2
Dimensions [mm]	14.5 x 14.5 x 48.5
Moulded-body material	PUR
Material nut	diecast zinc
Sealing material	FKM

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Remarks	with 2 label holders 30 mm long
Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: diecast zinc; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection

Connection	Cable: 30 m, PUR, black, Ø 4.9 mm; not irradiated (can be recycled); resistant to welding sparks; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR, transparent; Locking: diecast zinc; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12435-00 — 01.04.2015 —
