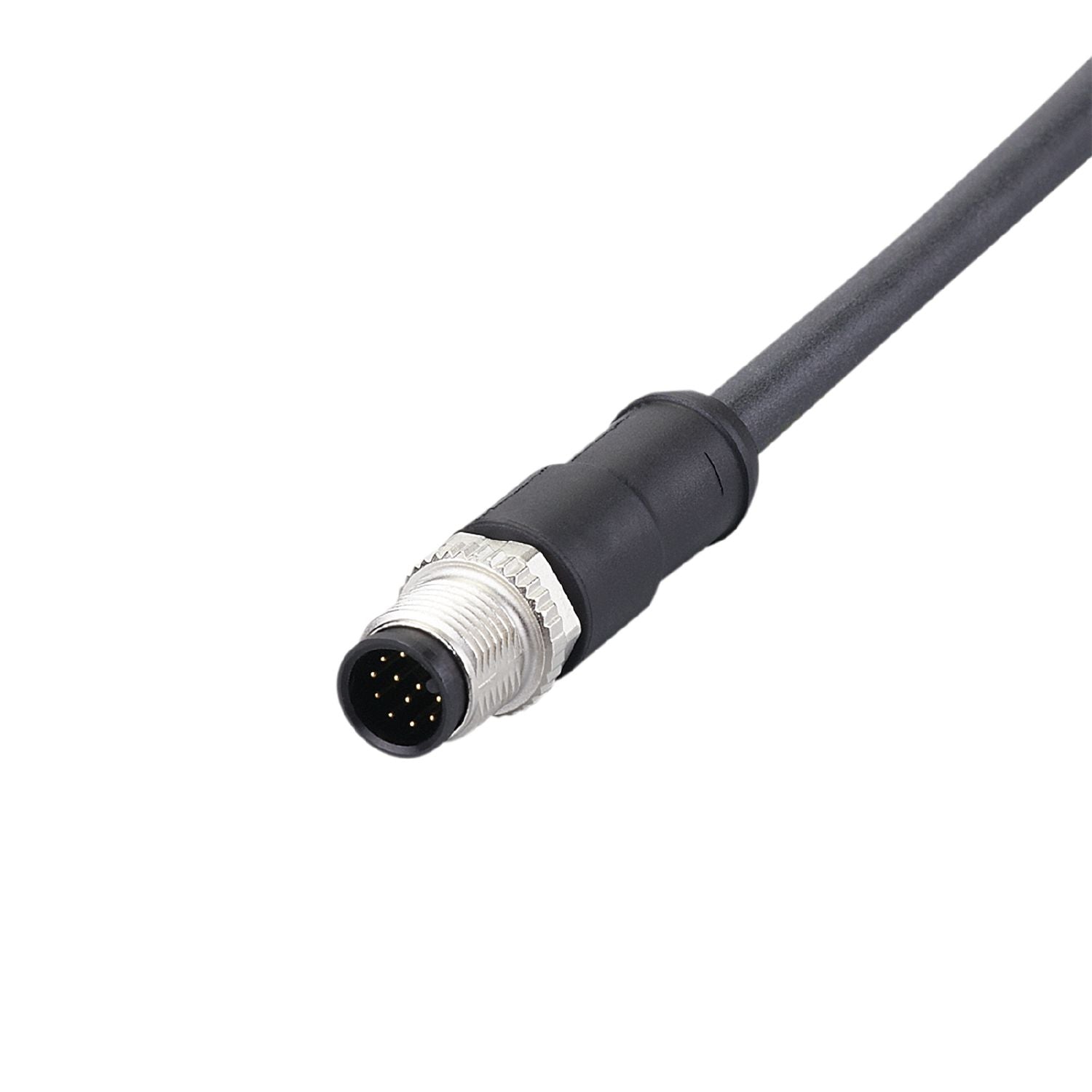

IFM E12455 - Connecting cable with plug ASTGH120MSS0005H12

Reliable connection of controllers and dialogue units.
Wide operating temperature range.
Suited for use in mobile machines.
High protection rating for the requirements of harsh industrial environments

Special feature	Gold-plated contacts; Drag chain suitability

Operating voltage [V]	< 50 AC / < 60 DC
Protection class	II
Max. current load total [A]	2

Operating conditions

Ambient temperature [°C]	-25...70
Ambient temperature (moving) [°C]	-5...70
Protection	IP 68

Weight [g]	329.5
Dimensions [mm]	14.5 x 14.5 x 48.4
Materials	PUR
Moulded-body material	PUR
Material nut	diecast zinc, nickel-plated
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 2 Mio.

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, black, Ø 6.5 mm; 12 x 0.25 mm² (19 x Ø 0.13 mm )

Electrical connection - plug

Connection	Connector: 1 x M12, straight; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm
