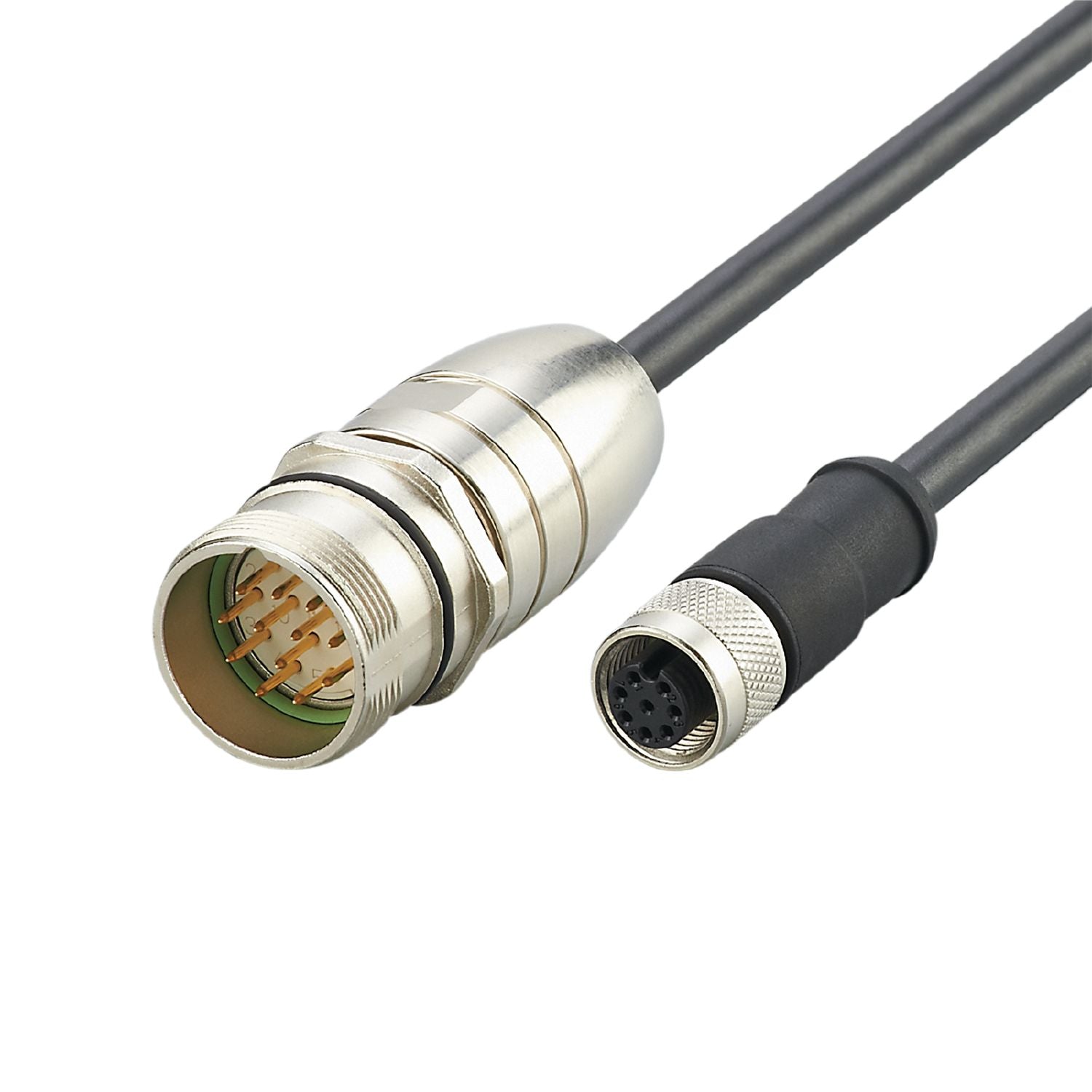

IFM E12460 - Connection cable ADOGH080MSS00,3K05STGK120MSS

Reliable connection technology for CAN bus participants.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Good electromagnetic compatibility thanks to shielded cable.
Gold-plated contacts for reliable electrical connections

Special feature	Gold-plated contacts; Screened cable

Operating voltage [V]	< 30 AC / < 36 DC

Operating conditions

Ambient temperature [°C]	-20...90
Protection	IP 67

Weight [g]	111.4
Moulded-body material	brass, nickel-plated / TPU
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M23, straight; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated; Contacts: gold-plated; Shielded connection cable: screen connected

Electrical connection

Connection	Cable: 0.3 m, PUR, black, Ø 6 mm, shielded; 8 x 0.25 mm²

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Contacts: gold-plated; Shielded connection cable: screen connected

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12460-00 — 21.08.2015 —
