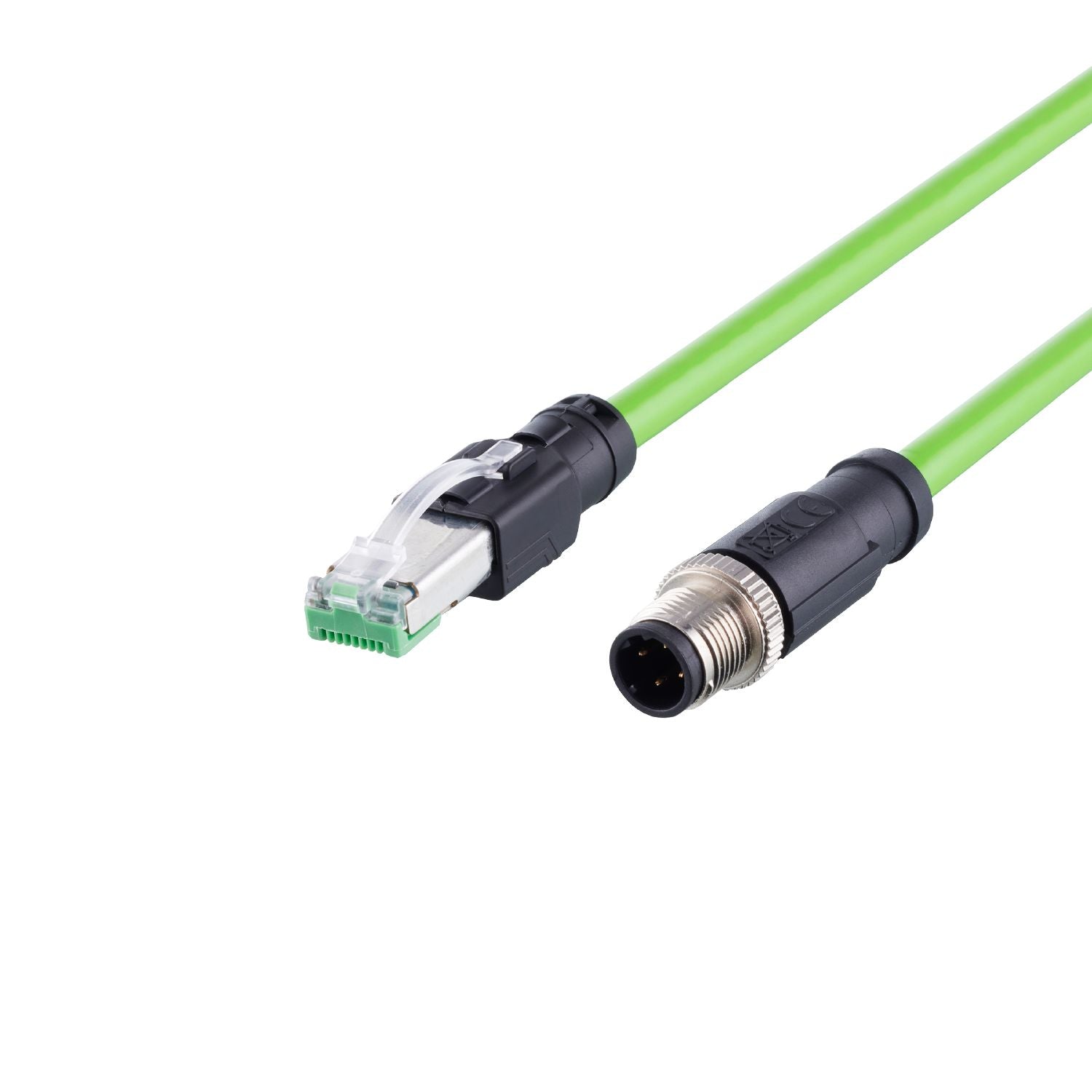

IFM E12491 - Ethernet connection cable VSTGN040ZDS0005L04STGP040--S

For connection to the parameter setting interface of the sensor.
For reliable signal transmission.
Good electromagnetic compatibility thanks to shielded cable

Special feature	Screened cable
Design	Ethernet cable, D-coded
Application	cross-over patch cable; patch cable

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67; IP 20;(M12 plug / RJ45 plug)

Weight [g]	367.2
Materials	TPU / PA
Moulded-body material	PA / TPU
Material nut	diecast zinc, nickel-plated

Pack quantity	1 pcs.

Electrical connection - plug M12

	Connector: 1 x M12, straight; coding: D; Moulded body: PA; Locking: diecast zinc, nickel-plated; Tightening torque: 0.7...0.9 Nm

Electrical connection

Connection	Cable: 5 m, PVC, green, Ø 6.5 mm, shielded; 2 x 2 x 0.38 mm²

Electrical connection - plug RJ45

	Connector: 1 x RJ45, straight; Moulded body: TPU

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12491-00 — 05.11.2020 —
