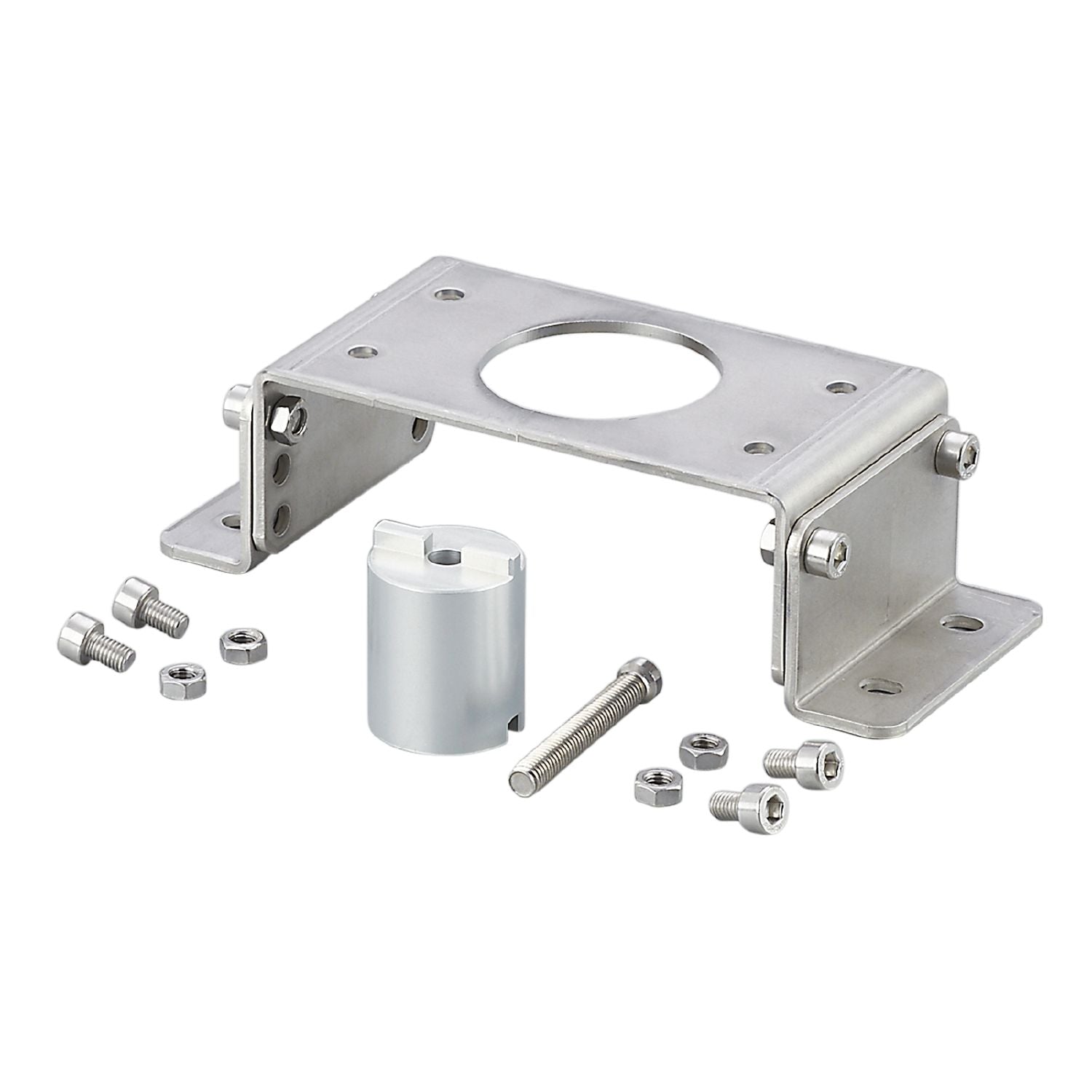

IFM E12628 - mounting bracket VALVE BRACKET 30-50MM

Design	for mechanical interfaces to pneumatic actuators VDI / VDE 3845

Weight [g]	454.5
Hole spacing for mounting bracket	80 x 30 / 130 x 30 mm
Shaft height for valve drive	30 / 40 / 50 mm
Suitable for shaft diameters [mm]	> 38
Materials	mounting bracket: stainless steel (1.4404 / 316L); shaft adapter: aluminium

Accessories

Items supplied	socket head screw: 1 x M6 x 45, stainless steel socket head screws: 8 x M5 x 8, stainless steel hexagon nuts: 8 x M5, stainless steel

Pack quantity	1 pcs.
