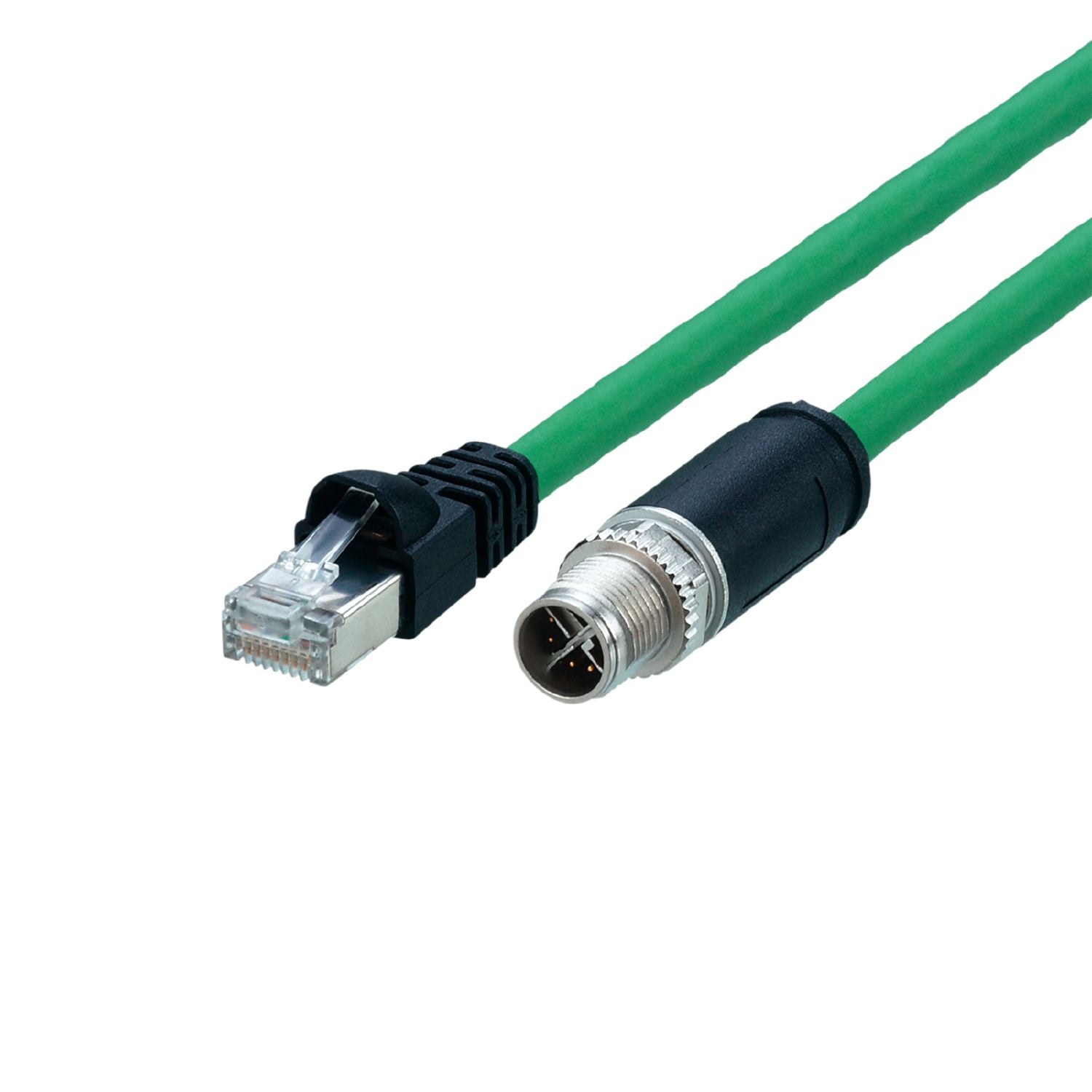

IFM E12631 - Ethernet connection cable VSTGX080MSS0002K08STGP080--S

For connection to the parameter setting interface of the sensor.
For reliable signal transmission.
Good electromagnetic compatibility thanks to shielded cable

Special feature	Screened cable; Drag chain suitability
Design	Ethernet cable, X-coded

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67; IP 20;(M12 plug / RJ45 plug)

Weight [g]	111.8
Materials	PUR; PA
Moulded-body material	PA
Material nut	diecast zinc, nickel-plated
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 8 x cable diameter bending radius for fixed installation min. 4 x cable diameter maximum permissible acceleration 4 m/s² travel speed 4 m/s bending cycles > 1 Mio. torsional strain ± 180 °/m

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: X; Moulded body: PA; Locking: diecast zinc, nickel-plated; Tightening torque: 0.5 Nm

Electrical connection

Connection	Cable: 2 m, PUR, green, Ø 6.2 mm, shielded; 8 x 0.14 mm²

Electrical connection - plug

	Connector: 1 x RJ45, straight; Moulded body: PA

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12631-00 — 27.03.2020 —
