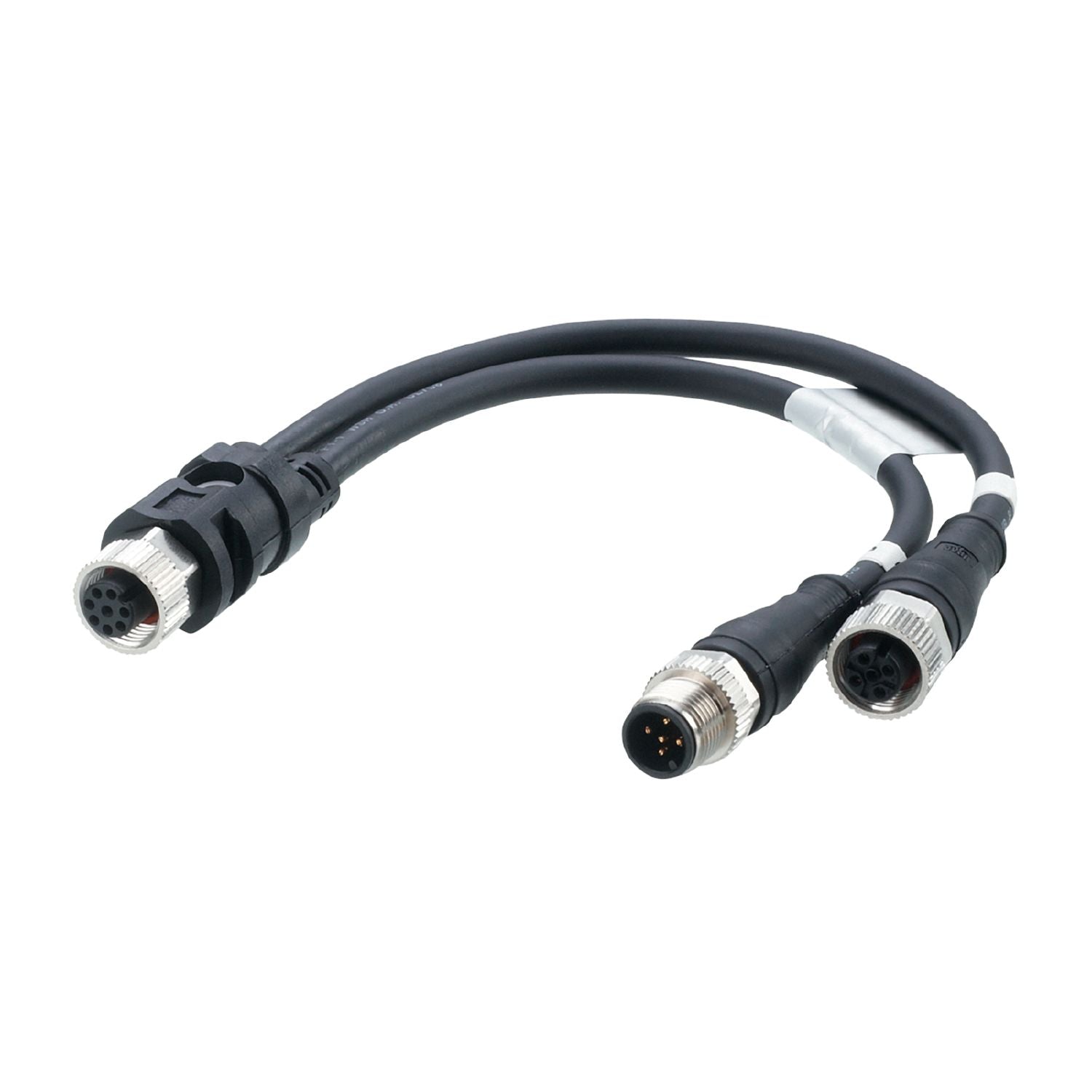

IFM E12640 - Y connection cable Y SPLITTER CABLE

For safe electrical connections.
Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Special feature	Free from silicone
Free from silicone	yes

Operating voltage [V]	< 30 AC / < 36 DC
Protection class	III
Max. current load total [A]	2

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Weight [g]	51.88
Moulded-body material	TPU
Material nut	brass, nickel-plated
Sealing material	FPM
Number of ports splitter box	2

Accessories

Accessory required	E12639

Pack quantity	1 pcs.

Electrical connection - socket C

Connection	Connector: 1 x M12; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Sealing: FPM; Tightening torque: 1 Nm

Electrical connection - socket B

	Cable: 0.15 m, PVC, black, Ø 5 mm; 5 x 0.25 mm² (32 x Ø 0.1 mm )
	Connector: 1 x M12; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Sealing: FPM; Tightening torque: 1 Nm

Electrical connection - plug A

	Cable: 0.15 m, PVC, black, Ø 5 mm; 5 x 0.25 mm² (32 x Ø 0.1 mm )
	Connector: 1 x M12; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Sealing: FPM; Tightening torque: 1 Nm
