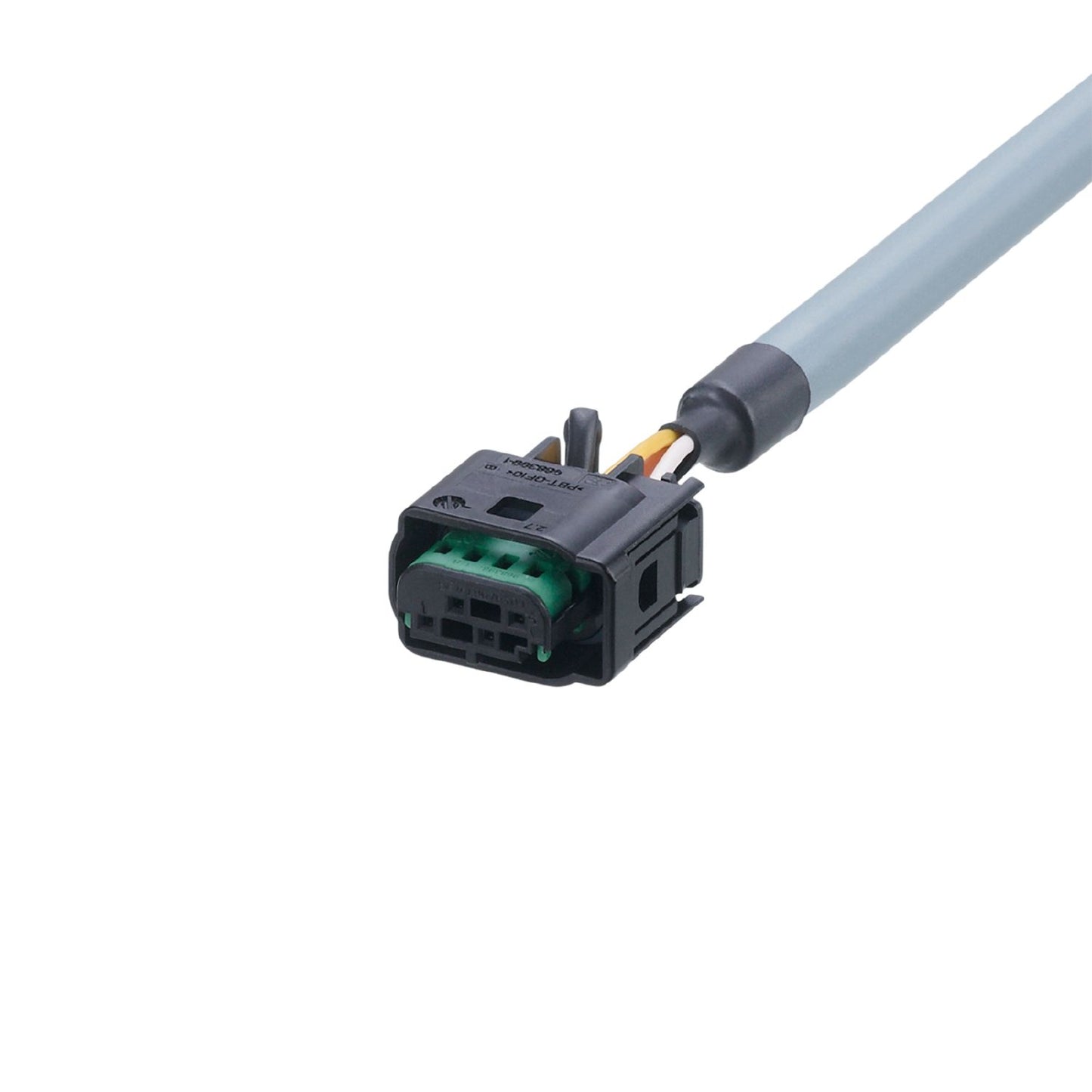

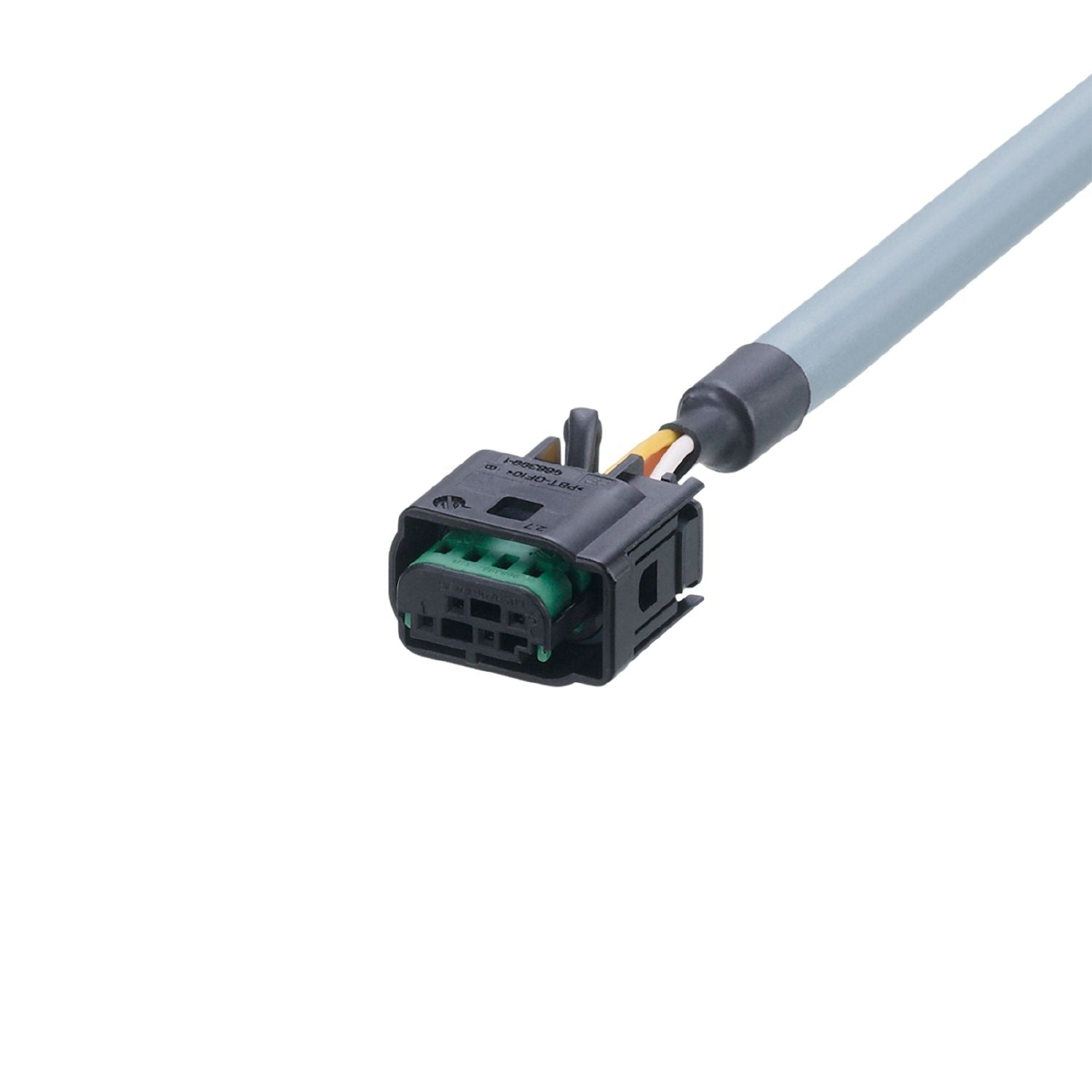

IFM E12736 - Connecting cable with AMP connector ecomatPanel/Cable/5m

Special feature	Screened cable

Operating voltage [V]	8...32 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-40...80
Protection	IP 20;(without resistor)

Weight [g]	456.4
Dimensions [mm]	89.5 x 33.4 x 47.3
Materials	housing: PBT-GF20
Moulded-body material	PBT

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 5 m, PUR, grey, Ø 8.3 mm, shielded; 2 x 0.5 mm² (twisted pairs ) + 2 x 0.5 mm² (twisted pairs )
Connection	Connector:AMP MQS, straight; Moulded body: PBT; Contacts: tin-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12736-00 — 05.10.2020 —
