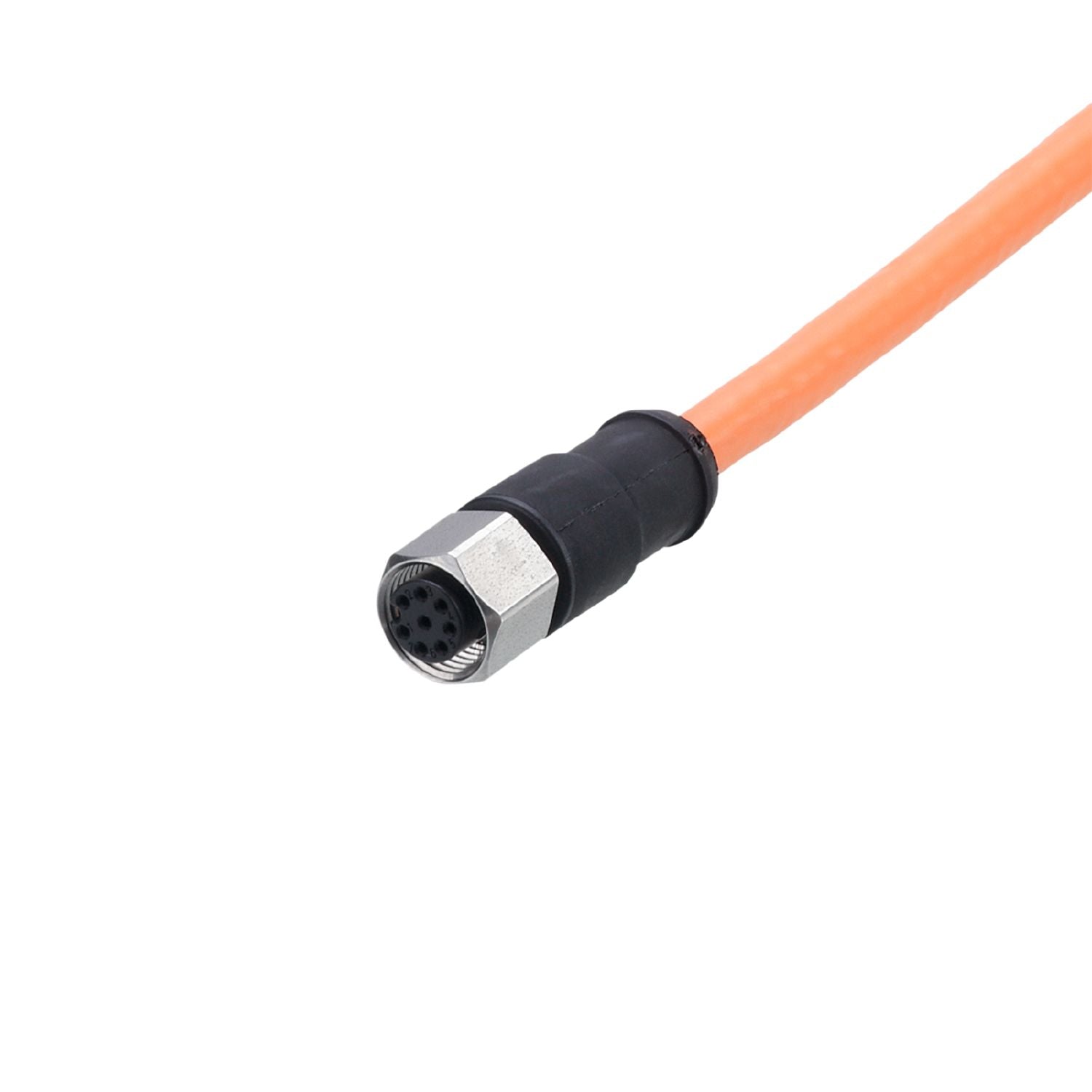

IFM E12751 - Connecting cable with socket ADOGH080VAS0010G08

Special feature	Screened cable

Operating voltage [V]	< 30 AC/DC
Protection class	III

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Weight [g]	712.4
Dimensions [mm]	26.5 x 15 x 38.5
Materials	PVC; PUR
Moulded-body material	PUR
Material nut	stainless steel

Pack quantity	1 pcs.

Electrical connection

	Cable: 10 m, PVC, orange, Ø 6.6 mm, shielded; 8 x 0.25 mm² (14 x Ø 0.15 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PUR, black; Locking: stainless steel; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen connected
