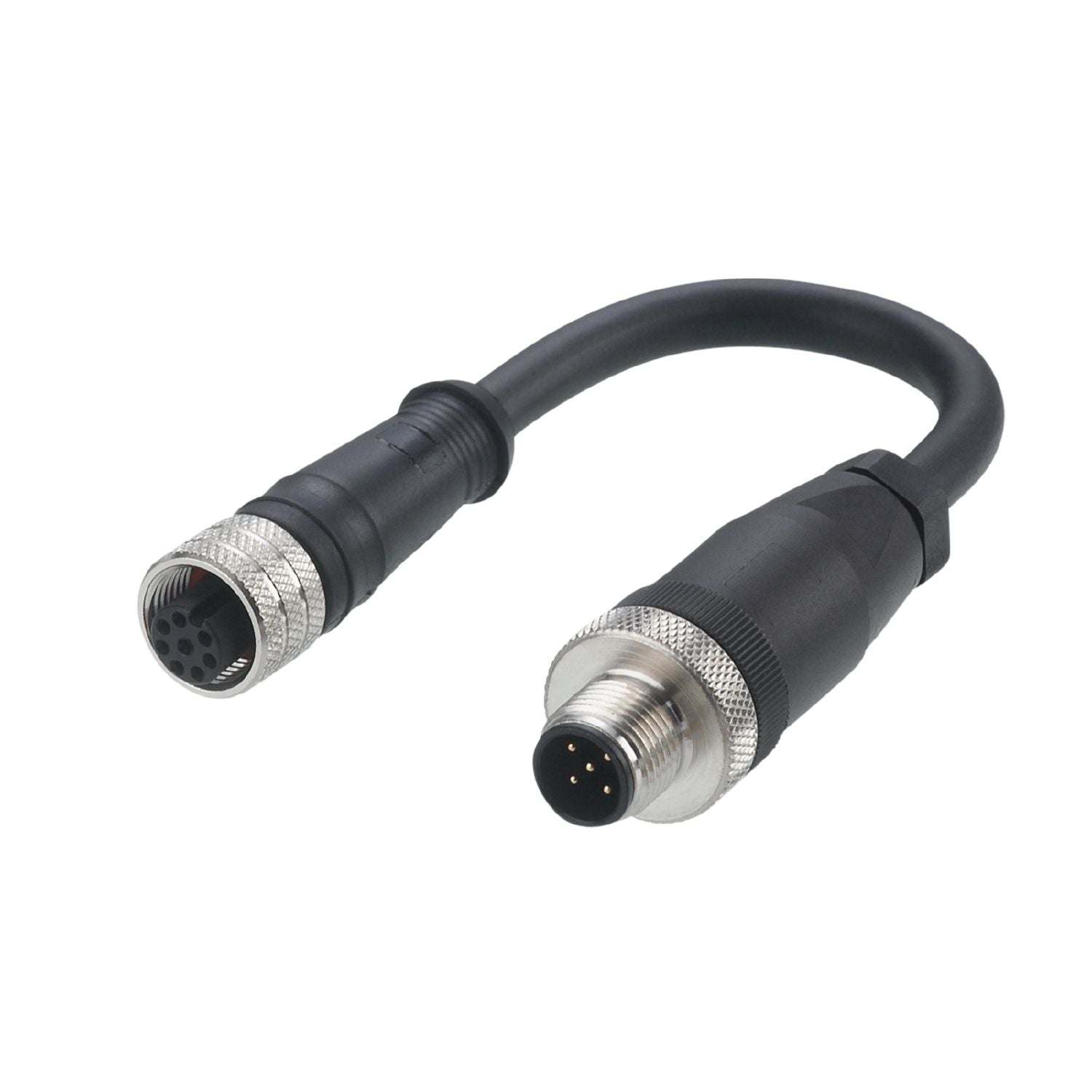

IFM E12784 - Connection cable VDOGH080MSS00,1H04STGH040MSS

Special feature	Free from silicone; Halogen-free; Gold-plated contacts
Application	use on safety light grids and PROFIsafe IO-Link modules
Free from silicone	yes

Operating voltage [V]	< 36 DC
Protection class	II
Max. current load total [A]	2;(...40 °C)

Operating conditions

Protection	IP 67

Weight [g]	47
Moulded-body material	PA / TPU
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: PA, black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...0.7 Nm

Electrical connection

Connection	Cable: 0.1 m, PUR, Halogen-free, black, Ø 6.6 mm; 8 x 0.25 mm²

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
