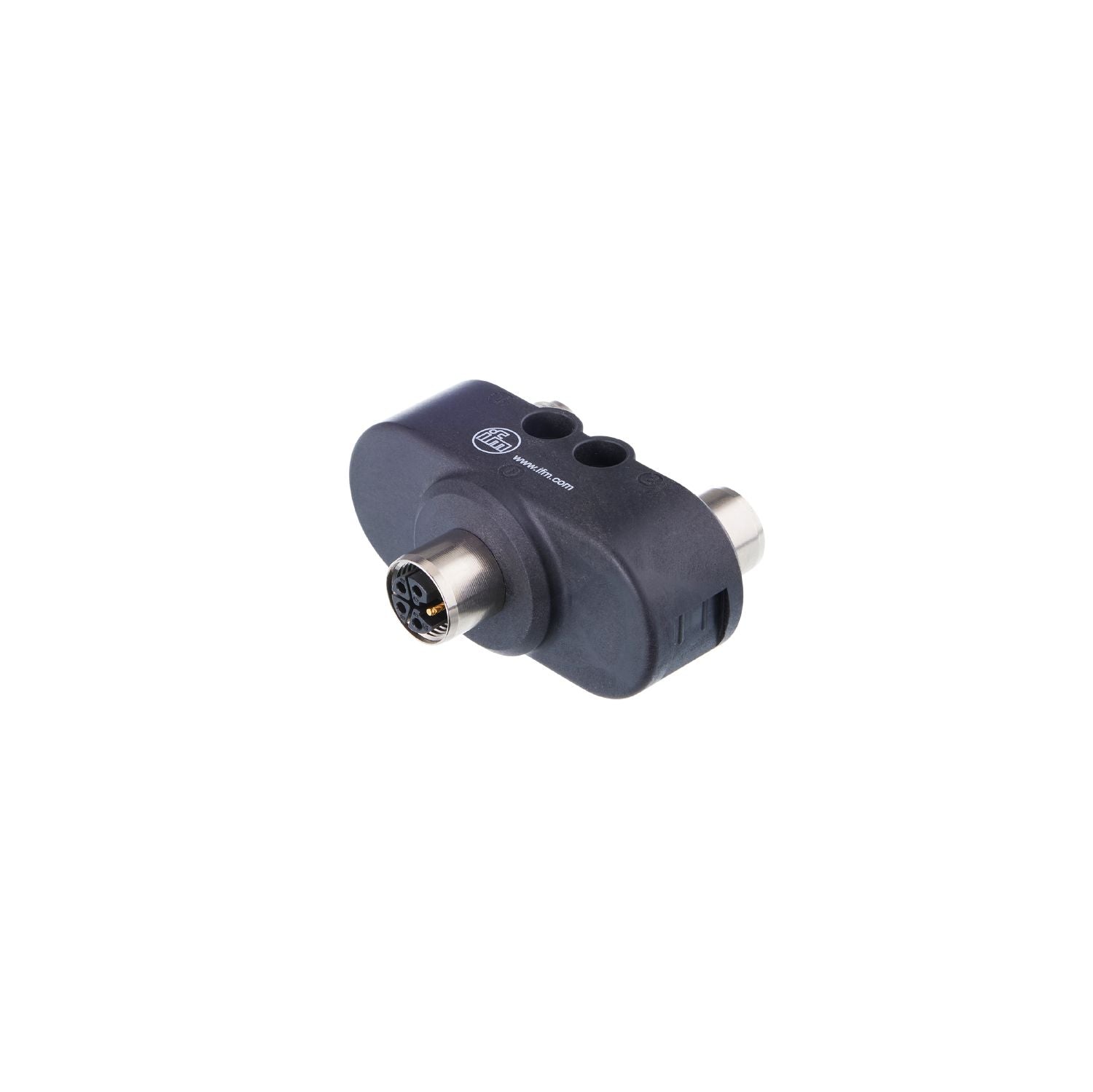

IFM E12787 - Y-splitter ZDO2E030MSS0000-00STGE030MSS

Resistant to oils and coolants.
Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
High power transmission thanks to high current rating.
Actuator supply (UA) branching from the daisy chain power supply

Special feature	Gold-plated contacts
Application	actuator supply (UA) branching

Operating voltage [V]	< 63 DC
Protection class	III
Max. current load total [A]	16;(40 °C)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65

Weight [g]	99.35
Moulded-body material	PBT
Material nut	brass, nickel-plated
Sealing material	HNBR

Accessories

Items supplied	labels: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: L; Moulded body: PBT, black; Locking: brass, nickel-plated; Contacts: gold-plated

Electrical connection - socket

	Connector: 2 x M12; coding: L; Moulded body: PBT, black; Locking: brass, nickel-plated; Sealing: HNBR; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12787-00 — 09.01.2024 —
