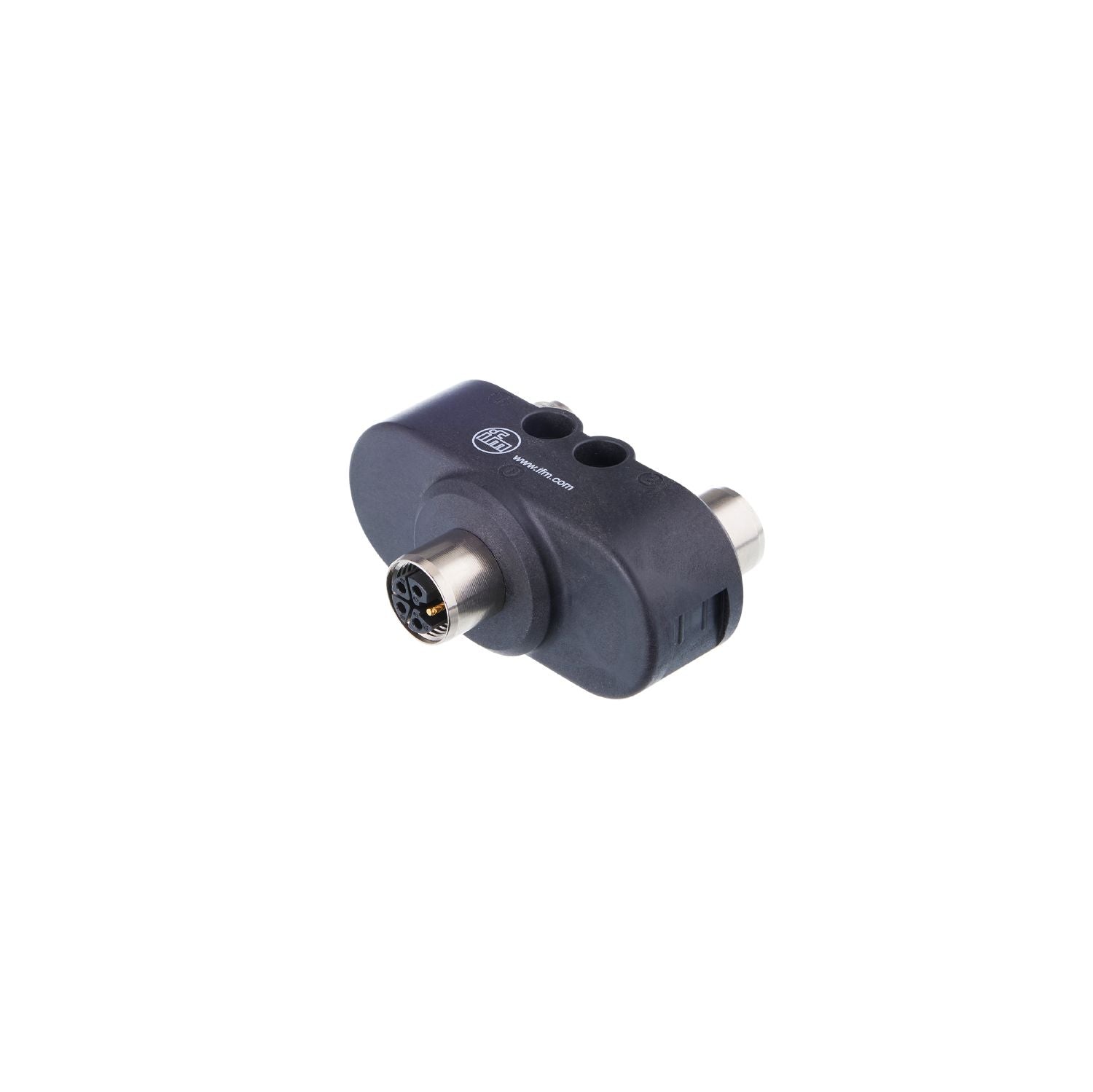

IFM E12788 - Y-splitter ZDO2E050MSS0000-00STGE050MSS

Resistant to oils and coolants.
Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
High power transmission thanks to high current rating

Special feature	Gold-plated contacts

Operating voltage [V]	< 63 DC
Protection class	III
Max. current load total [A]	16;(40 °C)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65

Weight [g]	99.95
Moulded-body material	PBT
Material nut	brass, nickel-plated
Sealing material	HNBR

Accessories

Items supplied	labels: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: L; Moulded body: PBT, black; Locking: brass, nickel-plated; Contacts: gold-plated

Electrical connection - socket

	Connector: 2 x M12; coding: L; Moulded body: PBT, black; Locking: brass, nickel-plated; Sealing: HNBR; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12788-00 — 09.01.2024 —
