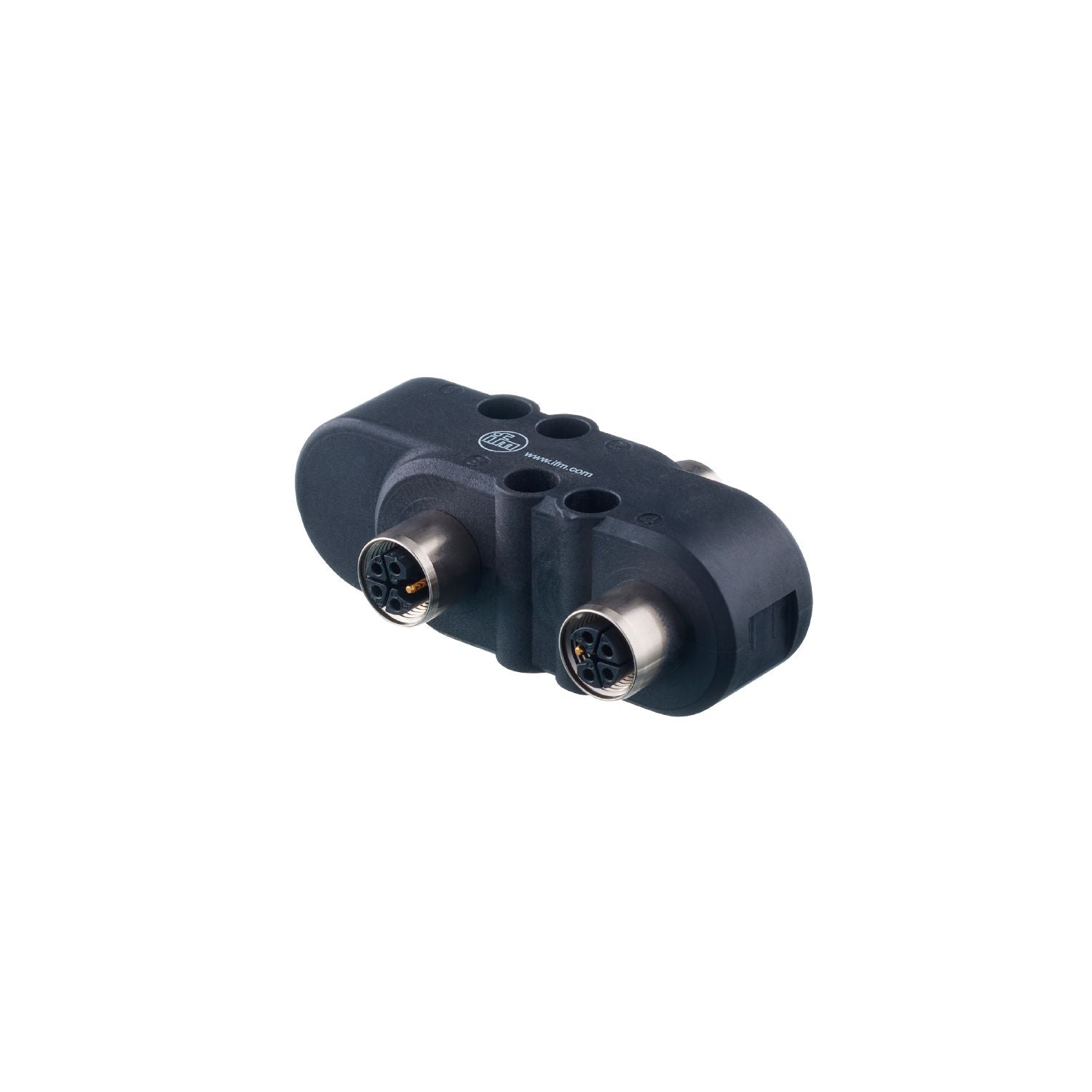

IFM E12789 - H splitter ZDO3E050MSS0000-00STGE050MSS

Large cable cross-section for reducing the voltage drop and transferring higher currents.
Resistant to oils and coolants.
Permanent, reliable sealing even when mounted without tools

Special feature	Gold-plated contacts

Operating voltage [V]	< 63 DC
Protection class	III
Max. current load total [A]	16;(40 °C)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65

Weight [g]	130.7
Moulded-body material	PBT
Material nut	brass, nickel-plated
Sealing material	HNBR

Accessories

Items supplied	labels: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: L; Moulded body: PBT, black; Locking: brass, nickel-plated; Contacts: gold-plated

Electrical connection - socket

	Connector: 3 x M12; coding: L; Moulded body: PBT, black; Locking: brass, nickel-plated; Sealing: HNBR; Contacts: gold-plated
