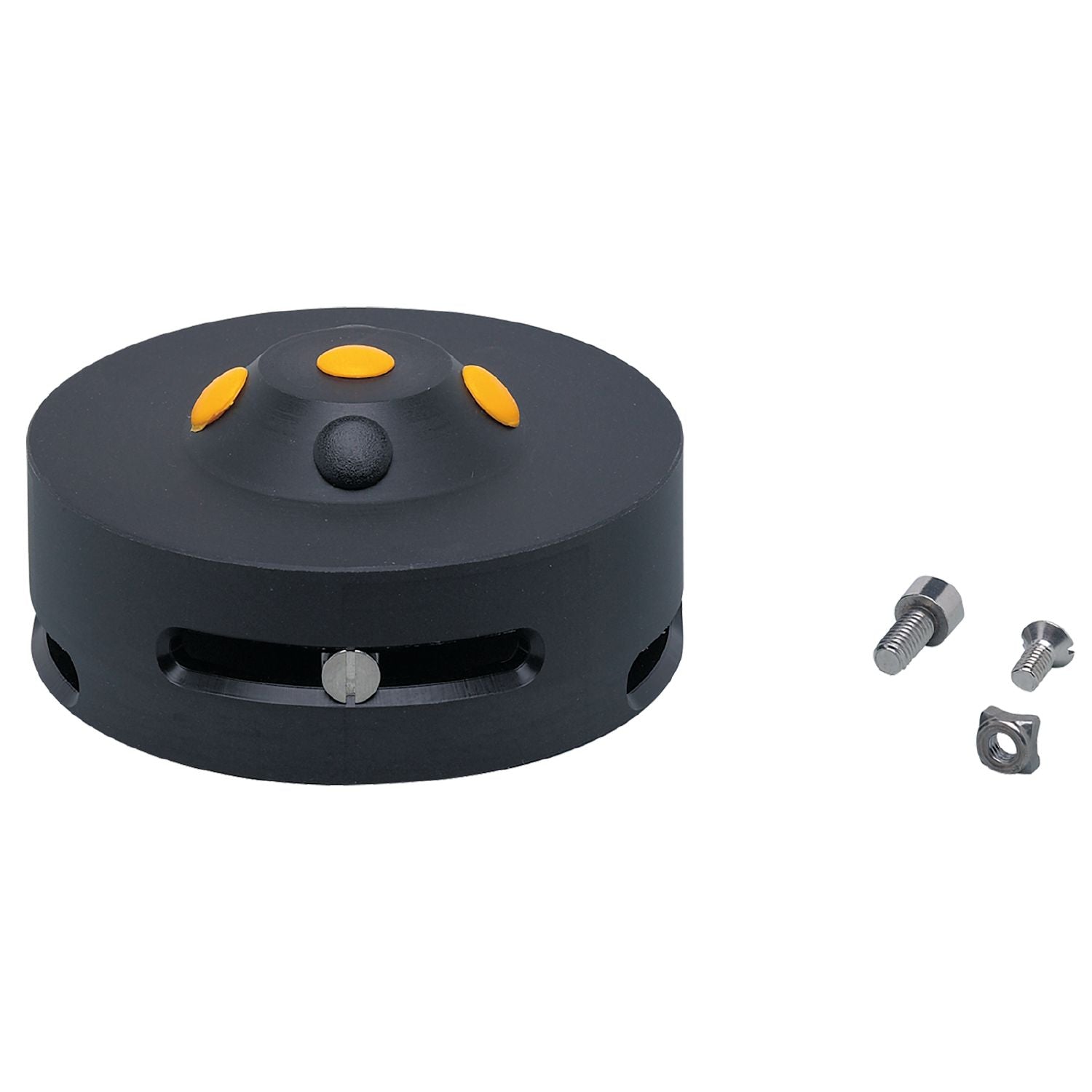

IFM E17119 - Target puck for valve actuators Puck d=102mm

For monitoring valve positions.
For reliable position feedback on valve actuators.
Easy mounting directly on the shaft of the drive.
Non-contact and self-cleaning system.
Selectable position of the damping screws

Design	for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337

Weight [g]	192.5
Target puck diameter [mm]	102
Hole spacing [mm]	130
Shaft height of valve drive [mm]	30
Materials	target puck: PVC black; screws: stainless steel (1.4571/316Ti )

Pack quantity	1 pcs.
