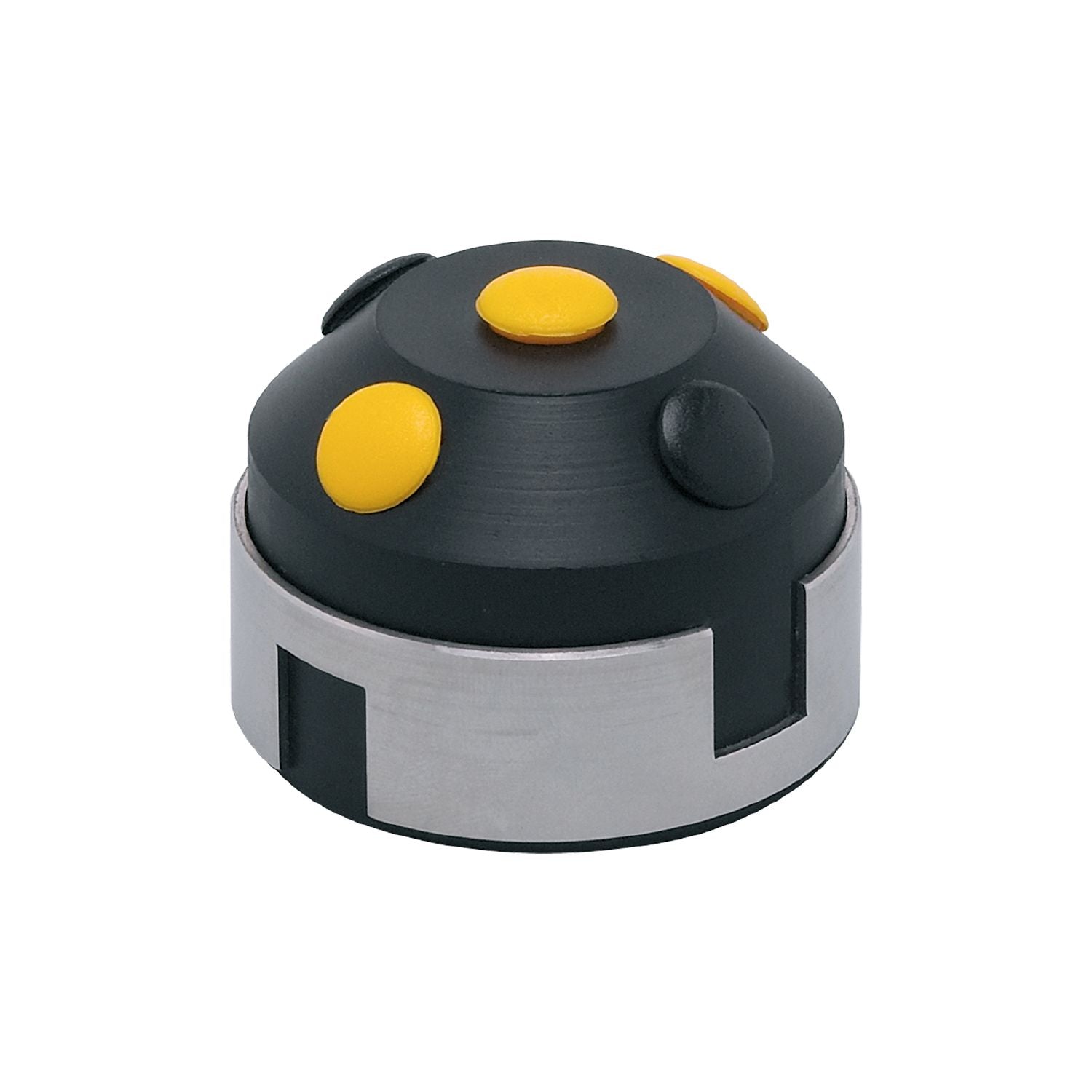

IFM E17205 - Target puck for valve actuators PUCK/INVERTED FUNCTION

For monitoring valve positions.
For reliable position feedback on valve actuators.
Easy mounting directly on the shaft of the drive.
Non-contact and self-cleaning system.
Indication of valve position by coloured direction indicators

Design	for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337

Weight [g]	117.5
Target puck diameter [mm]	55
Hole spacing [mm]	80
Shaft height of valve drive [mm]	20
Materials	target puck: PVC black; screws: stainless steel; metal ring: stainless steel

Pack quantity	1 pcs.
