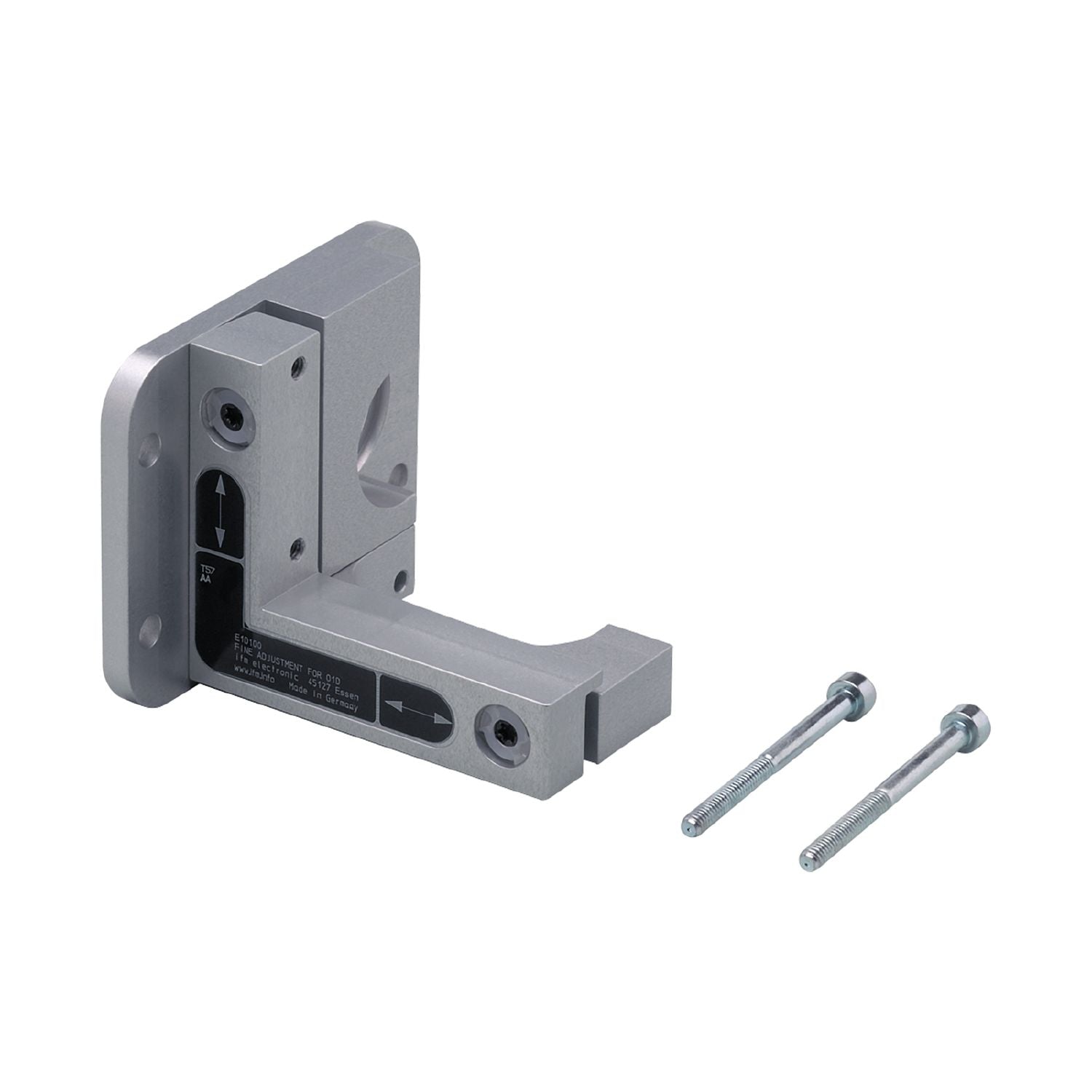

IFM E1D100 - Fixture for mounting and fine adjustment of laser sensors FINE ADJUSTMENT FOR O1D

User-friendly alignment of the laser beam to a laser receiver or prismatic reflector.
High vibration resistance.
Easy, quick and inexpensive fixing.
Robust design for use in harsh industrial environments.
For mounting to a clamp

Design	clamp mounting

Weight [g]	190.5
Type of mounting	rod or free-standing depending on the clamp
Dimensions [mm]	58 x 75 x 70
Materials	fixture: aluminium uncoloured anodised; plastics: POM; screws: stainless steel

Pack quantity	1 pcs.
