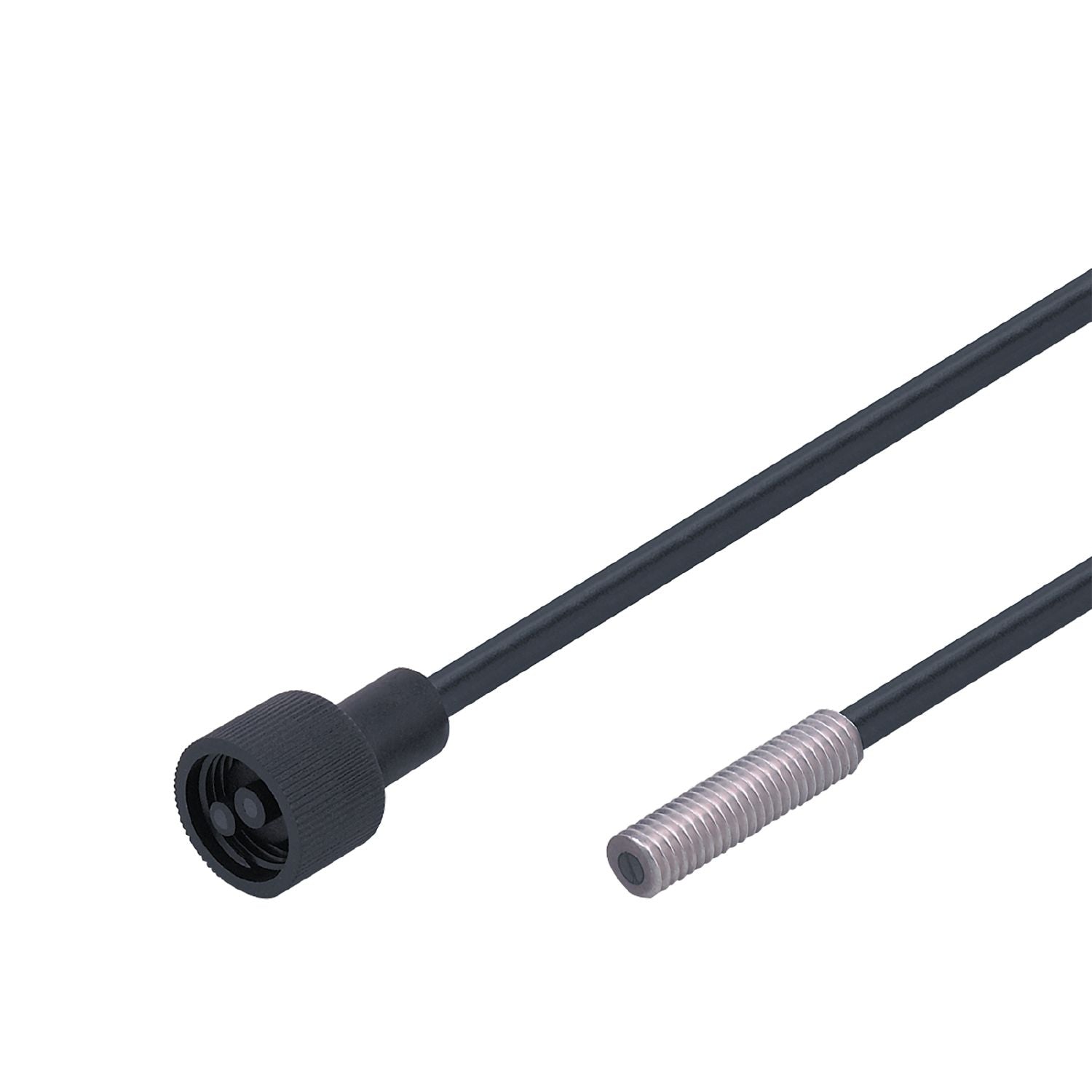

IFM E20051 - Fibre optic diffuse reflection sensor FT-00-P-A-M6

For installation in places where access is difficult.
Operation as diffuse reflection sensor.
Long range.
Resistant to various aggressive chemicals.
Small bending radius

Function principle	Diffuse reflection sensor
Application	For use in industrial environments

Detection zone

Range with fibre optic amplifier type	OCF; OKF; OOF; OUF

Range fibre optics [mm]	330

Range fibre optics [mm]	40

Range fibre optics [mm]	200

Range fibre optics [mm]	40

Operating conditions

Ambient temperature [°C]	-20...80

Weight [g]	42.5
Version of sensing head	straight
Sensing head thread	M6
Sensing head length [mm]	25
Total length [mm]	600;(+20 mm)
Min. bending radius [mm]	20
Fibre arrangement
Fibre material	glass
Fibre head material	aluminium
Fibre sheath material	PVC

Accessories

Items supplied	hexagon nuts: 2 x M6, stainless steel tooth lock washers: 2 knurled nut: 1 x M11

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20051-00 — 20.09.2022 —
