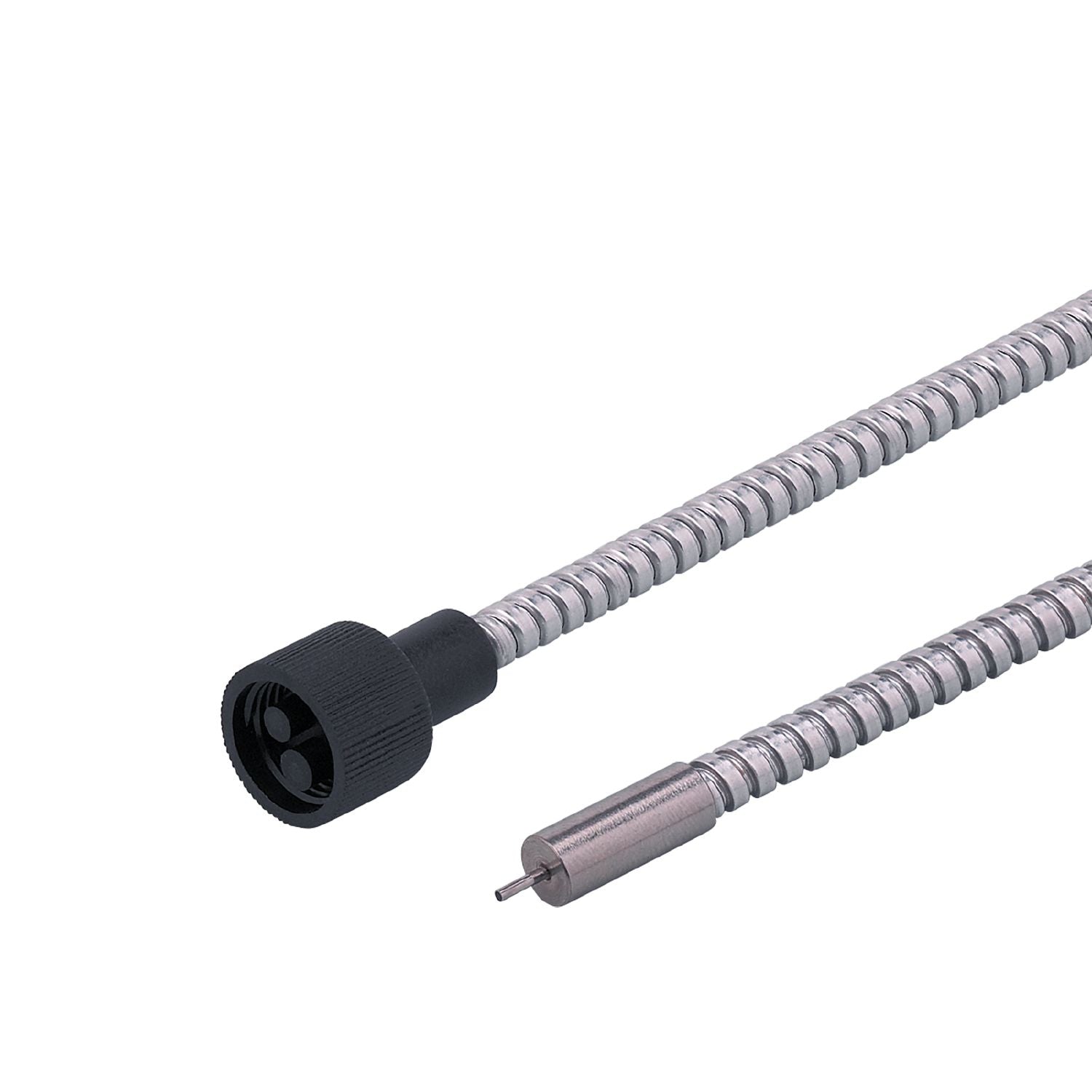

IFM E20057 - Fibre optic diffuse reflection sensor FT-00-A-V-E1

For applications in high-temperature areas.
Aluminium sheathing for use up to 290 °C.
For use at short range.
Reliable detection of tiny objects.
Small bending radius

Function principle	Diffuse reflection sensor
Application	High temperature resistance; Robust design for use in harsh industrial environments

Detection zone

Range with fibre optic amplifier type	OCF; OKF; OOF; OUF

Range fibre optics [mm]	40

Range fibre optics [mm]	8

Range fibre optics [mm]	24

Range fibre optics [mm]	8

Operating conditions

Ambient temperature [°C]	-40...290

Weight [g]	46
Version of sensing head	straight
Sensing head diameter [mm]	1
Sensing head length [mm]	5
Total length [mm]	600
Min. bending radius [mm]	20;(for fixed installation)
Fibre arrangement
Materials	Adapter: ABS
Fibre material	glass
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	aluminium

Accessories

Items supplied	E20103

Pack quantity	1 pcs.
