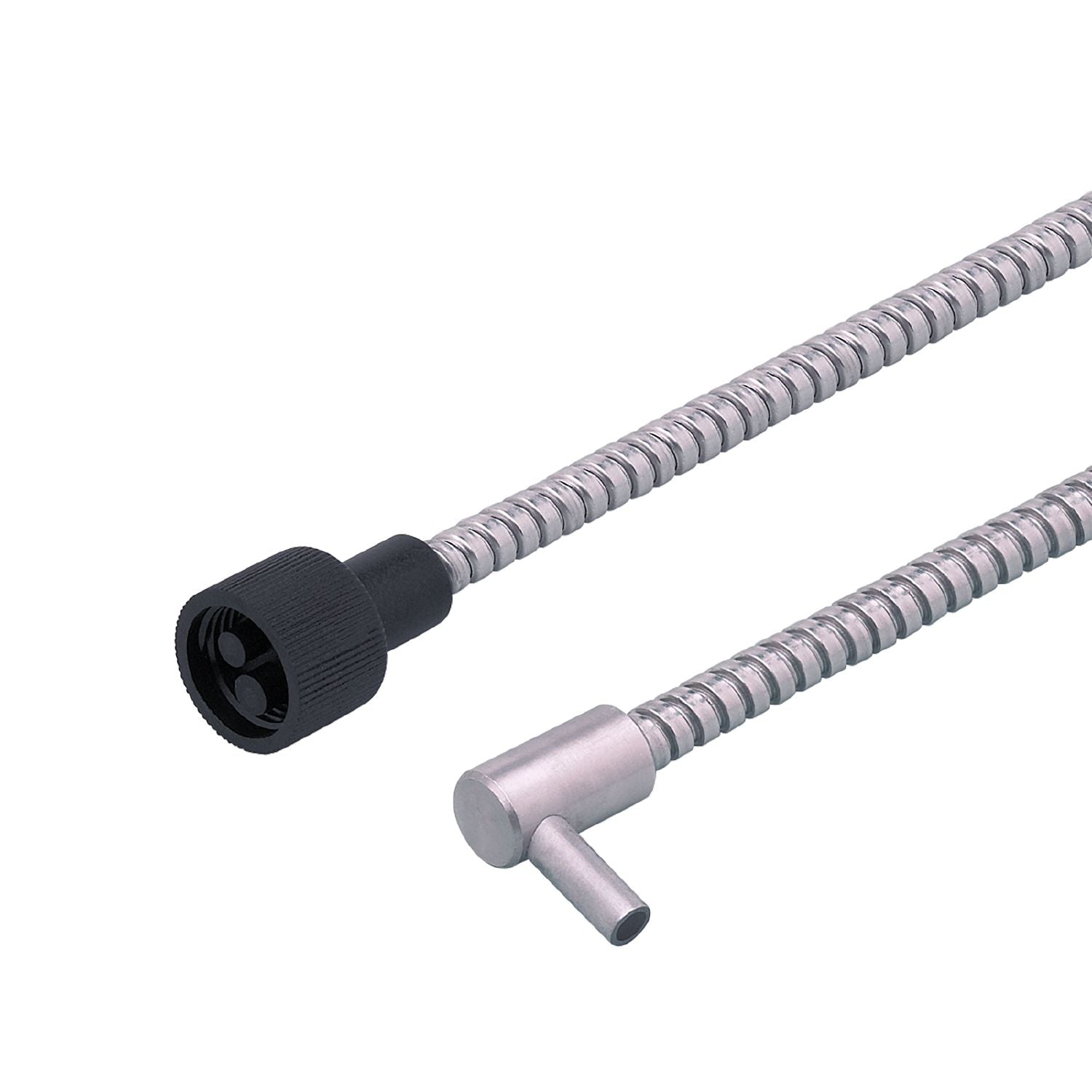

IFM E20058 - Fibre optic diffuse reflection sensor FT-00-A-A-R4

For applications in high-temperature areas.
Aluminium sheathing for use up to 290 °C.
Long range.
Angled type for use where space is restricted.
Small bending radius

Function principle	Diffuse reflection sensor
Application	For use in industrial environments; Robust design for use in harsh industrial environments

Detection zone

Range with fibre optic amplifier type	OCF; OKF; OOF; OUF

Range fibre optics [mm]	290

Range fibre optics [mm]	40

Range fibre optics [mm]	200

Range fibre optics [mm]	40

Operating conditions

Ambient temperature [°C]	-40...290

Weight [g]	51.5
Version of sensing head	angled
Sensing head diameter [mm]	4
Sensing head length [mm]	10
Total length [mm]	600
Min. bending radius [mm]	20;(for fixed installation)
Fibre arrangement
Materials	Adapter: ABS
Fibre material	glass
Fibre head material	aluminium
Fibre sheath material	aluminium

Accessories

Items supplied	Mounting clamp:, E10221

Pack quantity	1 pcs.
