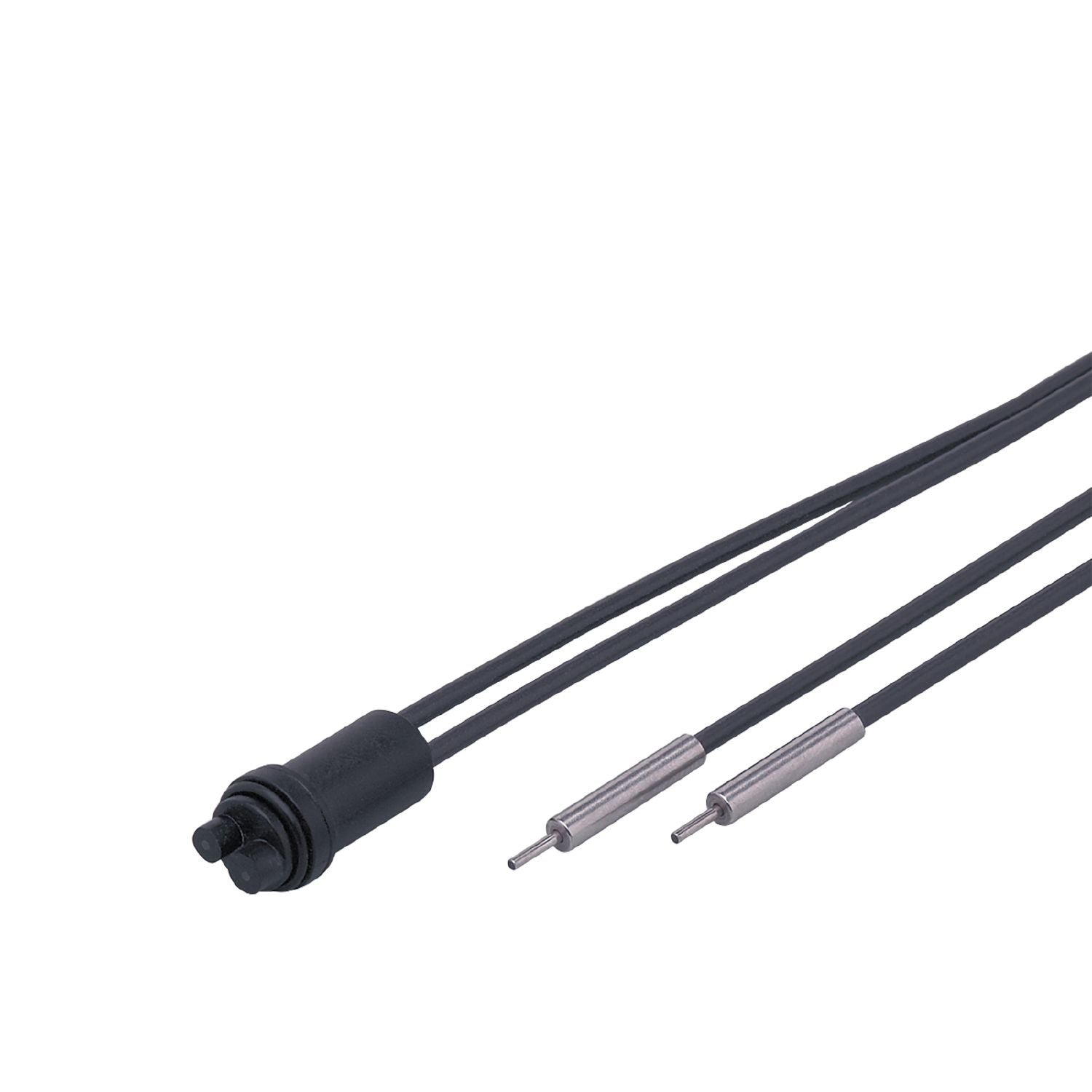

IFM E20061 - Fibre optic through-beam sensor FE-00-P-V-E1

For installation in places where access is difficult.
Operation as through-beam sensor.
Long range.
Resistant to various aggressive chemicals.
Very small bending radius

Function principle	Through-beam sensor
Application	Small bending radius

Detection zone

Range with fibre-optic amplifier type	OCF; OKF; OOF; OUF

Range of fibre optics [mm]	420

Range of fibre optics [mm]	50

Range of fibre optics [mm]	160

Range of fibre optics [mm]	50

Operating conditions

Ambient temperature [°C]	-20...80

Weight [g]	49
Version of sensing head	straight
Sensing head diameter [mm]	1
Sensing head length [mm]	5
Total length [mm]	600
Min. bending radius [mm]	10
Fibre arrangement
Materials	Adapter: PPE
Fibre material	glass
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	PVC

Accessories

Items supplied	Mounting clamp:, E20107

Pack quantity	1 pcs.
