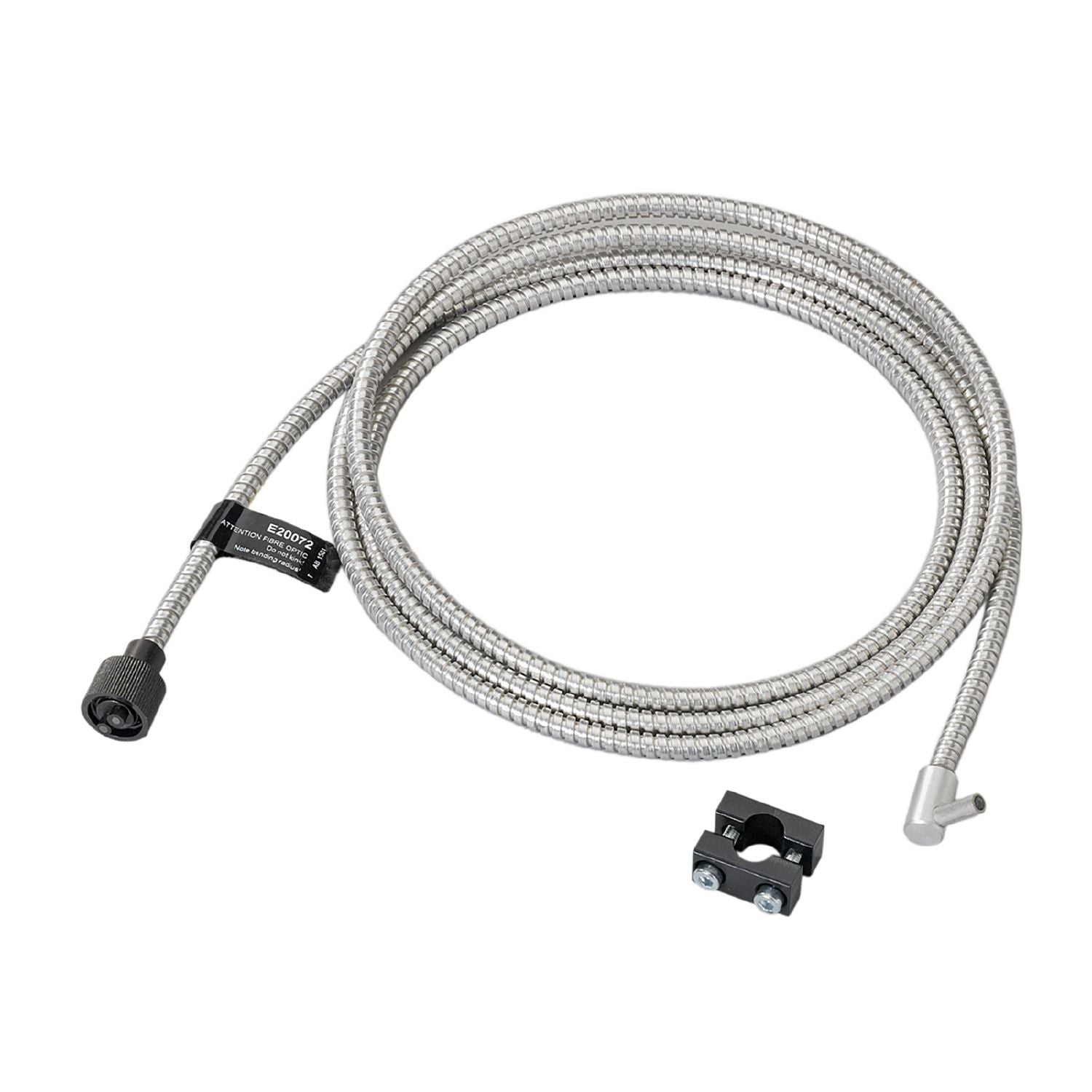

IFM E20072 - Fibre optic diffuse reflection sensor FT-00-A-A-R4/1,5

For applications in high-temperature areas.
Aluminium sheathing for use up to 290 °C.
Installation in places where access is difficult.
Angled type for use where space is restricted.
Small bending radius

Function principle	Diffuse reflection sensor
Application	High temperature resistance; Robust design for use in harsh industrial environments

Detection zone

Range with fibre optic amplifier type	OKF; OUF; OOF

Range fibre optics [mm]	36

Range fibre optics [mm]	180

Range fibre optics [mm]	36

Operating conditions

Ambient temperature [°C]	-40...290

Weight [g]	72
Version of sensing head	angled
Sensing head diameter [mm]	4
Sensing head length [mm]	10
Total length [mm]	1500
Min. bending radius [mm]	20;(for fixed installation)
Fibre arrangement
Materials	Adapter: ABS
Fibre material	glass
Fibre head material	aluminium
Fibre sheath material	aluminium

Accessories

Items supplied	Mounting clamp:, E10221

Pack quantity	1 pcs.
