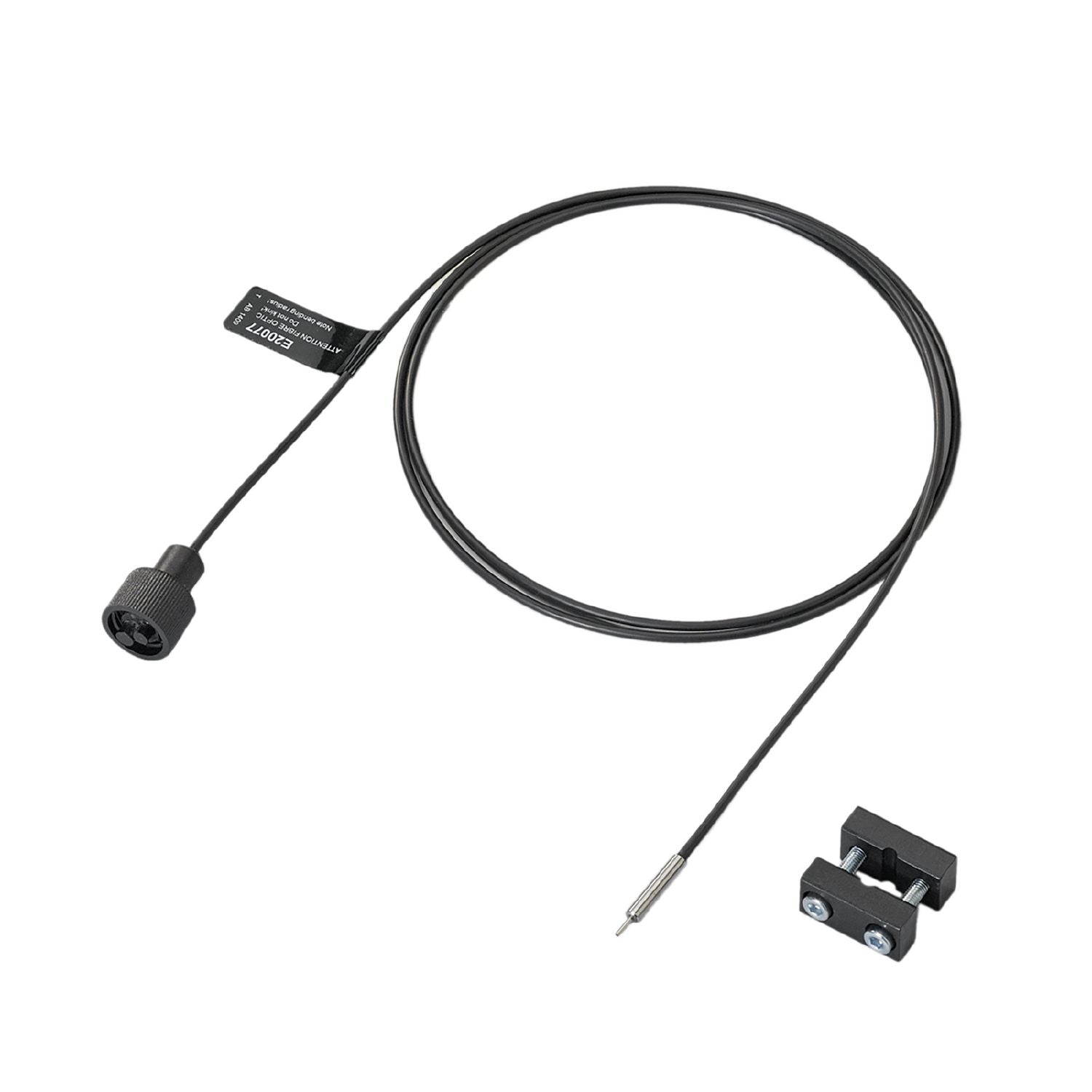

IFM E20077 - Fibre optic diffuse reflection sensor FT-00-P-V-E1/1M

For installation in places where access is difficult.
Operation as diffuse reflection sensor.
For use at short range.
Resistant to various aggressive chemicals.
Small bending radius

Function principle	Diffuse reflection sensor
Application	For use in industrial environments

Detection zone

Range with fibre optic amplifier type	OKF; OUF; OOF

Range fibre optics [mm]	8

Range fibre optics [mm]	24

Range fibre optics [mm]	8

Operating conditions

Ambient temperature [°C]	-20...80

Weight [g]	41
Version of sensing head	straight
Sensing head diameter [mm]	1
Sensing head length [mm]	5
Total length [mm]	1000
Min. bending radius [mm]	20
Fibre arrangement
Materials	Adapter: PPE
Fibre material	glass
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	PVC

Accessories

Items supplied	Mounting clamp:, E20107

Pack quantity	1 pcs.
