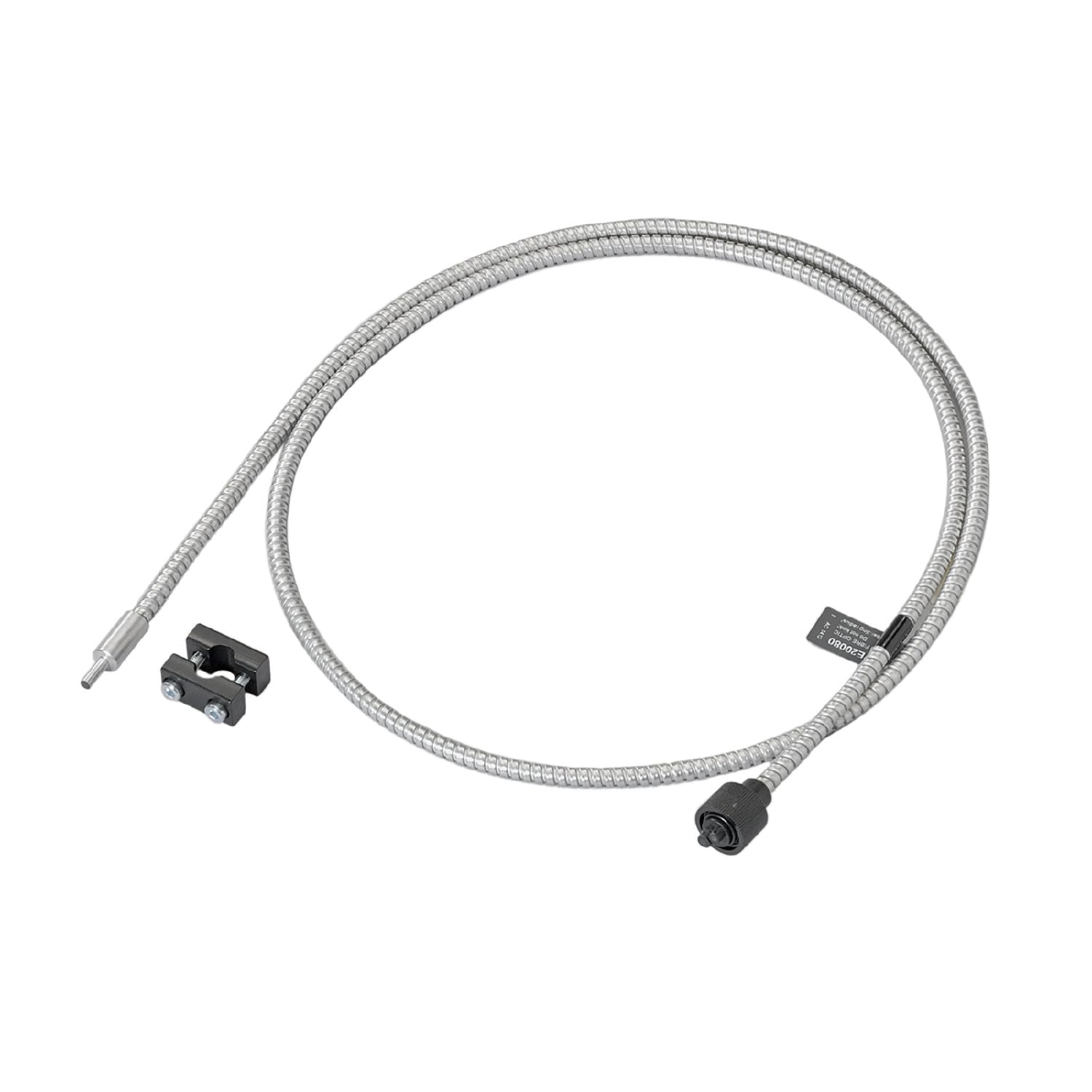

IFM E20080 - Fibre optic diffuse reflection sensor FT-00-A-A-E3/1M

For applications in high-temperature areas.
Aluminium sheathing for use up to 290 °C.
Long range.
Resistant to various aggressive chemicals.
Small bending radius

Function principle	Diffuse reflection sensor
Application	High temperature resistance; Robust design for use in harsh industrial environments

Detection zone

Range with fibre optic amplifier type	OCF; OKF; OOF; OUF

Range fibre optics [mm]	320

Range fibre optics [mm]	40

Range fibre optics [mm]	200

Range fibre optics [mm]	40

Operating conditions

Ambient temperature [°C]	-40...290

Weight [g]	63
Version of sensing head	straight
Sensing head diameter [mm]	3
Total length [mm]	1000
Min. bending radius [mm]	20;(for fixed installation)
Fibre arrangement
Materials	Adapter: ABS
Fibre material	glass
Fibre head material	aluminium
Fibre sheath material	aluminium

Accessories

Items supplied	E20102

Pack quantity	1 pcs.
