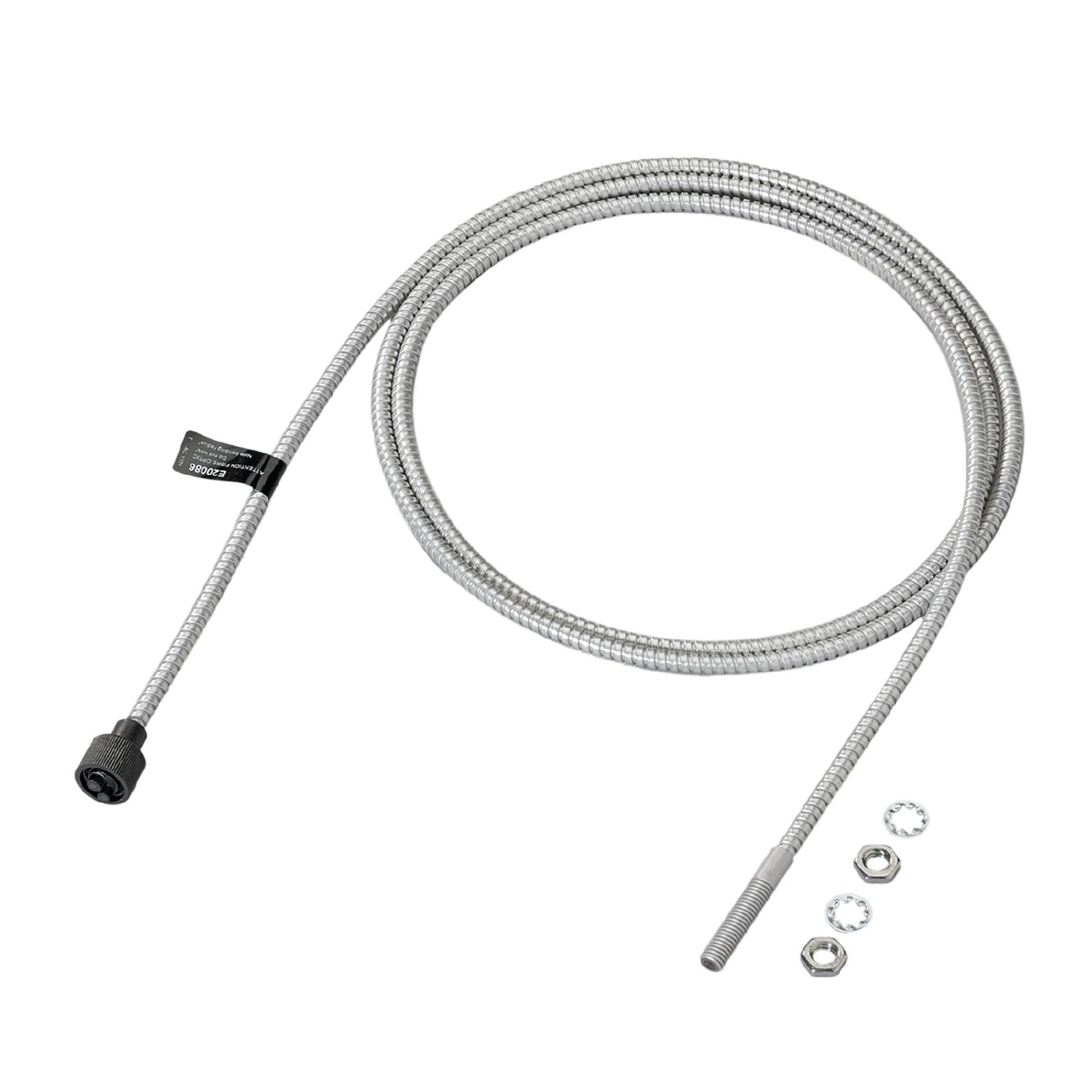

IFM E20086 - Fibre optic diffuse reflection sensor FT-00-A-A-M6/1,5M

For applications in high-temperature areas.
Aluminium sheathing for use up to 290 °C.
Long range.
Resistant to various aggressive chemicals.
Small bending radius

Function principle	Diffuse reflection sensor
Application	High temperature resistance; Robust design for use in harsh industrial environments

Detection zone

Range with fibre optic amplifier type	OCF; OKF; OUF

Range fibre optics [mm]	270

Range fibre optics [mm]	36

Range fibre optics [mm]	36

Operating conditions

Ambient temperature [°C]	-40...290

Weight [g]	72.5
Version of sensing head	straight
Sensing head thread	M6
Sensing head length [mm]	35
Total length [mm]	1500
Min. bending radius [mm]	20;(for fixed installation)
Fibre arrangement
Materials	Adapter: ABS
Fibre material	glass
Fibre head material	aluminium
Fibre sheath material	aluminium

Accessories

Items supplied	hexagon nuts: 2 x M6, stainless steel tooth lock washers: 2 knurled nut: 1 x M11

Pack quantity	1 pcs.
