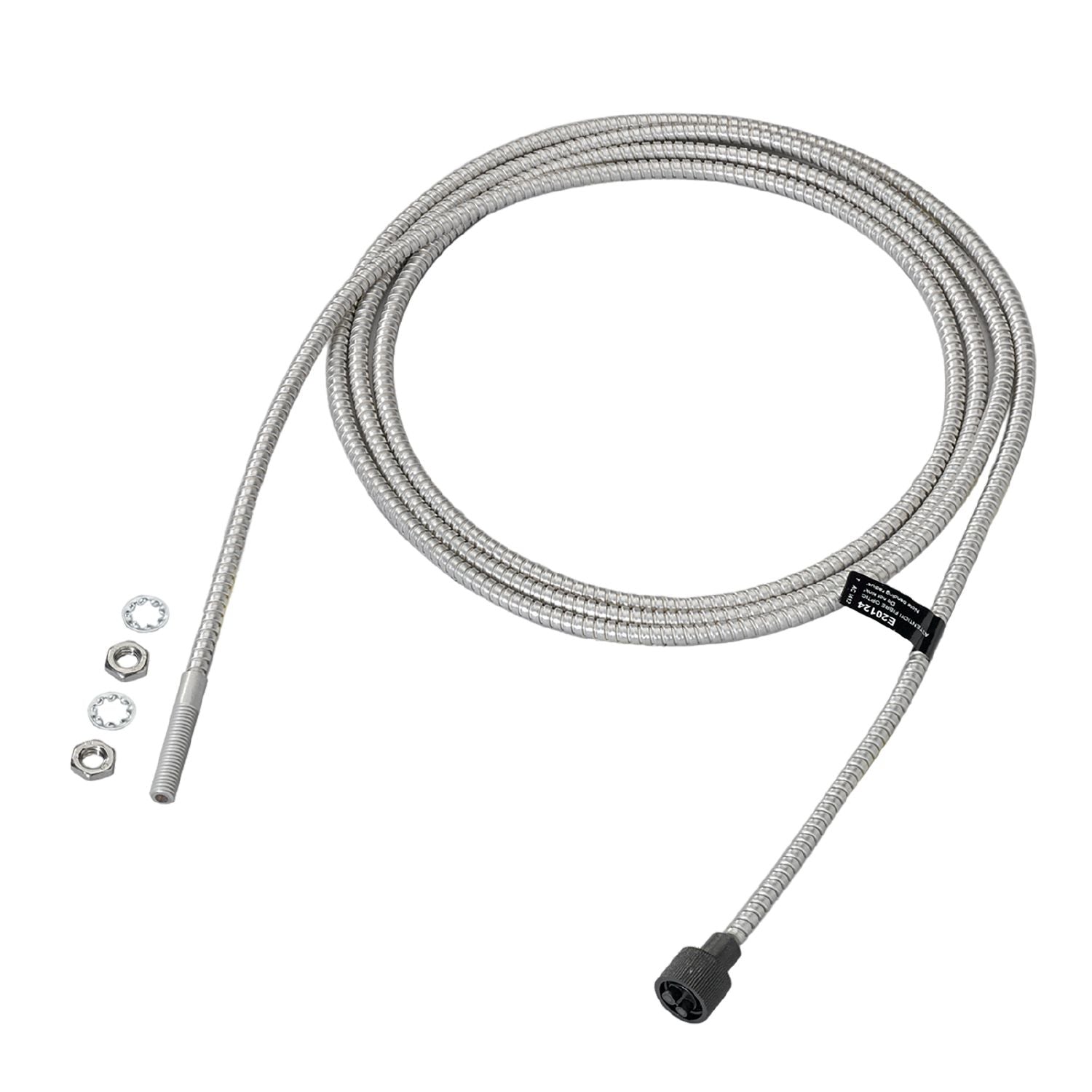

IFM E20124 - Fibre optic diffuse reflection sensor FT-00-A-A-M6/2M

For applications in high-temperature areas.
Aluminium sheathing for use up to 290 °C.
For use at short range.
Resistant to various aggressive chemicals.
Small bending radius

Function principle	Diffuse reflection sensor
Application	High temperature resistance; Robust design for use in harsh industrial environments

Detection zone

Range with fibre optic amplifier type	OCF; OKF; OOF; OUF

Range fibre optics [mm]	300

Range fibre optics [mm]	32

Range fibre optics [mm]	160

Range fibre optics [mm]	32

Operating conditions

Ambient temperature [°C]	-40...290

Weight [g]	87.5
Version of sensing head	straight
Sensing head thread	M6
Sensing head length [mm]	35
Total length [mm]	2000
Min. bending radius [mm]	20;(for fixed installation)
Fibre arrangement
Materials	Adapter: ABS
Fibre material	glass
Fibre head material	aluminium
Fibre sheath material	aluminium

Accessories

Items supplied	hexagon nuts: 2 x M6, stainless steel tooth lock washers: 2 knurled nut: 1 x M11

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20124-00 — 20.09.2022 —
