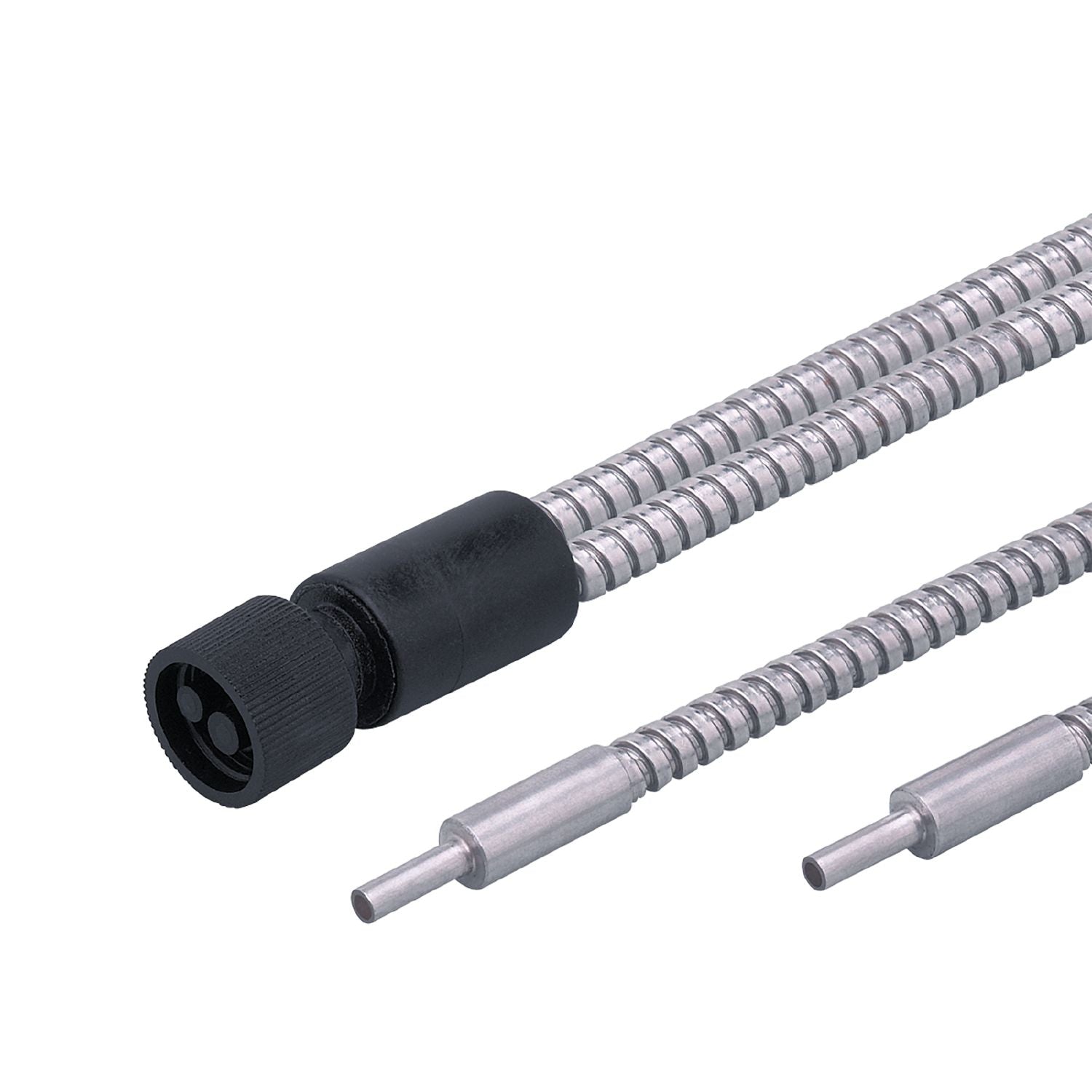

IFM E20130 - Fibre optic through-beam sensor FE-00-A-A-E3

For applications in high-temperature areas.
Aluminium sheathing for use up to 290 °C.
Long range.
Resistant to various aggressive chemicals.
Small bending radius

Function principle	Through-beam sensor
Application	High temperature resistance; Robust design for use in harsh industrial environments

Detection zone

Range with fibre-optic amplifier type	OCF; OKF; OOF; OUF

Range of fibre optics [mm]	1200

Range of fibre optics [mm]	120

Range of fibre optics [mm]	400

Range of fibre optics [mm]	120

Operating conditions

Ambient temperature [°C]	-40...290

Weight [g]	69
Version of sensing head	straight
Sensing head diameter [mm]	3
Sensing head length [mm]	10
Total length [mm]	600
Min. bending radius [mm]	20;(for fixed installation)
Fibre arrangement
Materials	Adapter: ABS
Fibre material	glass
Fibre head material	aluminium
Fibre sheath material	aluminium

Accessories

Items supplied	E20103

Pack quantity	1 pcs.
