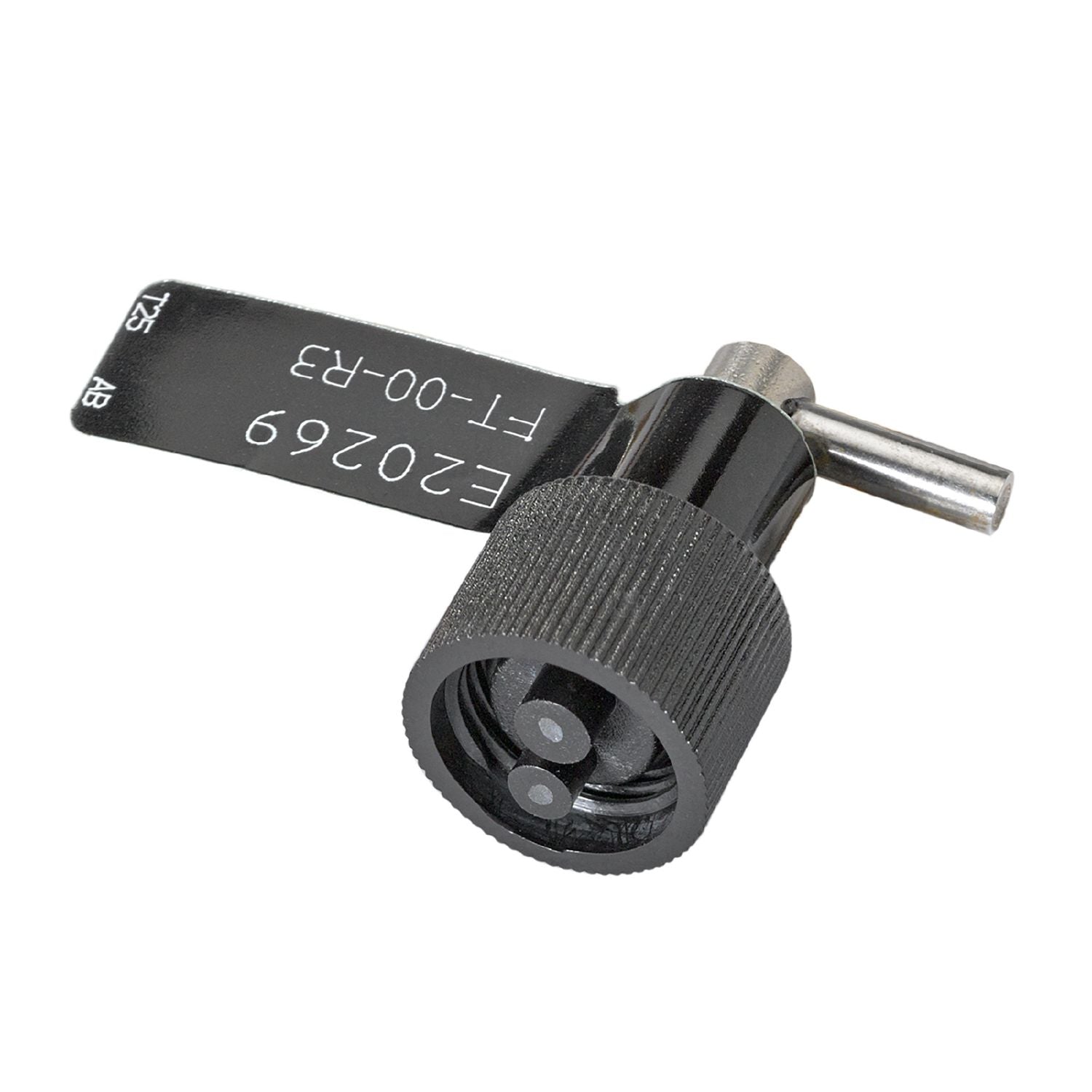

IFM E20269 - Fibre optic diffuse reflection sensor FT-00-R3

For installation in places where access is difficult.
Operation as diffuse reflection sensor.
For use at short range.
Angled type for use where space is restricted.
With direct adaptation to the fibre-optic amplifier

Function principle	Diffuse reflection sensor

Detection zone

Range with fibre optic amplifier type	OKF

Range fibre optics [mm]	25

Operating conditions

Ambient temperature [°C]	-20...80

Weight [g]	14
Version of sensing head	angled; with adapter for direct mounting
Sensing head diameter [mm]	3
Total length [mm]	24
Fibre arrangement
Materials	Lock nut: plastics
Fibre material	glass
Fibre head material	stainless steel (1.4305 / 303)

Pack quantity	1 pcs.
