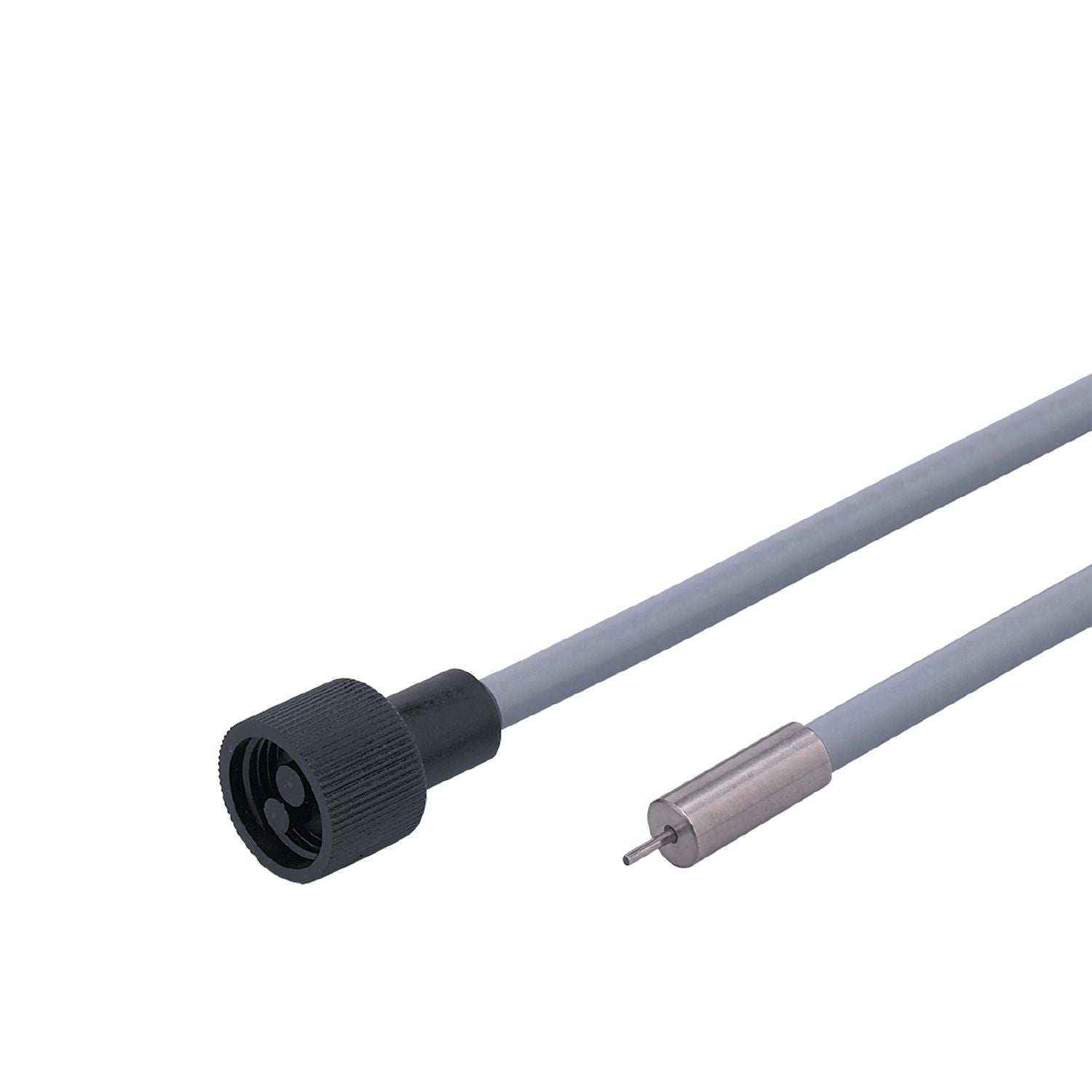

IFM E20507 - Fibre optic diffuse reflection sensor FT-00-M-V-E1

For applications in high-temperature areas.
Metal silicone sheathing for use up to 150 °C.
For installation in places where access is difficult.
Resistant to various aggressive chemicals.
Small bending radius

Function principle	Diffuse reflection sensor
Application	High temperature resistance; Robust design for use in harsh industrial environments; Resistant to various aggressive chemicals

Detection zone

Range with fibre optic amplifier type	OKF; OUF; OOF

Range fibre optics [mm]	8

Range fibre optics [mm]	24

Range fibre optics [mm]	8

Operating conditions

Ambient temperature [°C]	-20...150

Weight [g]	51
Version of sensing head	straight
Sensing head diameter [mm]	1
Sensing head length [mm]	5
Total length [mm]	600
Min. bending radius [mm]	20
Fibre arrangement
Fibre material	glass
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	metal silicone

Accessories

Items supplied	E20103

Pack quantity	1 pcs.
