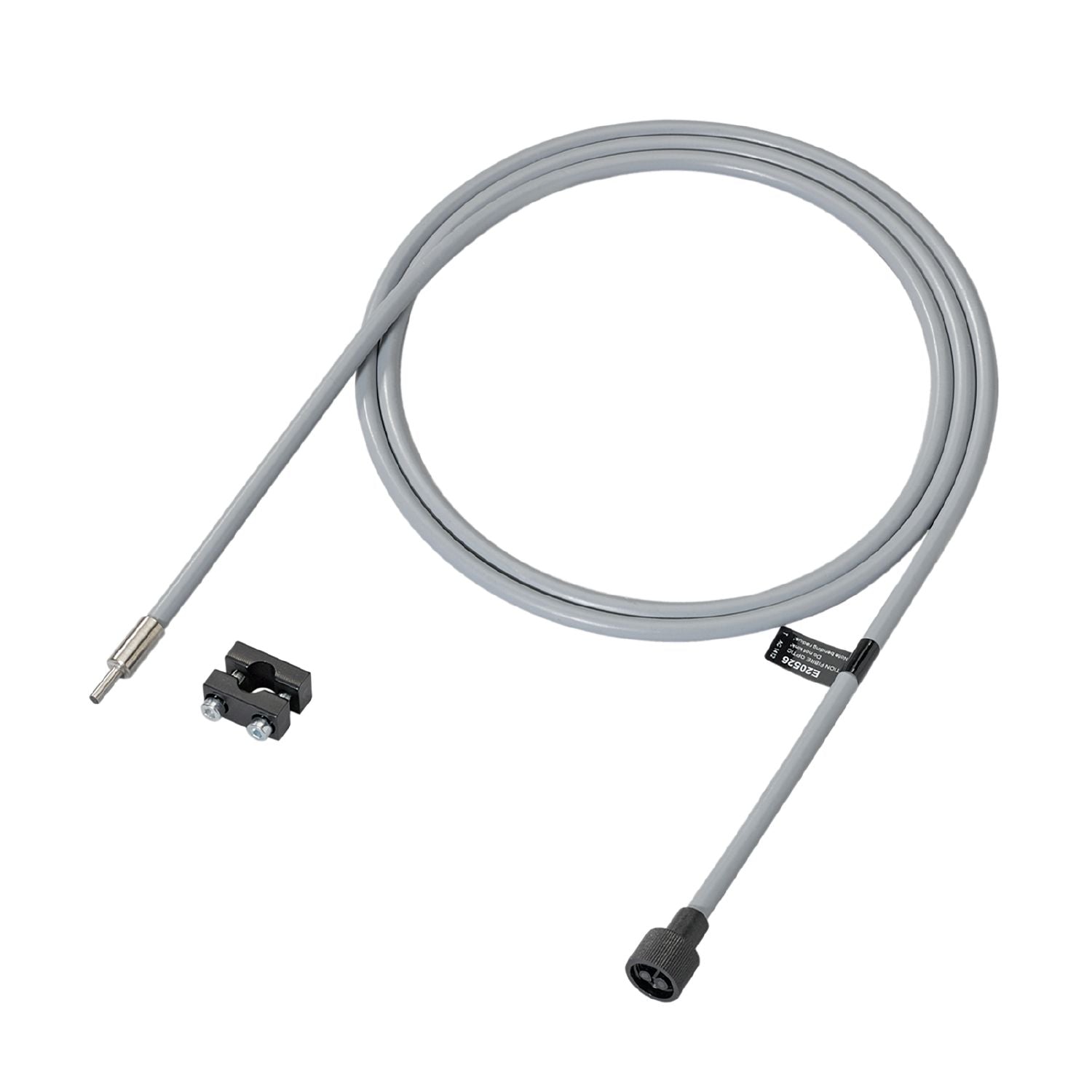

IFM E20526 - Fibre optic diffuse reflection sensor FT-00-M-V-E3/1,5M

For applications in high-temperature areas.
Metal silicone sheathing for use up to 150 °C.
For installation in places where access is difficult.
Resistant to various aggressive chemicals.
Small bending radius

Function principle	Diffuse reflection sensor
Application	High temperature resistance; Robust design for use in harsh industrial environments; Resistant to various aggressive chemicals

Detection zone

Range with fibre optic amplifier type	OCF; OKF; OOF; OUF

Range fibre optics [mm]	350

Range fibre optics [mm]	36

Range fibre optics [mm]	180

Range fibre optics [mm]	36

Operating conditions

Ambient temperature [°C]	-20...150

Weight [g]	108.5
Version of sensing head	straight
Sensing head diameter [mm]	3
Sensing head length [mm]	10
Total length [mm]	1500
Min. bending radius [mm]	20
Fibre arrangement
Fibre material	glass
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	metal silicone

Accessories

Items supplied	E20102

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20526-00 — 20.09.2022 —
