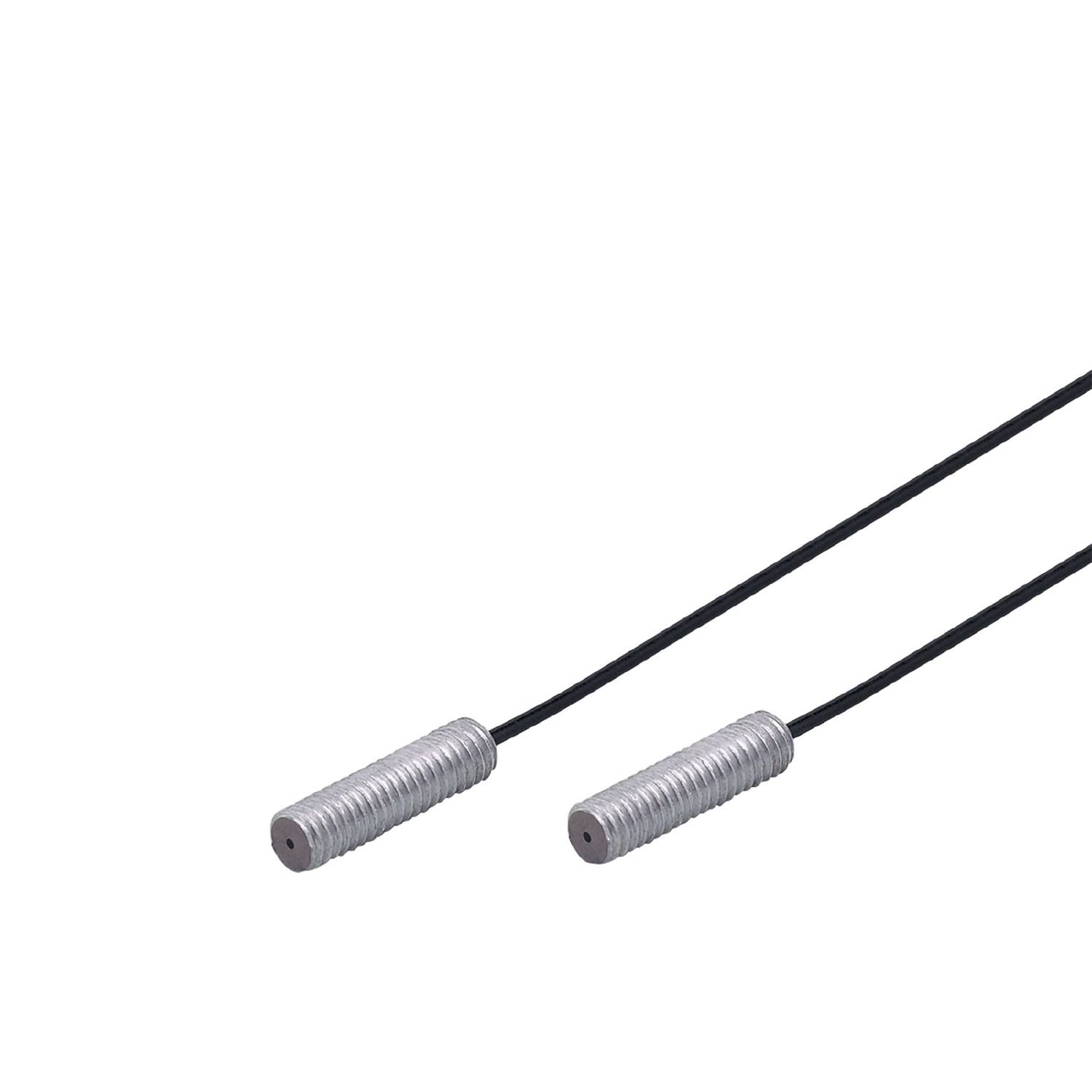

IFM E20612 - Fibre optic through-beam sensor FE-11-EPA-M4/F1X0,5/2M

For installation in places where access is difficult.
Operation as through-beam sensor.
For use at short range.
For cutting to size.
Very small bending radius

Function principle	Through-beam sensor
Application	Small bending radius

Detection zone

Range with fibre-optic amplifier type	OB50; OBF; OCF; OO50

Range of fibre optics [mm]	60

Range of fibre optics [mm]	130

Range of fibre optics [mm]	540

Range of fibre optics [mm]	160

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	35
Version of sensing head	straight
Sensing head thread	M4
Sensing head length [mm]	15
Total length [mm]	2000
Min. bending radius [mm]	10
Fibre arrangement
Core diameter [mm]	0.5
Fibre material	PMMA
Fibre head material	aluminium
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 4 x M4 tooth lock washers: 4 Adapter: OBF Adapter: OOF
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
