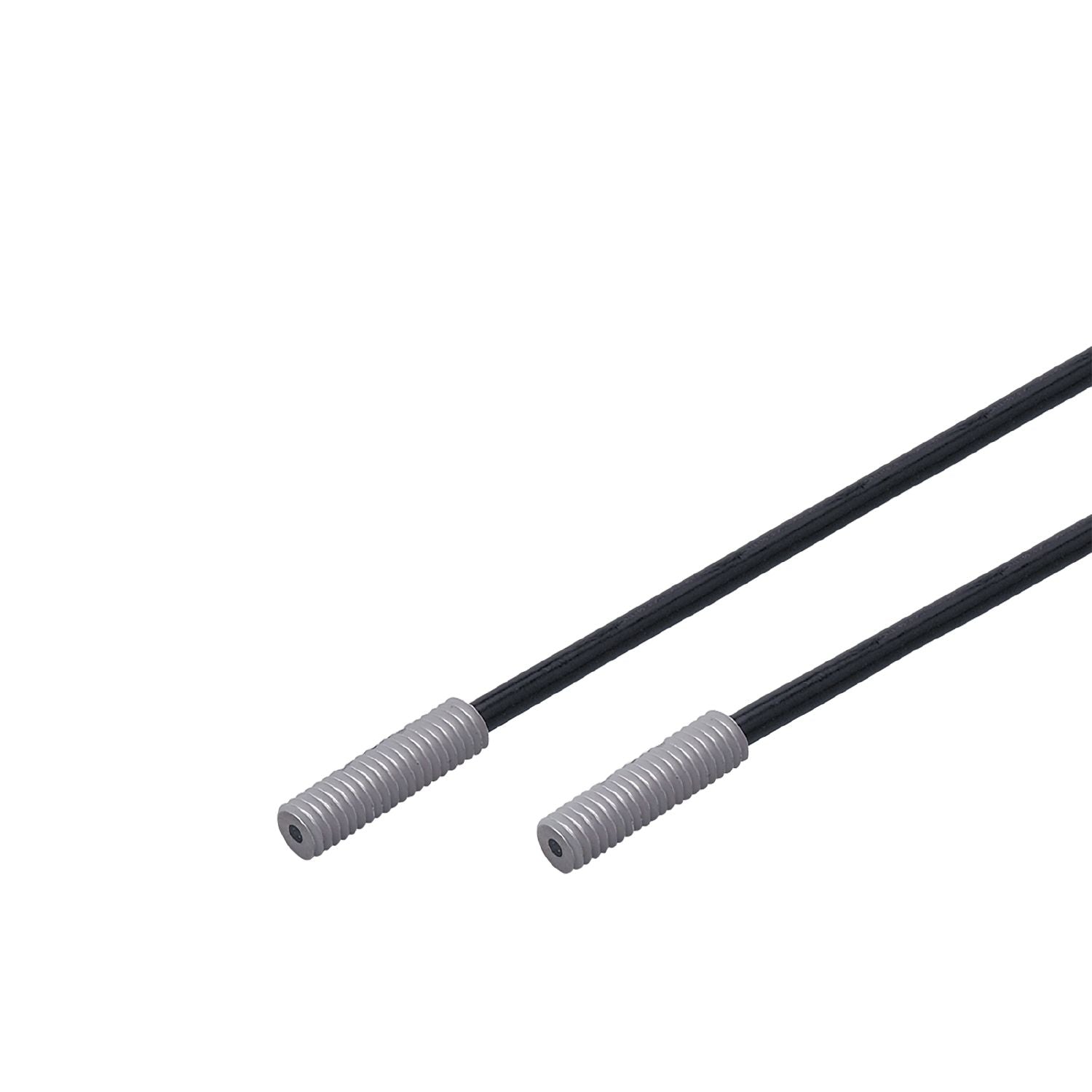

IFM E20615 - Fibre optic through-beam sensor FE-11-EPA-M4/F16X0,265/2M

For installation in places where access is difficult.
Operation as through-beam sensor.
Long range.
For cutting to size.
Small bending radius

Function principle	Through-beam sensor
Application	Small bending radius

Detection zone

Range with fibre-optic amplifier type	OB50; OBF; OCF; OO50

Range of fibre optics [mm]	150

Range of fibre optics [mm]	210

Range of fibre optics [mm]	2590

Range of fibre optics [mm]	800

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	47
Version of sensing head	straight
Sensing head thread	M4
Sensing head length [mm]	15
Total length [mm]	2000
Min. bending radius [mm]	9
Fibre arrangement
Core diameter [mm]	16 x 0.25
Fibre material	PMMA
Fibre head material	aluminium
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 4 x M4 tooth lock washers: 4
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
