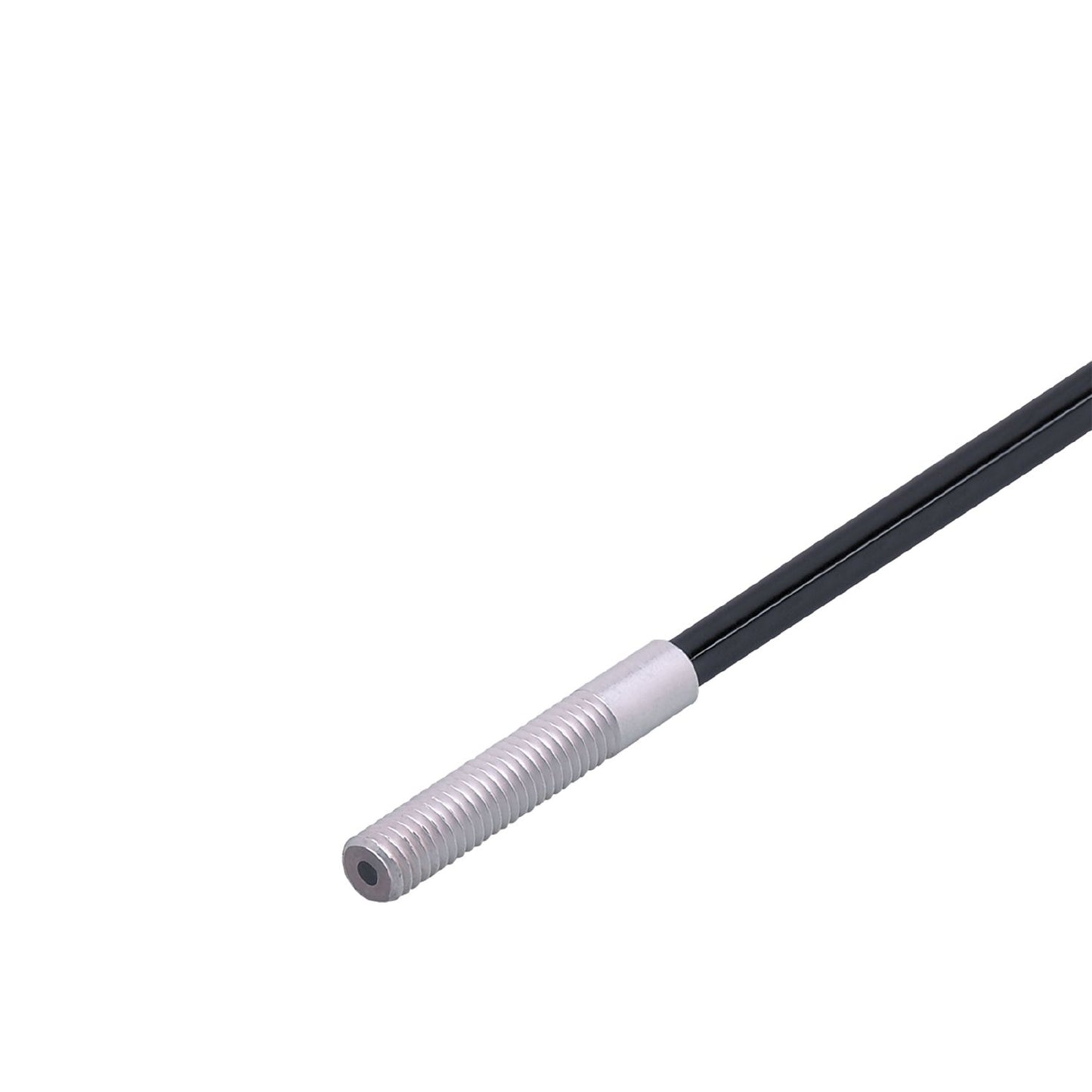

IFM E20633 - Fibre optic diffuse reflection sensor FT-11-EPA-M6/F2X1/2M

For installation in places where access is difficult.
Operation as diffuse reflection sensor.
For use at short range.
For cutting to size.
Very small bending radius

Function principle	Diffuse reflection sensor
Application	For use in industrial environments

Detection zone

Range with fibre optic amplifier type	OB50; OBF; OCF; OO50

Range fibre optics [mm]	70

Range fibre optics [mm]	100

Range fibre optics [mm]	630

Range fibre optics [mm]	300

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	48.5
Version of sensing head	straight
Sensing head thread	M6
Sensing head length [mm]	35
Total length [mm]	2000
Min. bending radius [mm]	30
Fibre arrangement
Core diameter [mm]	2 x 1
Fibre material	PMMA
Fibre head material	aluminium
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 2 x M6 (3,1 mm), stainless steel tooth lock washers: 2
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
