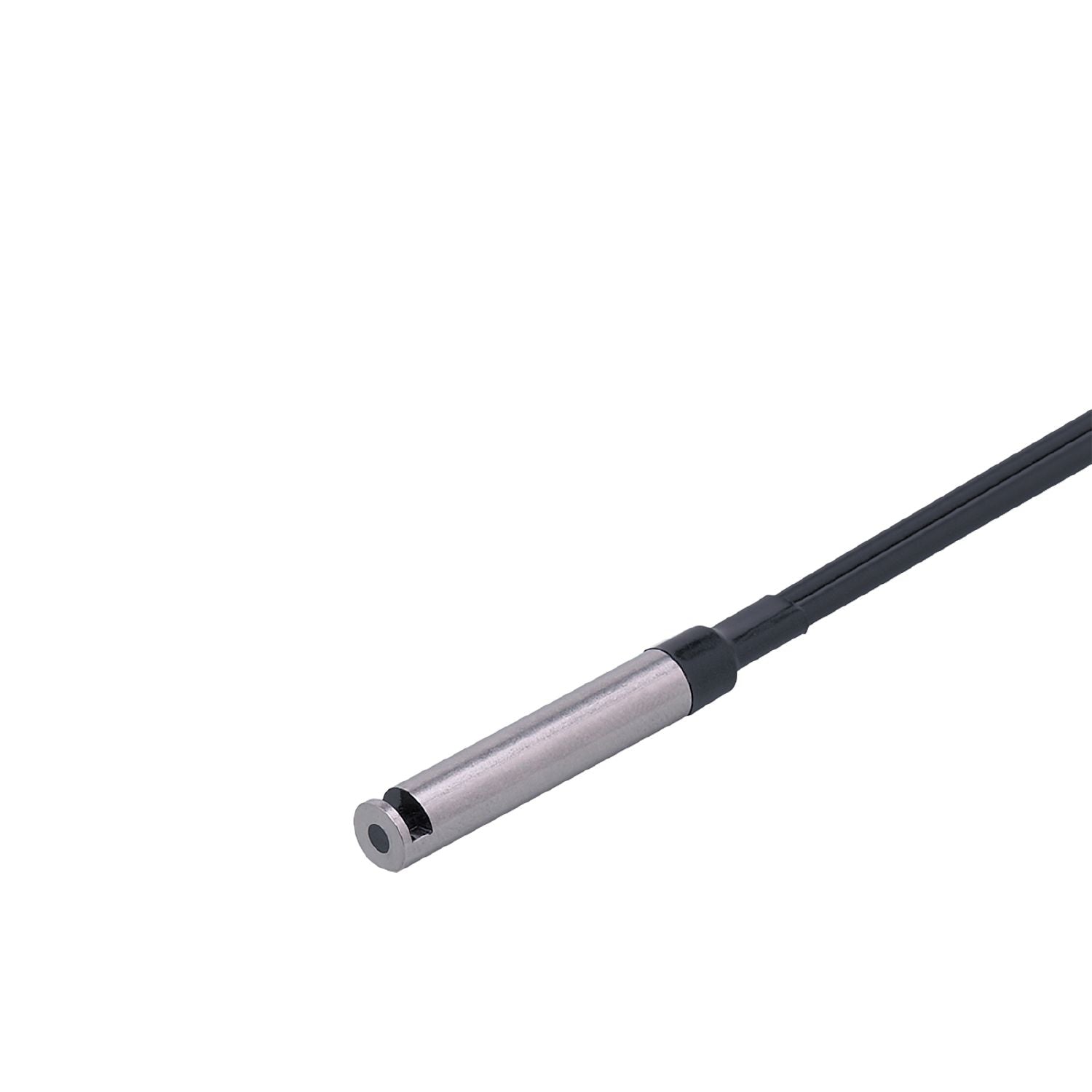

IFM E20715 - Fibre optic diffuse reflection sensor FT-11-E-V-E6R/2m

For installation in places where access is difficult.
Operation as diffuse reflection sensor.
With 90° deflection of the light beam for use where space is restricted.
For cutting to size.
Small bending radius

Function principle	Diffuse reflection sensor
Application	For use in industrial environments

Detection zone

Range with fibre optic amplifier type	OB50; OBF; OCF; OO50

Range fibre optics [mm]	40

Range fibre optics [mm]	60

Range fibre optics [mm]	420

Range fibre optics [mm]	150

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	52
Version of sensing head	angled
Sensing head diameter [mm]	6
Total length [mm]	2000
Min. bending radius [mm]	25
Fibre arrangement
Fibre material	PMMA
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	PE

Accessories

Items supplied	E20103

Pack quantity	1 pcs.
