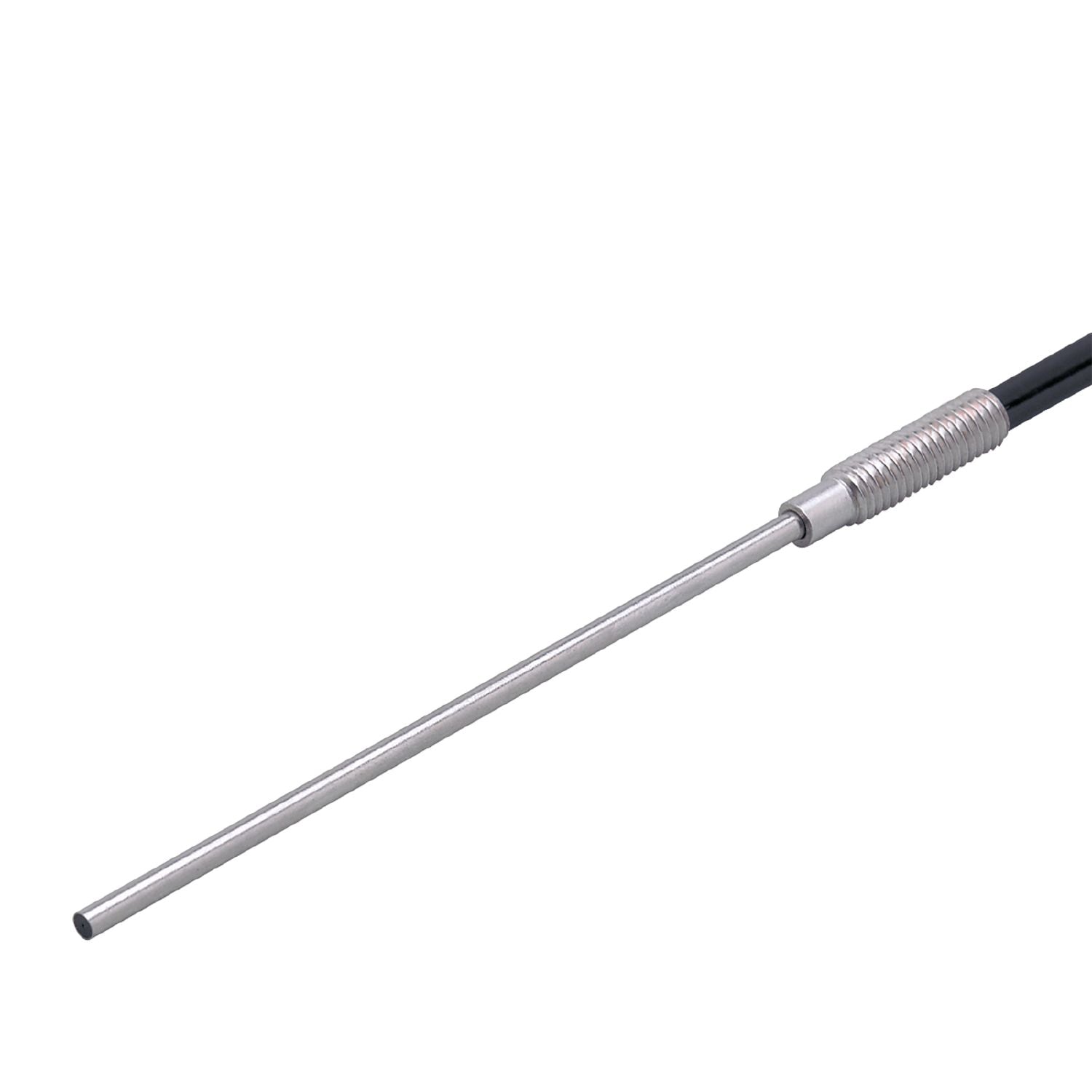

IFM E20749 - Fibre optic diffuse reflection sensor FT-11-EPA-M6/F2x1,0/2M

For installation in places where access is difficult.
Operation as diffuse reflection sensor.
With bendable sensing head for use where space is restricted.
For cutting to size.
Small bending radius

Function principle	Diffuse reflection sensor
Application	For use in industrial environments

Detection zone

Range with fibre optic amplifier type	OB50; OBF; OCF; OO50

Range fibre optics [mm]	70

Range fibre optics [mm]	100

Range fibre optics [mm]	560

Range fibre optics [mm]	300

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	49.5
Version of sensing head	bendable
Total length [mm]	2000
Min. bending radius [mm]	27
Fibre arrangement
Core diameter [mm]	2 x 1
Materials	threaded sleeve: brass white bronze coated
Fibre material	PMMA
Fibre head material	stainless steel (1.4301 / 304)
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 2 x M6, stainless steel tooth lock washers: 2
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
