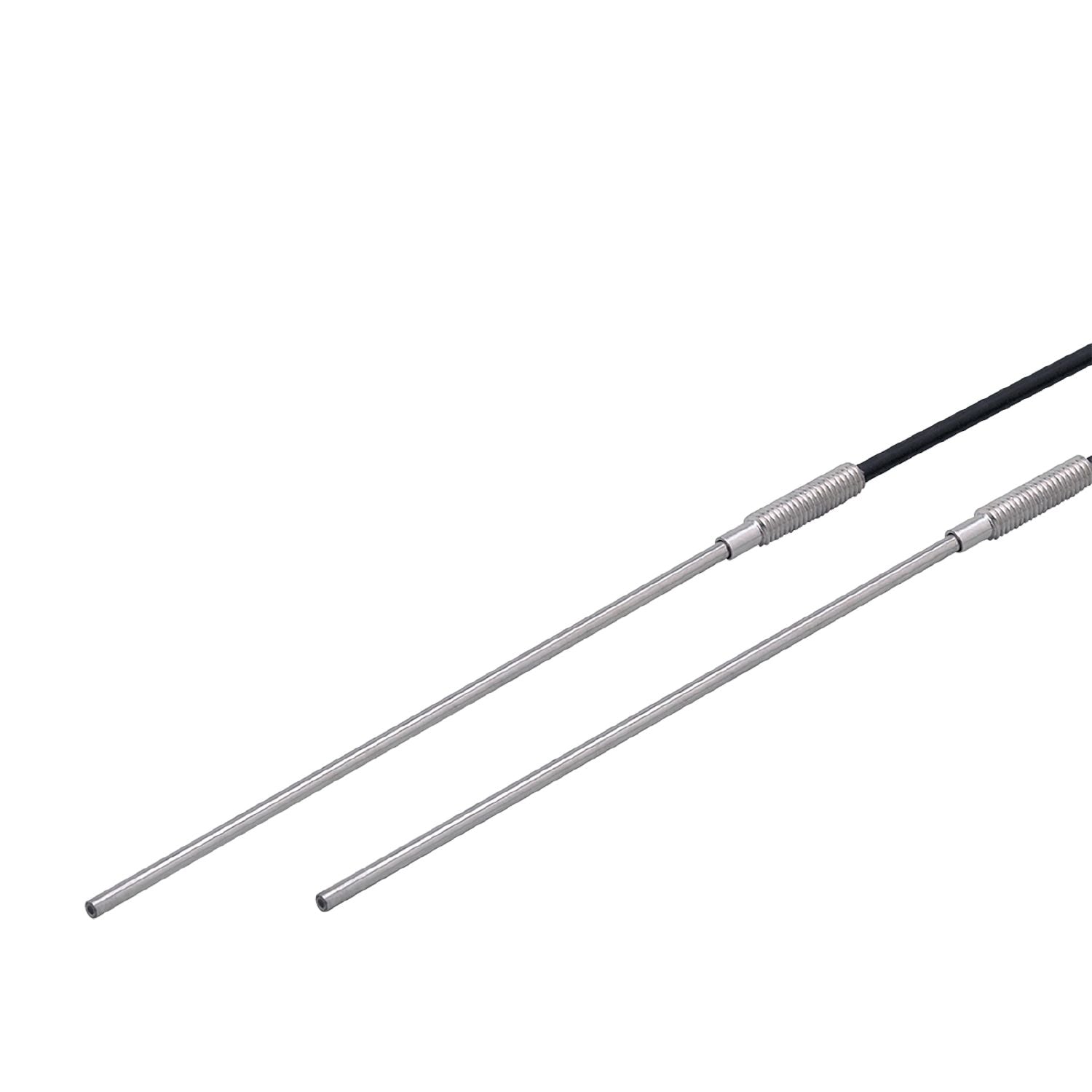

IFM E20750 - Fibre optic through-beam sensor FE-11-EPA-M4/F1x1/2M

For installation in places where access is difficult.
Operation as through-beam sensor.
With bendable sensing head for use where space is restricted.
For cutting to size.
Long range

Function principle	Through-beam sensor
Application	For use in industrial environments

Detection zone

Range with fibre-optic amplifier type	OB50; OBF; OCF; OO50

Range of fibre optics [mm]	200

Range of fibre optics [mm]	450

Range of fibre optics [mm]	2780

Range of fibre optics [mm]	800

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	49.5
Version of sensing head	bendable
Total length [mm]	2000
Min. bending radius [mm]	15
Fibre arrangement
Core diameter [mm]	1
Materials	threaded sleeve: brass white bronze coated
Fibre material	PMMA
Fibre head material	stainless steel (1.4404 / 316L)
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 4 x M4 tooth lock washers: 4
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
