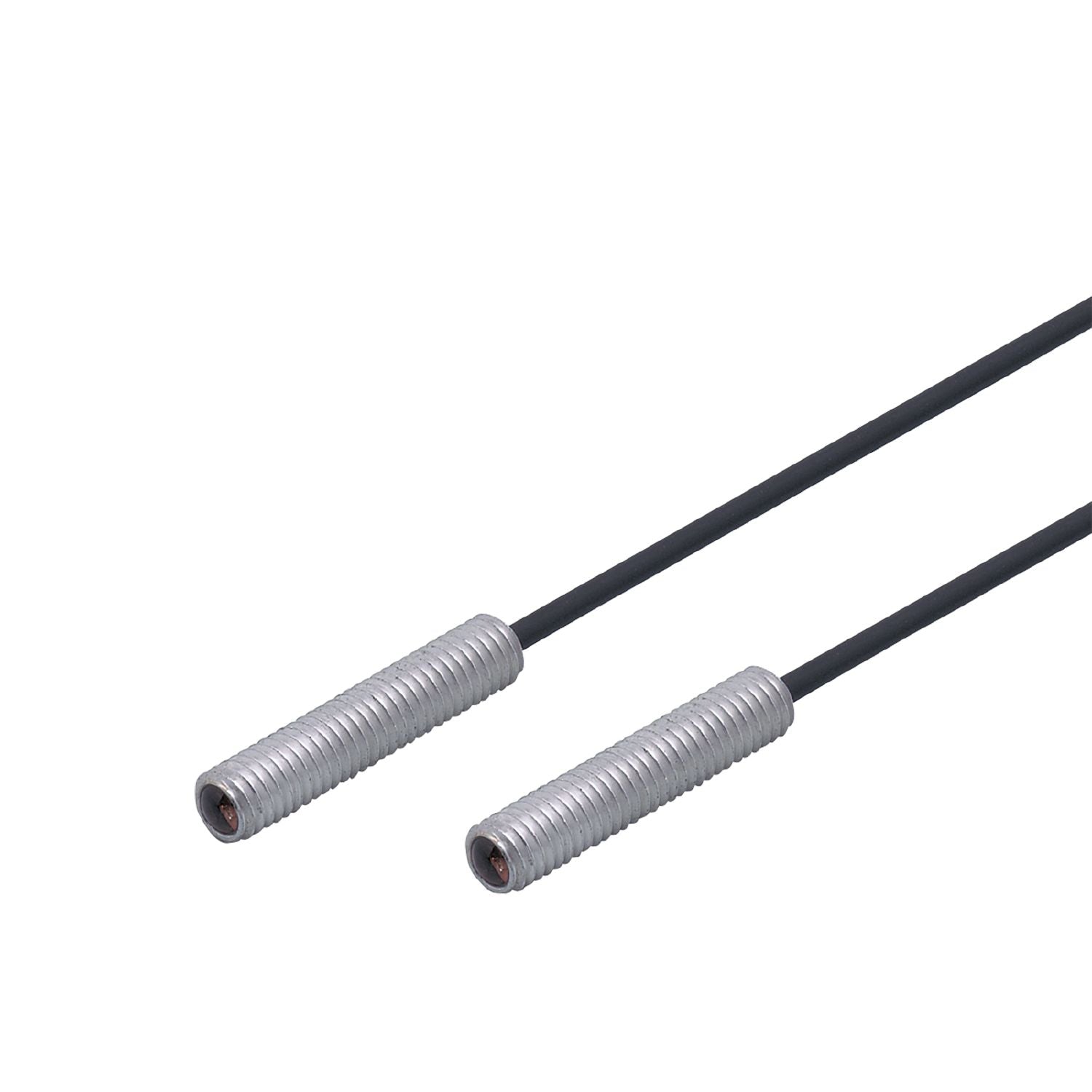

IFM E20752 - Fibre optic through-beam sensor FE-11-EPA-M6/F1x1/2M

For installation in places where access is difficult.
Operation as through-beam sensor.
Very long range.
For cutting to size.
Small bending radius

Function principle	Through-beam sensor
Application	For use in industrial environments

Detection zone

Range with fibre-optic amplifier type	OB50; OBF; OCF; OO50

Range of fibre optics [mm]	1200

Range of fibre optics [mm]	2000

Range of fibre optics [mm]	4000

Range of fibre optics [mm]	3800

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	54.5
Version of sensing head	straight
Sensing head thread	M6
Total length [mm]	2000
Min. bending radius [mm]	30
Fibre arrangement
Core diameter [mm]	1
Fibre material	PMMA
Fibre head material	aluminium
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 4 x M6, stainless steel tooth lock washers: 4
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
